Qts-D Multi Piece Diamond Disc Stone Block Slab Bridge Sawing machine for Cutting Granite Marble Machinery
Shandong Sinohuanuo Machinery Co., Ltd.- Type：CNC Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：QTS-D
- Control：CNC
- Certification：API, CCC, UL
- Transport Package：Standard Export Packing
- HS Code：846410
- Production Capacity：5000sets,Year
Description
model
DTS100-120

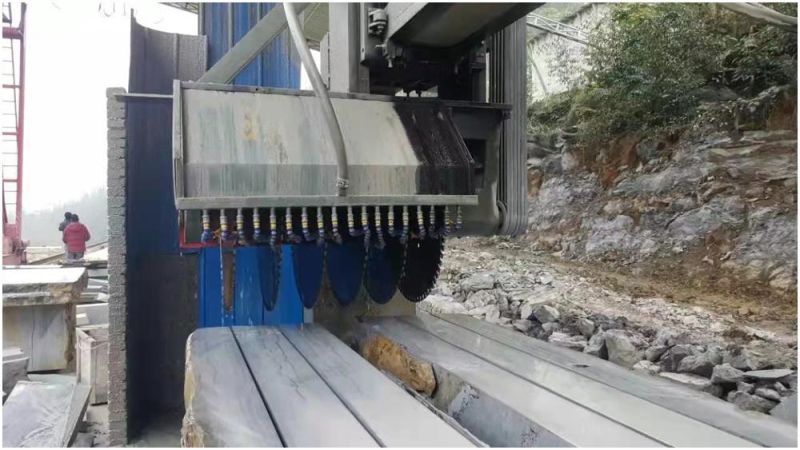

The number of saw blade
6-8 piece
Saw blade diameter
Φ900mm-Φ1200mm
Total power
32.85kw-40.75kw
Overall dimensions
7000(L)×5000(W)×4000(H)mm

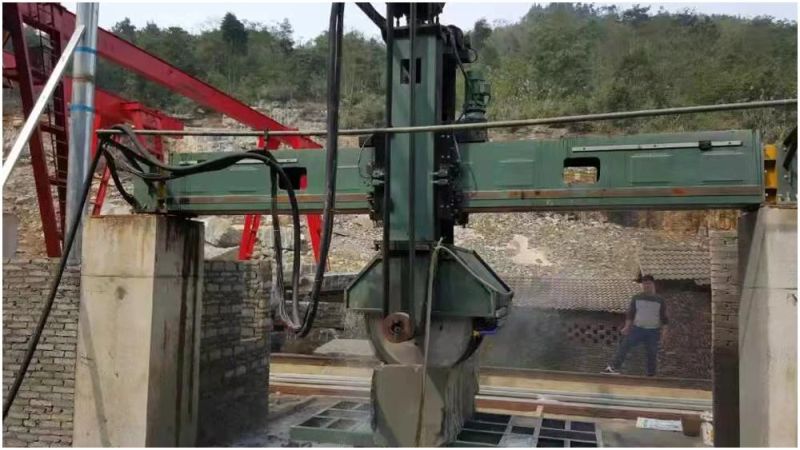

The working principle of the Bridge diamond disc stone sawing machine

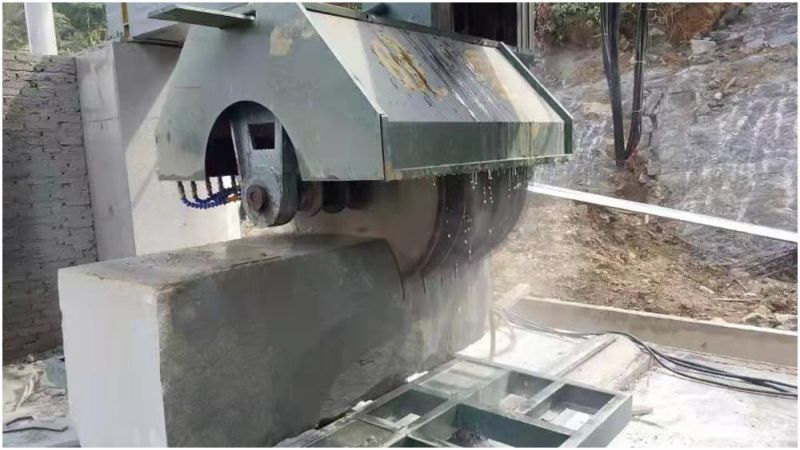

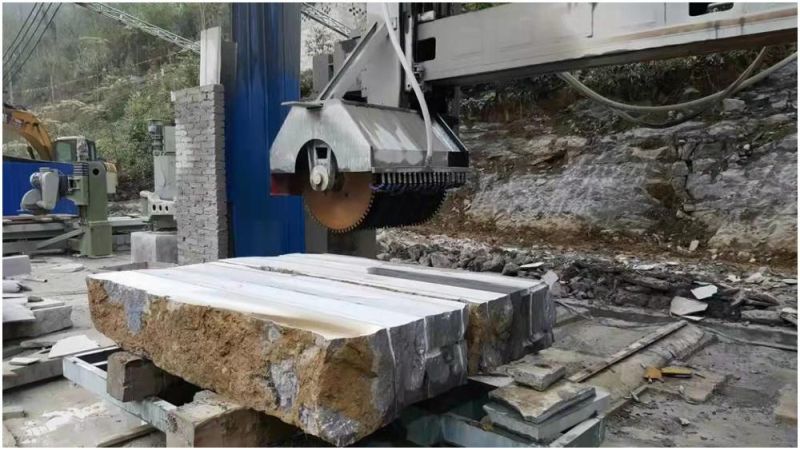

Bridge-type diamond circular saw, the main structure of this type of saw is composed of cross beam and combined trawler system. Longitudinal feed is realized by moving the trawler up and down, trawler moves around the cross beam to realize transverse feed, and main motor drives the saw blade to cut stone. This type of circular saw has simple structure, compact structure and low cost. It has high production efficiency and wide application range. It is a common stone machinery, so it has been widely used in stone industry.
1. Marble granite silica used in cutting machine with various hardness
2. It has the advantages of fast cutting speed, high smoothness and low crushing rate.
3. The trolley can rotate 360 degrees with a load of 20-40T.
4.The main engine adopts oil-diffused swallow-tail structure, variable frequency speed regulation, sliding parts with high-grade wear-resistant materials walk smoothly and durably.
5.Users can choose different control systems to realize intelligent automatic operation of equipment.
FAQ
1.manufacture promise
We are a professional stone machinery manufacturing company.
2.Quality control
Our machines will be strictly inspected and controlled.
3.Packing
Pack the nude with with plastic film and wire fixing.
4.Services
Our marketing team will respond to your questions within 24 hours,technical support is available at any time.
Tips of buying the Bridge diamond disc stone sawing machine
When you need to buy, you can leave a message in the inquiry box below. At the same time, if you don't know how to judge the number of saw blades you buy, you can leave your specific situation behind. We will provide corresponding solutions according to your situation.
