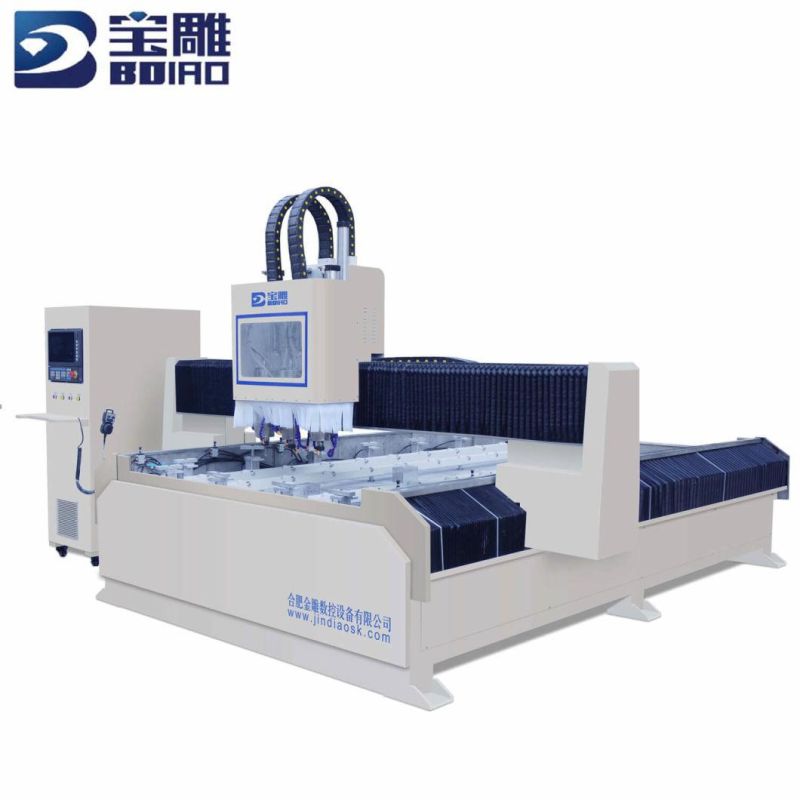

Tool Change CNC Router Machine/CNC Drilling Machine/Marble CNC Router Machine
Hefei Aquila CNC Equipment Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Stone,Mable,Tile,Granite,Tombstone,Sign Plate
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：BD1630
- Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Control System：Nc Studio Nc65c
- Inverter：Zoncn (Optional with Fuling)
- Suction Cup：6PCS
- Vacuum Pump：1*7.5kw
- Transport Package：Wooden Case Package
- Specification：1600*3000mm
- Trademark：Boiro
- Origin：China
- HS Code：84659900
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. BD1630 Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Control System Nc Studio Nc65c Inverter Zoncn (Optional with Fuling) Suction Cup 6PCS Vacuum Pump 1*7.5kw Transport Package Wooden Case Package Specification 1600*3000mm Trademark Boiro Origin China HS Code 84659900 Production Capacity 300 Sets/MonthProduct Description
Tool change CNC Router Machine/CNC Drilling Machine/marble CNC Router MachineKeywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Technical Paramters:
| Model | BD1630 Double Processes Stone CNC Router |
| Working area | 1600mm*300mm*300mm |
| Machine size | 3300mm* 3680mm*200 |
| Working accuracy | ±0.08mm |
| Re-positioning accuracy | ±0.05mm |
| Spindle Motor Power | 5.5KW water cooled |
| Spindle Rotational Speed | 8000-10000r/min |
| Oil System | Automatic Oil system |
| Suction Cup | 6 pcs |
| Table | Aviation aluminum plate + engineering plastic table top |
| Vacuum Pump | 7.5kw |
| Electric Appliance | Germany Schneider |
| Reducer | Planetary reducer |
| Hand Wheel | Electronics Hand Wheel |
| Guide Rail | Taiwan imported linear guide rail PMI |
| Drive System | X/Y axis helical rack & pinion, Z axis Taiwan ball screw |
| Drive Motor | Stepper motor (Servo motor is optional) |
| Inverter | Fuling/ Zoncn |
| Dictate Format | G-Code / HPGL |
| Working Voltage | AC380V 3PH 50HZ |
Applicable Scope:

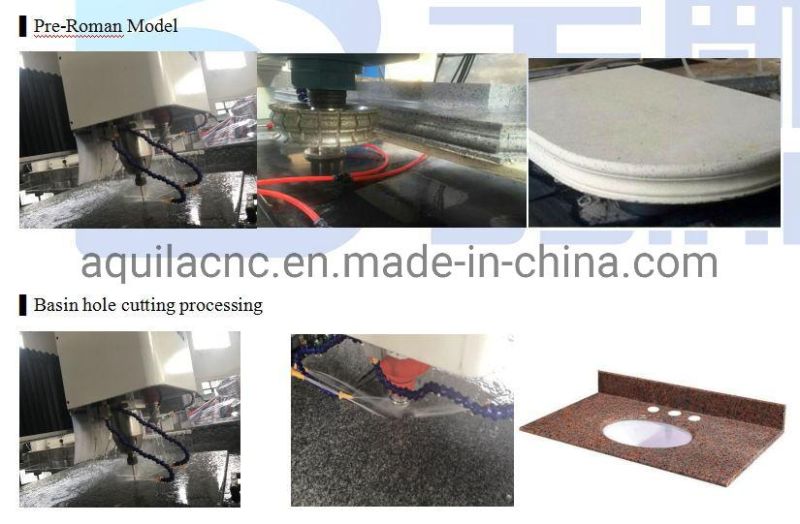

Suitable for artificial stone, quartz stone, marble countertops and wash basins, tea tray carvings, European style edging, and other heterosexual stone, ceramic, glass and microcrystalline stone drilling, sanding, chamfering, engraving and so on.
