• Model NO.：pyb
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Intermediate Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-850tph

Overview Product Description

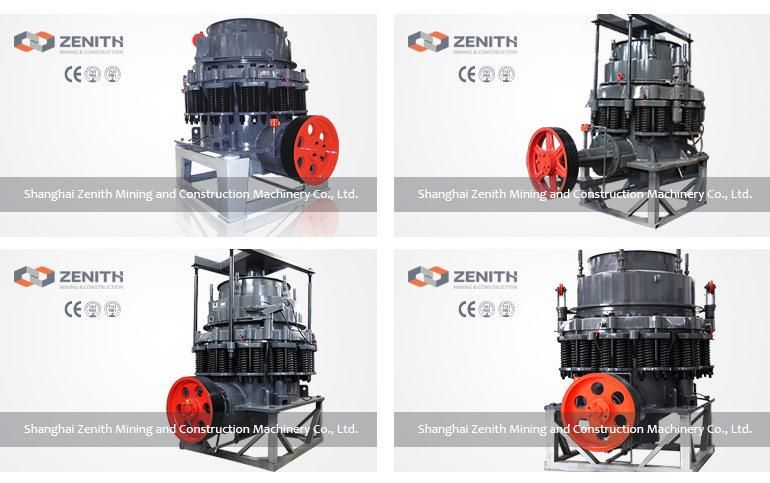

Hot sale pyb 900 cone crusher, Stone Spring Cone Crushing machine



pyb 900 cone crusher and spring cone crusher is suitable to crush all kinds of ores and rocks with medium hardness and above. It has features of reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and soon. Spring system plays the role of overload protection, which will enable the exotic materials or steel piece to pass through the crushing chamber without any damage to the machine. It adopts grease seal to isolate dust and lubricants, therefore ensure its reliable operation. According to customer demand, respectively, using standard type, medium type and short head type for coarse crushing, medium crushing and fine crushing operation.

pyb 900 cone crusher Working Principle:

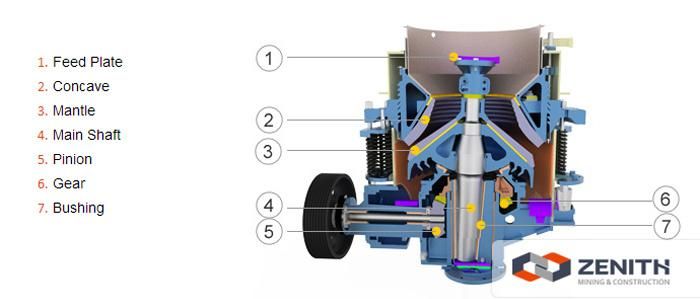

During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.


pyb 900 cone crusher Features:

1.Reasonable design, low consumption;
2.Manifold crushing cavity, flexible application
3.Hydraulic pressure cavity clearing, high autoimmunization and less stop production and repairing time.
4.Spring insurance protection system
5.Laminated crushing, better finished product shape
6.Adoption of grease sealing increases the service life
7.High efficiency, high handling capacity.

pyb 900 cone crusher Applications:

This kind of pyb 900 cone crusher can be extensively used in metallurgical industry, building industry, road construction industry, chemical industry, diluted hydrochloric acid industry and are suitable for crushing hard and mid-hard ores and rocks, such as iron ore, copper ore, lime stone, quartz, granite and sandstone.


pyb 900 cone crusher Specification Chart In Open Circuit (STANDARD):
ModelCavityRecommended Minimum Discharge Setting A (mm)Feed Opening With Min.Recommended Discharge Setting A(mm)Capacities In Tons Per Hour Passing Through The Crusher At Indicated DischargePower(KW)Opening Side"B"Closed Side"B"36" (3')Fine91028345-9375Coarse1317515959-165Extra Coarse25178163129-19851" ( 4.25' )Fine13137109106-183185Medium16210188132-304Coarse19241216171-349Extra Coarse25259238230-45066" ( 5.5' )Fine15209188180-324240Medium22241213252-437Coarse25269241299-634Extra Coarse38368331431-68084" ( 7' )Fine19278253381-1028400Medium25334303605-1284Coarse31369334786-1450Extra Coarse38460425886-1637

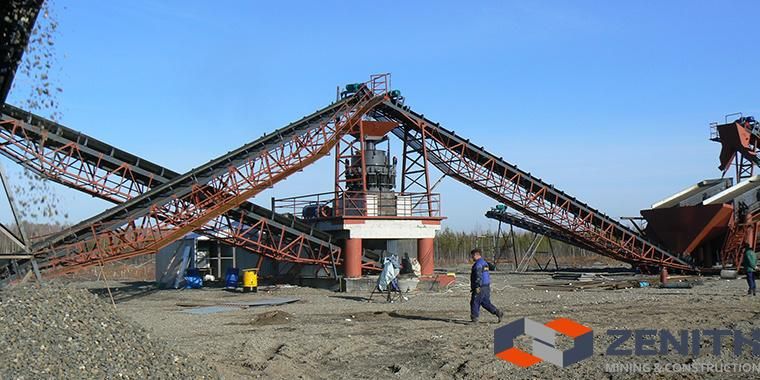

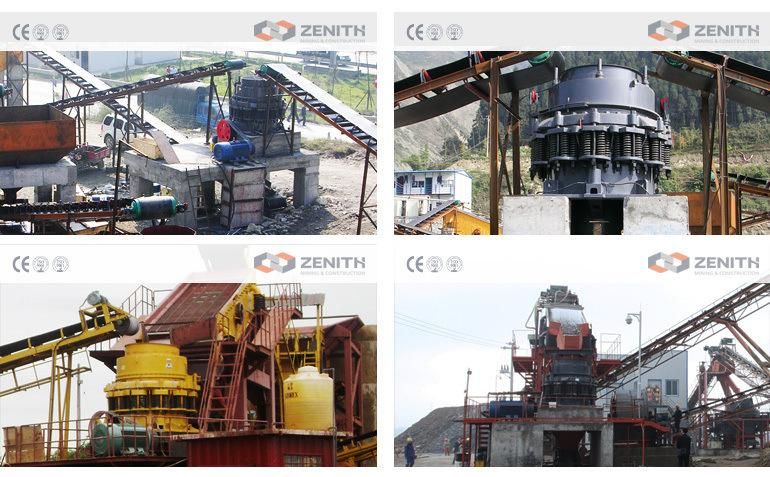

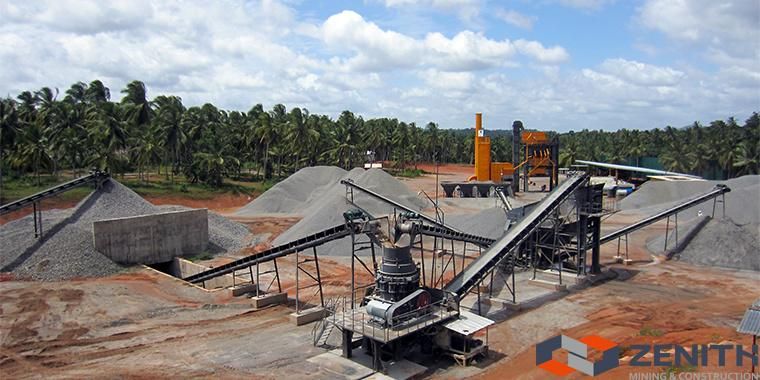

 Customer's site



FAQ

Q1: Are you factory or trade company?

A1: We are factory with CE&ISO.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?Our senior engineer will supply installation and training service on-line or on-site .

Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price .

Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.

Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email, our sales manager will contact you within 1 hours .
