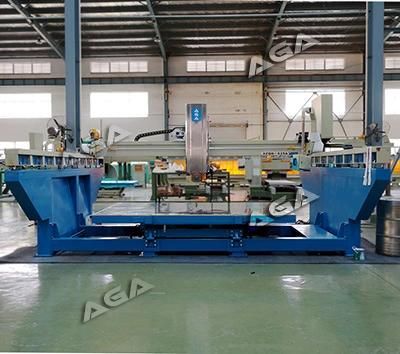

Laser Bridge Saw Machine for Granite Countertop Kitchen Top Tile Fits All Stone (XZQQ625A)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Laser Cutting Machine
- Usage：Granite, Marble
- Source Voltage：380V
- Automation：Automatic
Base Info
- Model NO.：XZQQ625A
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE
- Spindle Motor：15kw, 20HP
- Max. Blade Size：Diameter 625mm
- Table Size (L*W)：3200*2000mm
- Table Rotation：Any Position
- Blade Tilting：0-45°
- Transport Package：Plastic Packing
- Specification：6*5*2.6 m
- Trademark：AGA
- Origin：China
- HS Code：84641010
- Production Capacity：50sets,Month
Description

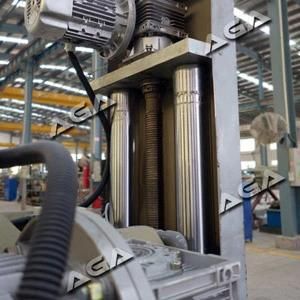

1) The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails. 2) It adopts a solid chrome-plated four guide column with a smooth surface and rust resistance. internal oil-immersed lubrication, waterproof and dustproof, and durable. Only the fully sealed guide column and guide sleeve structure can be oil-immersed. Most of the guide column(old model) on the market adopt hollow structure, which has poor material properties and poor sealing performance and only can be lubricated with butter. The stone-cutting process is easy to stick with the butter, affecting the lubrication, the guide column is easy to be worn, and the failure rate is high.

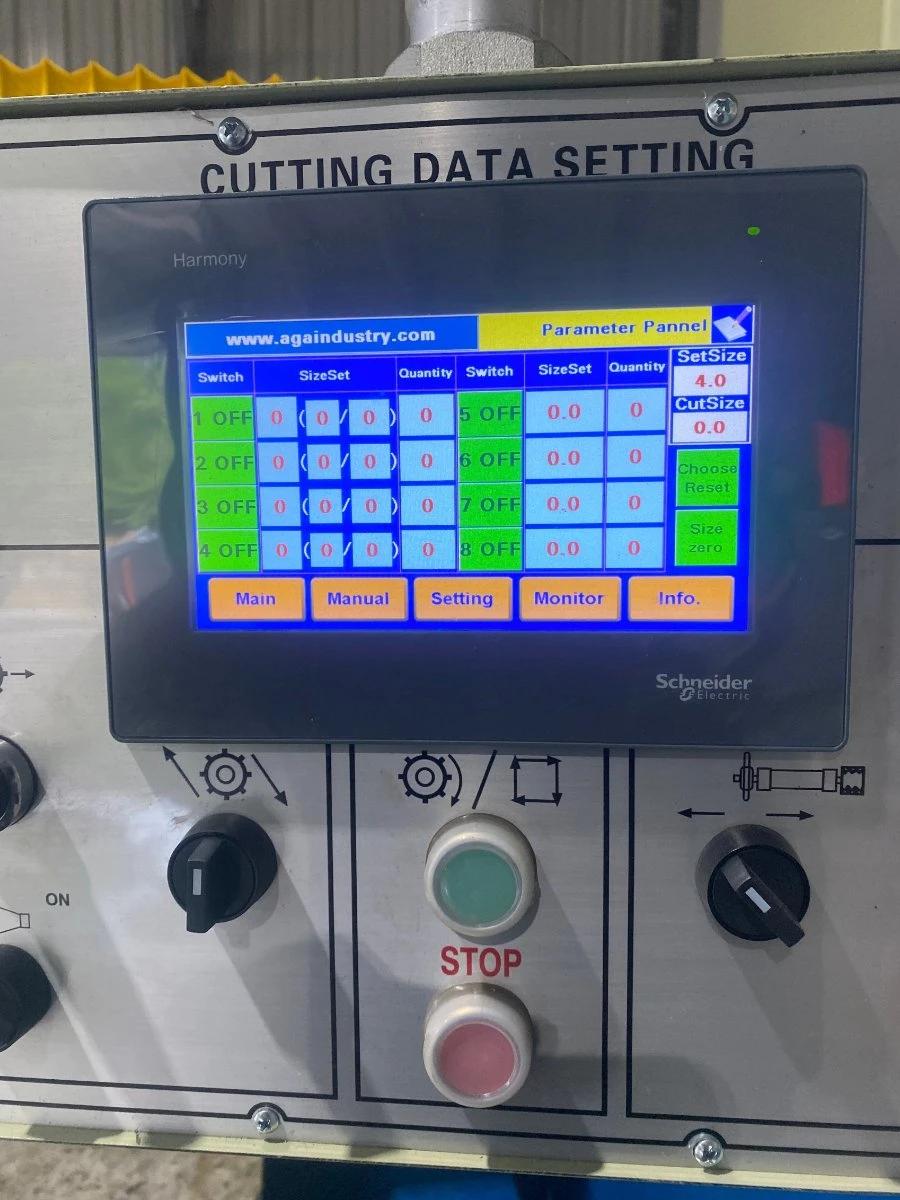

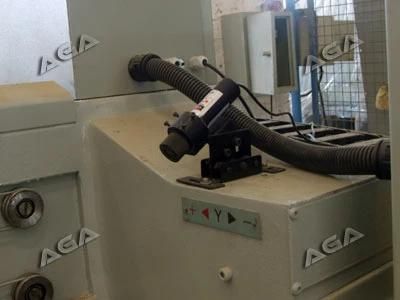

3) The laser guide and sensors gives high accuracy for the machining tolerance. 4) Operation interface combined of human-computer interface and mechanical button, very easy operating, cutting head can be control by cross command switch by hand, real time data display on screen.Wireless remote provides ease control of the saw.
The touch screen adopts Chinese,English operation interface, Suitable for most countries and regions.(Customizable)
Worktable&blade part

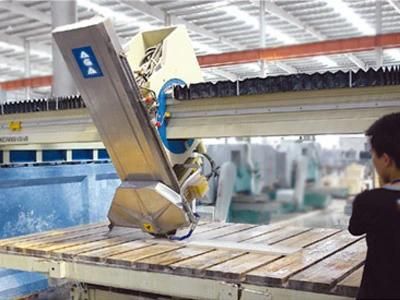

5) The worktable is welded by high-strength national standard profile, which has high seismic and compressive strength, high safety factor and good integrity. Most of the peers use a small piece of splicing, which is only spliced at the position where the roller slides, which is extremely unstable.6) Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts. Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.
7) Functions
1. Cutting slabs intor various sizes of tiles/cut-size;

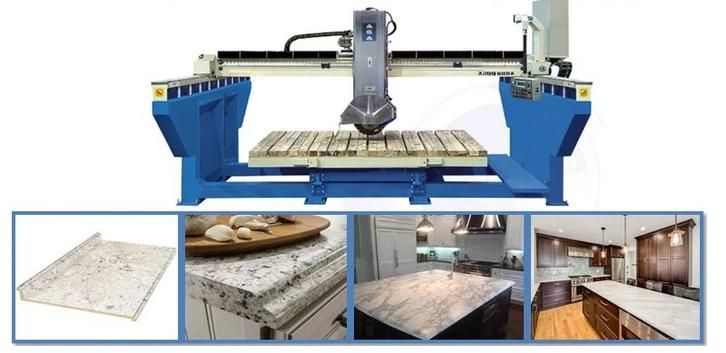

2. Processing slabs,tiles,kerbstone,pavingstone, kitchen counter-tops, vanity-tops, monument,fireplaces, shower surrounds, stair, windowsill ... ect.
Spesification:
| Blade size | 400-625mm 16"-25" |
| Cut length | 3200mm 126" |
| Cut width | 2000mm 78" |
| Cut thick | 170mm 7" |
| Blade tilt | 0 - 45° |
| Table rotate | 0 - 360° |
| Table tilt | 0 - 85° |
| Spindle motor | 15kw 20HP |
| Size (L×W×H) | 6×5×3 m |
| Weight | 7200kg 16000lbs |
Keywords:
Kitchen top Cutting Machine, Kitchen top Bridge Saw, Kitchen top Tile Cutter, Kitchen CNC Machine, Granite Marble Quartz Bridge Saw

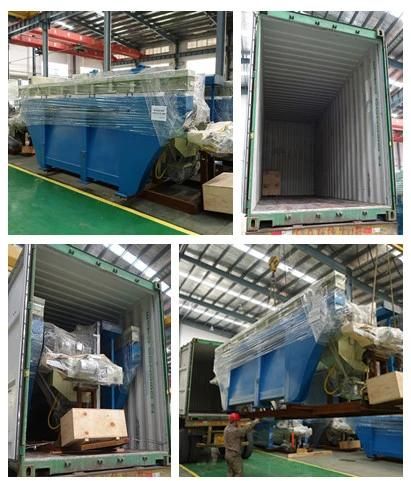

Packing
Related machine
Guarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.
