• Model NO.：G-2500
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：CE, SGS
• Main Motor Power：110kw
• Blade Quantity：110-130 PCS
• Cutting Material：Natural Marble, Artificial Marble Block
• Case：China, Iran, Turkey, Oman, Vietnam,etc
• Transport Package：2*40 Op Container,Set
• Specification：3200(L)*2500(W)*2050(H)
• Trademark：Eaststar
• Origin：Quanzhou, China
• HS Code：846410
• Production Capacity：50-1000mm, Hour

Basic Info.

Model NO. G-2500 Automation Automatic Cutting Ability High Speed Control CNC Certification CE, SGS Main Motor Power 110kw Blade Quantity 110-130 PCS Cutting Material Natural Marble, Artificial Marble Block Case China, Iran, Turkey, Oman, Vietnam,etc Transport Package 2*40 Op Container/Set Specification 3200(L)*2500(W)*2050(H) Trademark Eaststar Origin Quanzhou, China HS Code 846410 Production Capacity 50-1000mm/ Hour

Product Description

Eaststar Marble Gang Saw with the best quality and good structures, The structure of eaststar gang saw with a middle connecting beam is connected with four vertical columns to ensure the maximum stability and the sustained mechanical pressure in the intensity-resisting operation process. Only one accurate and precision optimal solution for acceleration is to make connecting rods move horizontally together with saw blades along one axis. This means that mechanical thrust is centralized in the same direction, and is not dispersed to other directions. Marble blocks are fixed on a lifting platform. The lifting platform operates on two flat and two rhombus vertical guide rails. The flat and rhombus rails prevent the vertical surface from being deviated or inclined. An encoder controls the horizontal surface of the lifting platform.
Our gang saw with high capacity, the cutting speed can be 50-1000 mm/ hour.(Depend on stone type). Our after sale service team provide service 24 hours, with after sale office in Shengyang, Anhui, Guangxi, and oversea countries like,Vietnam, India , Turkey.

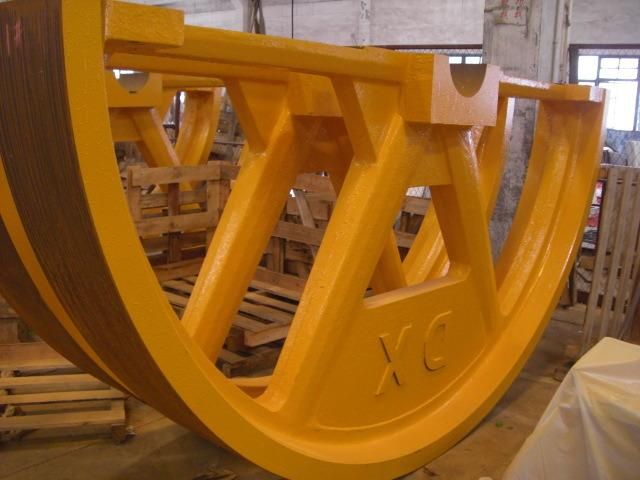

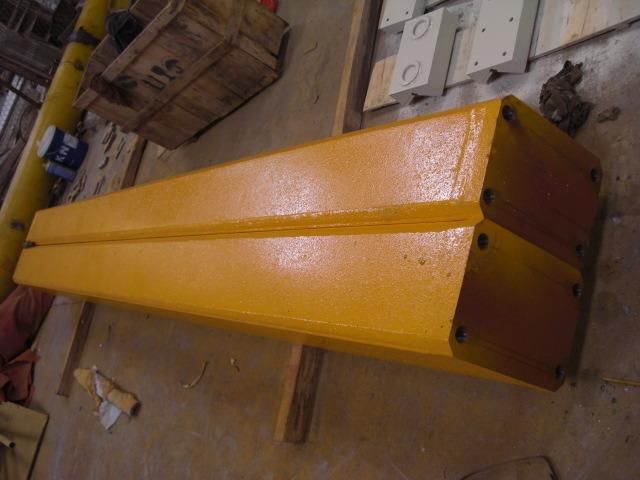

As a professional stone machine manufacturing enterprise with SGS certificate, eaststar gang saw manufacture in one completed steel piece instead welding two part, make sure the good function and safety,The beam casting by completed mould,The big wheel of gang saw we use stable structure,and compose two semicircle together. widely running in global stone enterprise, such as Turkey, Iran, vietnan, Oman, Brazil, etc.
You are wamly welcome to inspect our factory loacated in China biggest stone industry zone-Shuitou town, only 40 km from Xiamen airport.

Technical parameters

Model No.	Unit	G-2000	G-2250	G-2500
Max. cutting block size	mm	3200(L) 2000(W) 2050(H)	3200(L) 2250(W) 2050(H)	3200(L) 2500(W) 2050(H)
Main motor power	kw	110	110	132
Auxiliary motor power	kw	18	18	18
Water consumption	L/Min/PCS	10	11	13
Blades length	mm	4400(or 4350)X(≥1.5)	4400(or 4350)X(≥1.5)	4400(or 4350)X(≥1.5)
Cutting speed	mm/h	50-1000	50-1000	50-1000
Working stroke of blade	mm	800	800	800
Blades	PCS	90-100	100-120	110-130
Dimension	mm	12425(L) 4700(W) 3800(H)	12425(L) 4950(W) 3800(H)	12425(L) 5200(W) 3800(H)
Weight	Ton	55	58	60

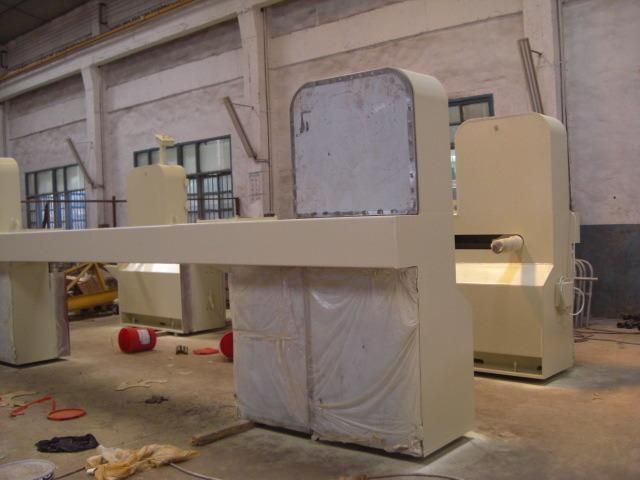

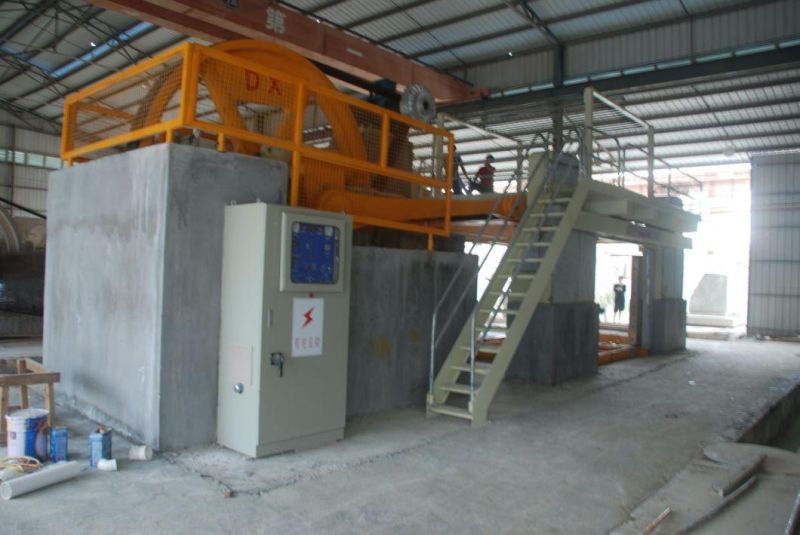

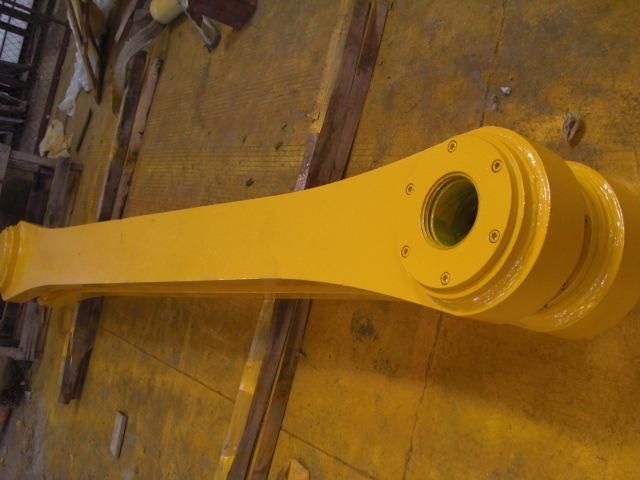

Manufacturing Factory photo :
