• Model NO.：CP90 Marble Granite Paving Stone Stamping Machine
• Source Voltage：380V
• Automation：Manual
• Cutting Ability：Medium Speed
• Certification：CE
• Power：by Electric
• Style：C-Front
• Capacity：20t and 40t
• Fuctions：Stamping,Cutting,Splitting
• Key Word：Stone Cutting Machine
• Transport Package：by Crate

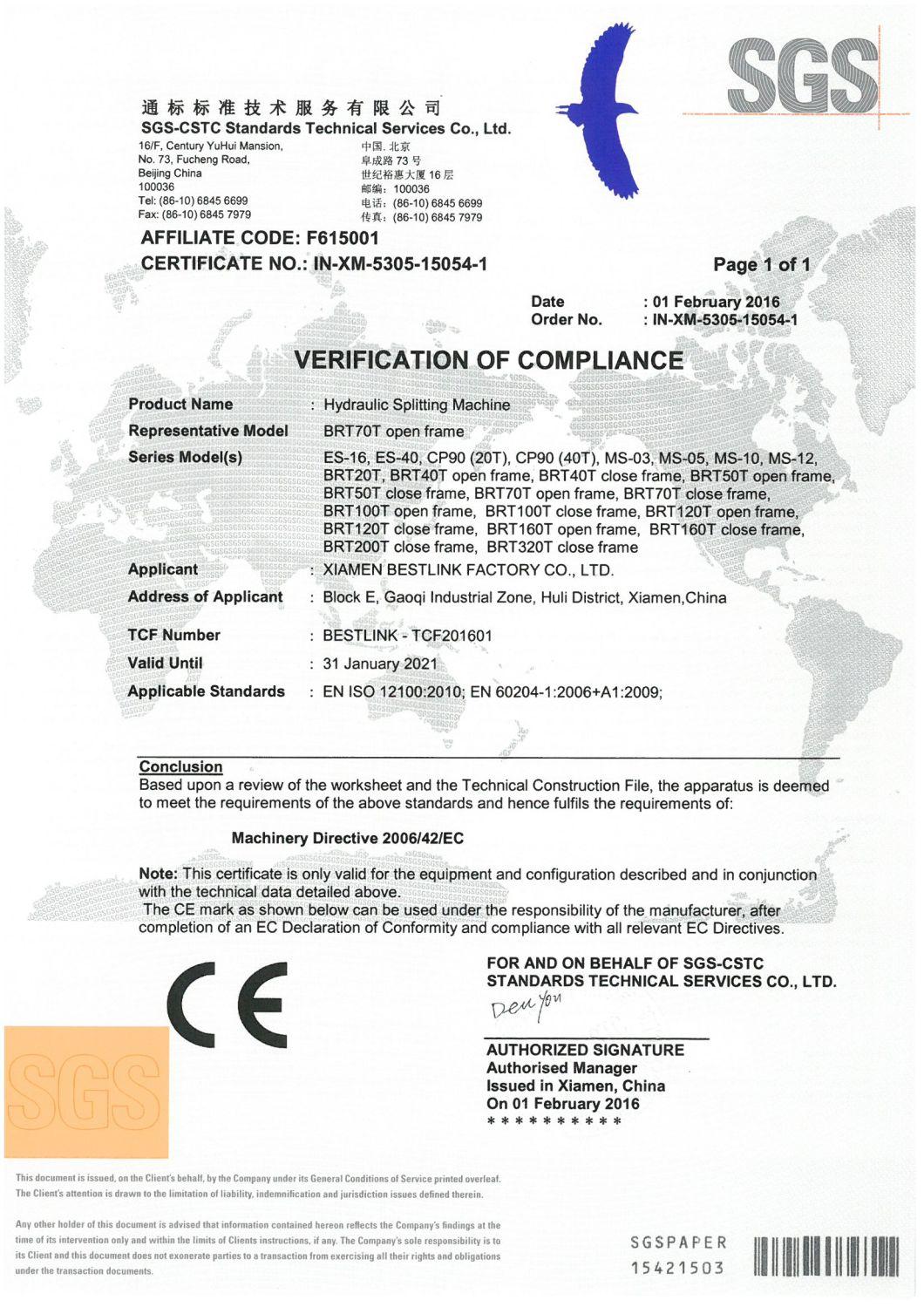

• Specification：SGS
• Trademark：BESLINK
• Origin：Xiamen, Fujian
• HS Code：84791090
• Production Capacity：50,Month

Basic Info.

Model NO. CP90 Marble Granite Paving Stone Stamping Machine Source Voltage 380V Automation Manual Cutting Ability Medium Speed Certification CE Power by Electric Style C-Front Capacity 20t and 40t Fuctions Stamping,Cutting,Splitting Key Word Stone Cutting Machine Transport Package by Crate Specification SGS Trademark BESLINK Origin Xiamen, Fujian HS Code 84791090 Production Capacity 50/Month

Product Description

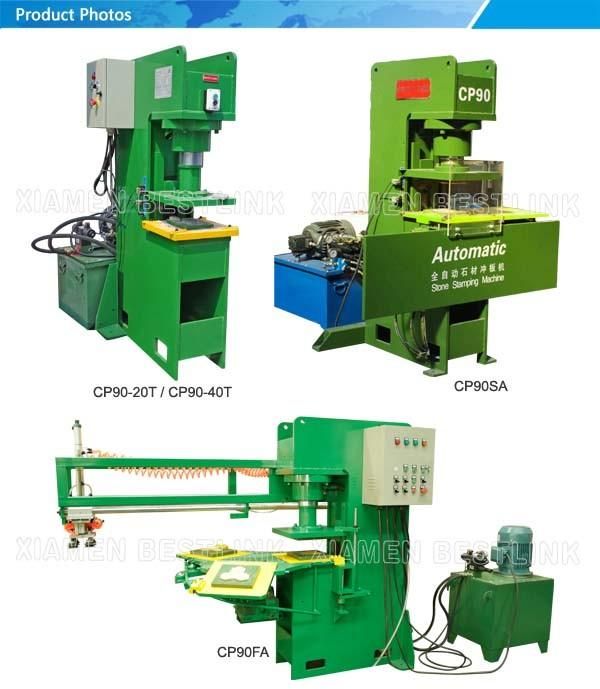

Bestlink CP90 Marble Granite Paving Stone Stamping Machine

Hydraulic stone pressing machine has the advantages of high productivity effect, no need for technicist and low cost. Our hydraulic stone pressing machine has the advantages of high productivity effect, no need for technicist and low cost. The outstanding cost performance and high efficiency of hydraulic stone pressing machine win the trust and reputation from our customers. It is very convenient to start and operation. Electronically-controlled parts with a separate control cabinet, which is controlled by push-button station and button box.

(1) Our machine is constituted of the bed, rub rail, slide carriage, tooth on the top, bottom jaw and hydraulic system, etc.

(2) The bed is welded by the steel plate and integrally annealed after that.

Hydraulic system is made up by the oil box, electric motor, oil pump and different valves. Oil box stores hydraulic liquid. The Hydraulic liquid should be filtered by the 10μm nets. The top of the oil box can be dismantled for clean and the oil drain hole is at the bottom.

Hydraulic Stamping Machine Specification

Model	CP90 (20T)	CP90 (40T)	CP90 (SA)	CP90 (FA)
Hydraulic Pressure	20Mpa	20Mpa	20Mpa	20Mpa
Spitting Power	20T	40T	40T	40T
Electric Motor Power	4kw	7.5kw	7.5kw	9kw
Max Slab stamping size	30*30*3cm	30*30*5cm	30*30*8cm	30*30*8cm
Max splitting Length (cm)	30	35	Semi-automatic	Fully-auto + air compressor
Max splitting height (Cm)	1-5	5-8	1-5	1-8
Machine Size (cm)	80*100*150	80*100*150	80*100*150	230*95*185
Net Weight (kg)	500	580	650	1500
Function	Stamping, cutting, splitting	Stamping, cutting, splitting	Stamping only	Stamping only, consumption 1m3/min
