Stone Crushing Machine Jaw Crusher with Low Price
Mingxin Metallurgy Equipment Co., Ltd.- After-sales Service：Engineer Offer You Guide Installation
- Warranty：12 Month Guarantee
- Type：Jaw Crusher
- Application：Machinery & Hardware, Chemical, Construction, Mineral Industry, Stone Industry
- Drive：Electromagnetic
- Crushing Style：Extruding
Base Info
- Model NO.：PE-500*750
- Compressive Strength (For Crushing)：>300MPA
- Crushing Degree：Coarse Crusher
- Finished Surface：Outer Surface Process
- Certification：CE, ISO, SGS
- Condition：New
- Color：Yellow
- Model：PE Jaw Crusher
- Max Feed Size：400mm
- Discharge Size：50-120mm
- Capacity：30-80
- Power：45kw
- Weight：9000kg
- Transport Package：Nude Pakage or Wooden Box
- Specification：ISO, SGS
- Trademark：MX
- Origin：Jiangxi, China (Mainland)
- Production Capacity：50sets,Month
Description
Overview
1. High reduction ratio and even final particles
2. Simple structure and easy to be maintained
3. Easy replacement of wearing and spare parts
4. Reliable operation and long service life stone jaw crusher price
5. Convenient maintenance and low maintainance charges
6. Wide ranges of products series stone jaw crusher price
Product Description
1. Mining machinery stone jaw crushers can be solely used or in combination with other beneficiation equipment or gravel processing equipment.
2. It is widely used in the departments of mine, smeltery, construction, road, railway, irrigation works and chemical industries, etc. The raw materials can be various medium hard and hard ore, such as ore, quartz, granite, limestone, slags, construction materials, marble, etc..
3. The stone jaw crushers crush all kinds of minerals and rocks with compressive strength less than 320 MPa.
4. There are two types of jaw crusher: Coarse jaw crusher and fine jaw crusher. PE series is used for primary (coarse) crushing, and PEX series is used for secondary crushing and fine crushing.
Working Principle of Stone Jaw Crusher:
By the co-work of eccentric shaft and adjustment setting, the moving jaw makes an arc movement. The space between fixed jaw and moving jaw becomes smaller when the moving jaw plate is closed to fixed jaw plate, then the materials are crushed into pieces. It becomes bigger when the moving jaw leaves the fixed jaw. And then the finished products discharge from the bottom.
Model Feed opening Max.feeding size Outlet size Processing capacity Rotation speed of eccentric shaft Motor power Total weight Dimensions (L×W×H) (mm) (mm) (mm) (t/h) (r/min) (kw) (t) (mm) PE-100×250 100×250 80 5-20 0.5-2 300 1.5 0.23 525×535×605 PE-150×250 150×250 125 10-40 2-6 300 5.5 1.1 875×745×935 PE-200×350 200×350 160 10-50 6-10 300 7.5 1.6 1080×1060×1088 PE-250×400 250×400 200 20-60 8-16 300 15 2.8 1430×1316×1296 PE-400×600 400×600 350 40-100 14-36 275 30 6.5 1700×1732×1656 PE-500×750 500×750 400 50-120 30-80 250 45 9.0 1900×1876×1821 PE-600×750 600×750 500 150-200 80-240 275 55 16.0 2070×2000×1920 PE-600×900 600×900 500 75-200 56-192 250 75 17.5 2280×2245×2320 PE-750×1060 750×1060 630 80-140 110-320 250 110 29.0 2660×2430×2800 PE-800×1060 800×1060 640 130-190 130-330 250 110 30.0 2710×2430×2800 PE-830×1060 830×1060 650 160-220 150-336 250 110 31.0 2740×2430×2800 PE-870×1060 870×1060 660 200-260 190-336 250 110 32.0 2810×2430×2800 PE-900×1060 900×1060 685 230-290 230-390 250 110 33.0 2870×2420×2940 PE-900×1200 900×1200 750 95-165 220-450 200 110 52.0 3380×2870×3330 PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55.0 3480×2876×3330 PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 101.0 4200×3300×3500 PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122.0 5160×3660×4248 PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 151.0 6210×4013×4716 PEX-150×750 150×750 120 10-40 8-25 320 15 2.8 1200×1530×1060 PEX-250×750 250×750 210 20-60 10-45 320 30 5.8 1380×1750×1540 PEX-250×1000 250×1000 210 20-50 15-50 330 37 6.5 1560×1950×1390 PEX-250×1200 250×1200 210 20-60 20-70 330 45 9.0 2140×1660×1500 PEX-300×1300 300×1300 250 20-90 16-105 300 55 16.0 2720×1950×1600
Remarks:
In order to find the suitable models and design the best stone jaw crusher plant or sand making line for
you, pls kindly inform us the following information:
1.Which kind of material you are going to crush?
2.What's the max input size of the material?
3.What's the granularity of the final products you need?
4.What's the production capacity you want? How many tons or cubic meters per hour?
5.You want only a Crusher, or a complete Crushing Production Line?
Product Description
Mining machinery stone jaw crusher specifications
1. High reduction ratio and even final particles
2. Simple structure and easy to be maintained
3. Easy replacement of wearing and spare parts
4. Reliable operation and long service life stone jaw crusher price
5. Convenient maintenance and low maintainance charges
6. Wide ranges of products series stone jaw crusher price
Product Description
1. Mining machinery stone jaw crushers can be solely used or in combination with other beneficiation equipment or gravel processing equipment.
2. It is widely used in the departments of mine, smeltery, construction, road, railway, irrigation works and chemical industries, etc. The raw materials can be various medium hard and hard ore, such as ore, quartz, granite, limestone, slags, construction materials, marble, etc..
3. The stone jaw crushers crush all kinds of minerals and rocks with compressive strength less than 320 MPa.
4. There are two types of jaw crusher: Coarse jaw crusher and fine jaw crusher. PE series is used for primary (coarse) crushing, and PEX series is used for secondary crushing and fine crushing.
Working Principle of Stone Jaw Crusher:
By the co-work of eccentric shaft and adjustment setting, the moving jaw makes an arc movement. The space between fixed jaw and moving jaw becomes smaller when the moving jaw plate is closed to fixed jaw plate, then the materials are crushed into pieces. It becomes bigger when the moving jaw leaves the fixed jaw. And then the finished products discharge from the bottom.
Product Parameters
Techinical parameters of stone jaw crucher

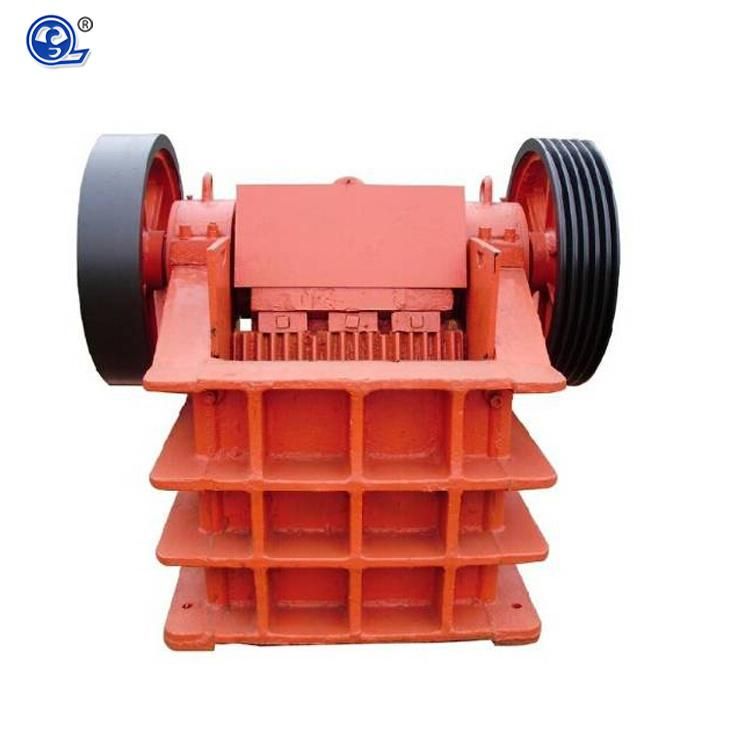

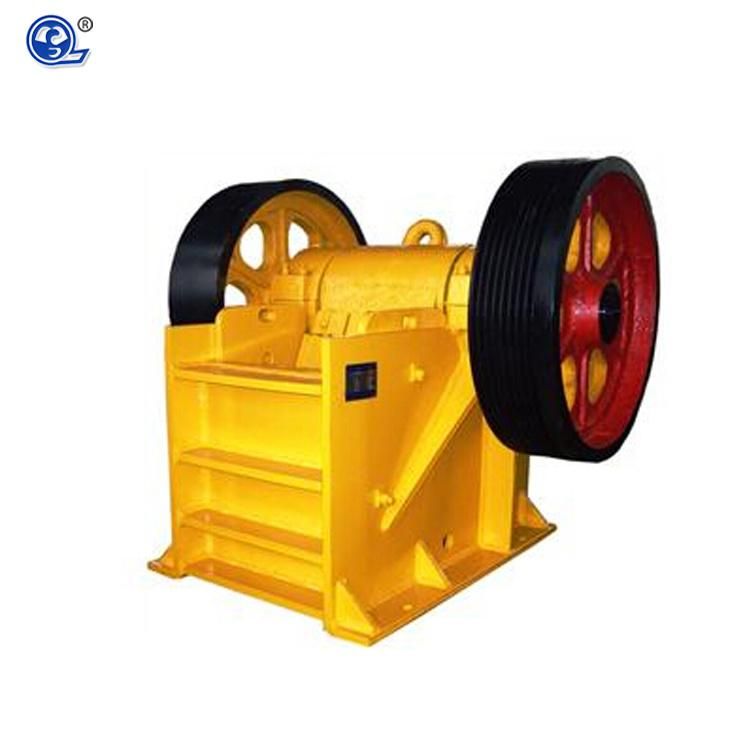

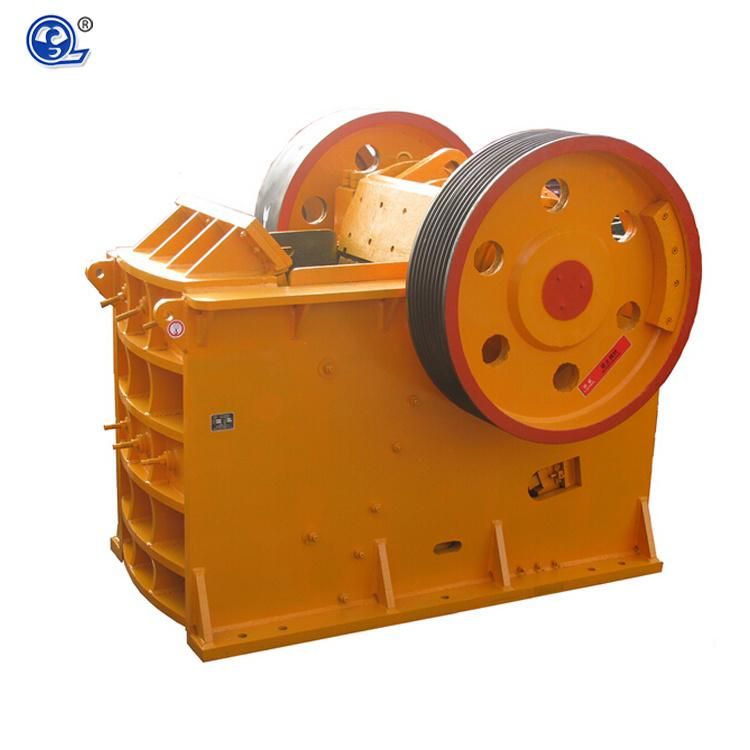

Product Picture
FAQ
Remarks:
In order to find the suitable models and design the best stone jaw crusher plant or sand making line for
you, pls kindly inform us the following information:
1.Which kind of material you are going to crush?
2.What's the max input size of the material?
3.What's the granularity of the final products you need?
4.What's the production capacity you want? How many tons or cubic meters per hour?
5.You want only a Crusher, or a complete Crushing Production Line?
