• Model NO.：GM3015
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API, Ce, ISO 9001, Patent Certification
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Artificial Stone, Quartz Stone, Marble Countertops
• Customized：Customized
• Process Usage：CNC Non-Conventional Machine Tools
• Movement Method：Linear Control
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01~0.02(mm)
• Performance Classification：MID-Range CNC Machine Tools
• Condition：New
• Configuration：7.5kw Mechanical Spindle
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000*1500*600mm
• Trademark：Mars
• Origin：China
• HS Code：8464909000
• Production Capacity：3000 Sets,Year

BasicX/Y/Z Axis Working Area1500*3000*600mmMachine Size4600*3000*2700mmWorking TableAluminum T-slot table protected with PVCMachine StructureThick steel welded, with aging treatmentMainControl SystemSyntec/NC Studio NC65CDrive MotorJapan Yaskawa driver motorSpindle Motor Power1*7.5KW ATC Spindle Water CoolingSpindle speedAdjustable Rotational Speed with 0-24000 rpm/minInverter Zoncn










OthersDrive SystemX/Y axis helical rack & pinion, Z axis Taiwan ball screwGuide RailTaiwan imported linear guide rail PMICooling SystemCirculating water-refluxing design/Round SprayOil SystemAutomatic Oil systemWay of Fixing WorkpieceDouble-sided sealed vacuum adsorption systemSuction cup8pcsWater and dust resistantIntelligent dust proof cooling systemHand wheelElectric hand wheelProfile polishing wheelMax diameter 150mmTool magazine20pcs ATC toolVacuum Pump1*7.5KWPositioning cylinder6pcsElectric ApplianceGermany SchneiderReducerPlanetary reducerWorking accuracy±0.08mmRe-positioning accuracy±0.05mmMax. Traveling Speed25 m/minMax.Working Speed15 m/minWater Sink/TankPowder-painting (Stainless steel is optional)Dictate FormatG-Code / HPGLWater consumption46L/minAir pressure0.8MpaWeight3000KGSWorking VoltageAC380V 3PH 50HZ

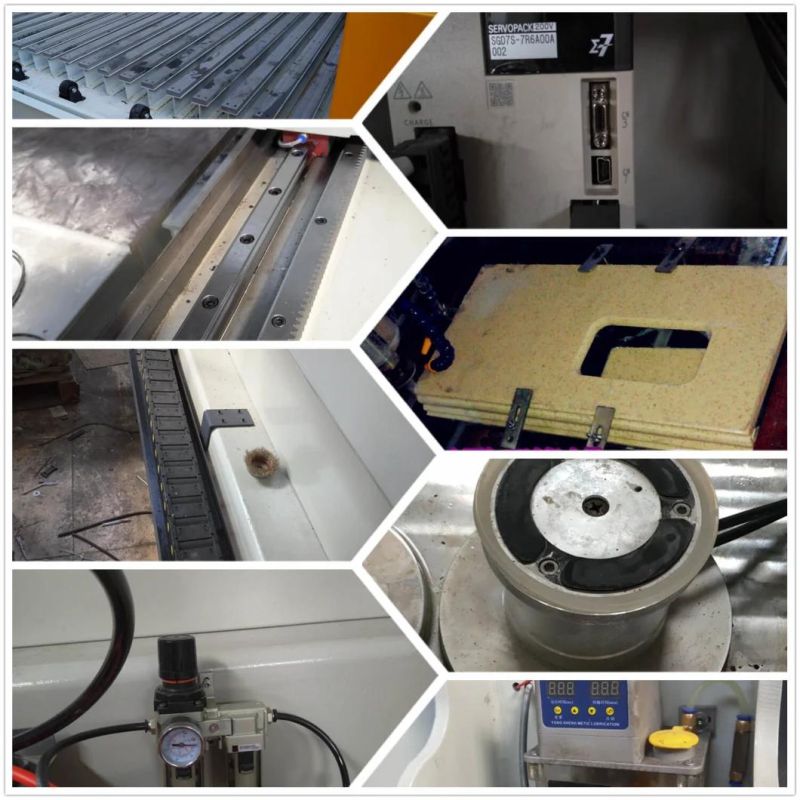

Accessories:


Performance Features:  1Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability. 2Famous brand big torque motor, low noise, large power, high efficiency. 3Adopt imported square linear guide rail, high speed, high precision, long life. 4Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength. 5Reasonable dustproof and waterproof design, fully protect the machine transmission parts. 6Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..

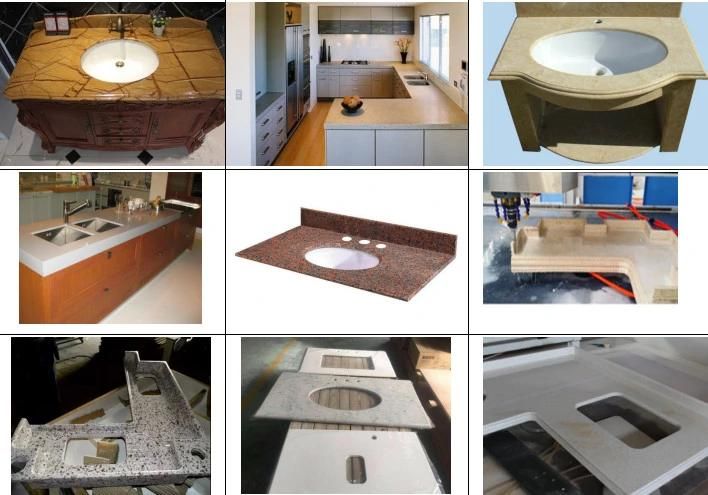

Samples:

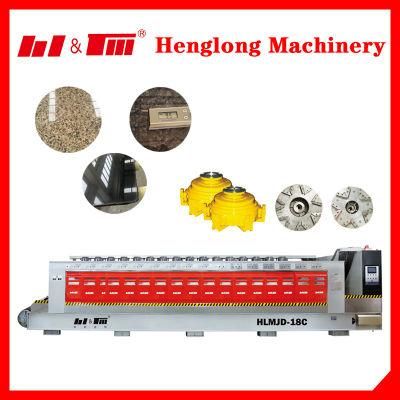

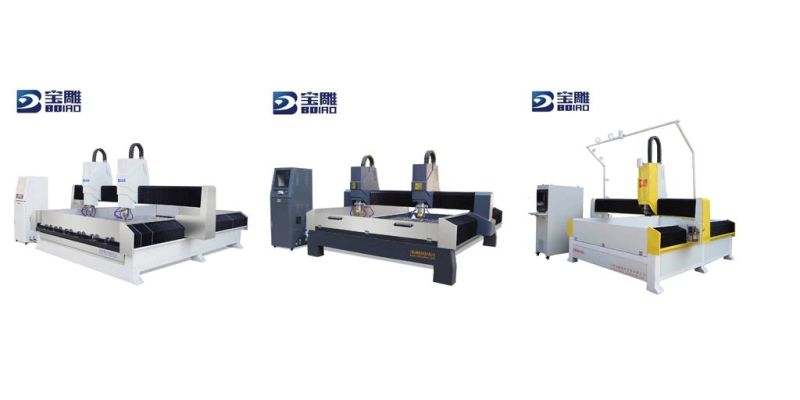

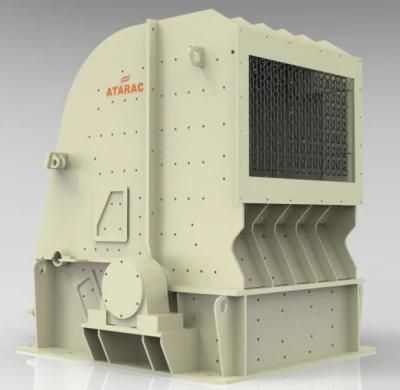

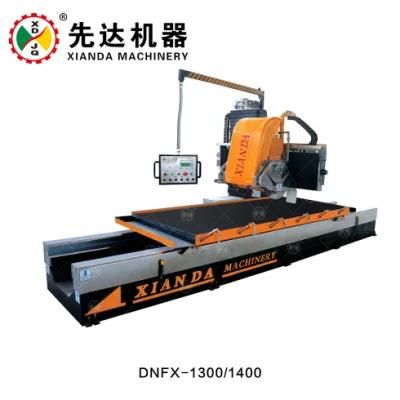

Similar Products:
