• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size (Lxw)：3200X2000 mm
• Max. Cut Thick：170mm
• Table Tilting：0-85°
• Table Rotation：0-360°
• Blade Tilting：0-45°
• Max. Blade Size：625mm
• Spindle Motor：15 Kw
• Weight：7200kg
• Transport Package：Plastic Packing
• Specification：Dimention: 6x5x3 m
• Trademark：AGA
• Origin：Xiamen, Fujian, China
• HS Code：84641010
• Production Capacity：100sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size (Lxw) 3200X2000 mm Max. Cut Thick 170mm Table Tilting 0-85° Table Rotation 0-360° Blade Tilting 0-45° Max. Blade Size 625mm Spindle Motor 15 Kw Weight 7200kg Transport Package Plastic Packing Specification Dimention: 6x5x3 m Trademark AGA Origin Xiamen, Fujian, China HS Code 84641010 Production Capacity 100sets/Month

Product Description

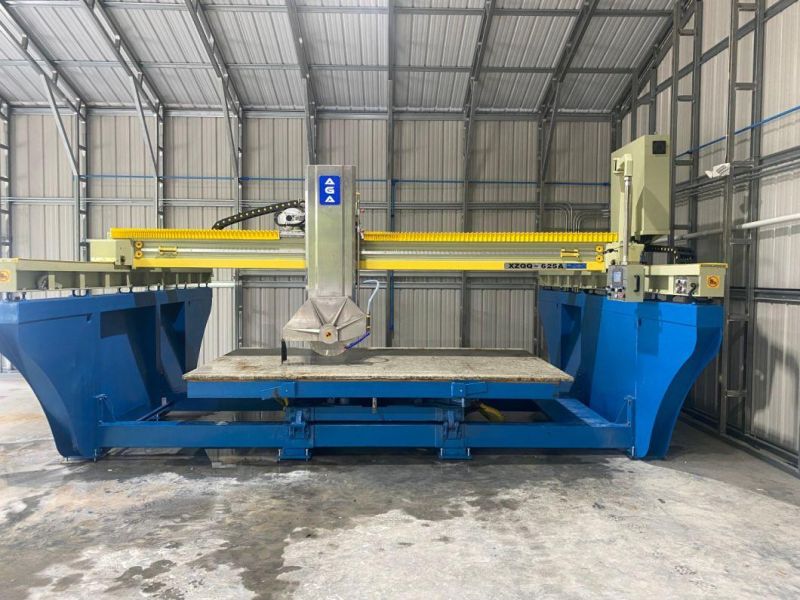

Full Automatic Bridge Stone Cutting Machine XZQQ625A

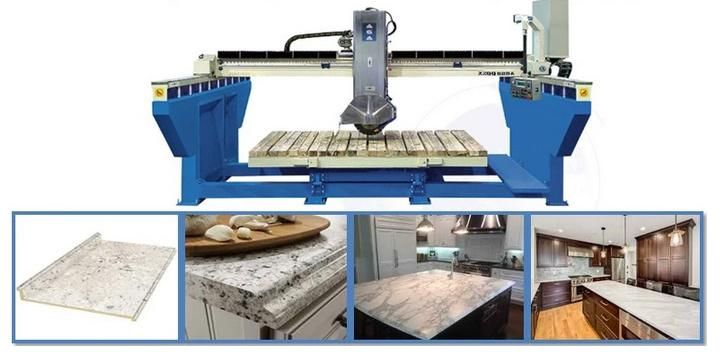

with function of 0°-90°-180°-270° full automatic positioning, chamfering and cutting,  is suitable for  processing stone slab cut to size, tombstone, skirtboard etc.

Main Features

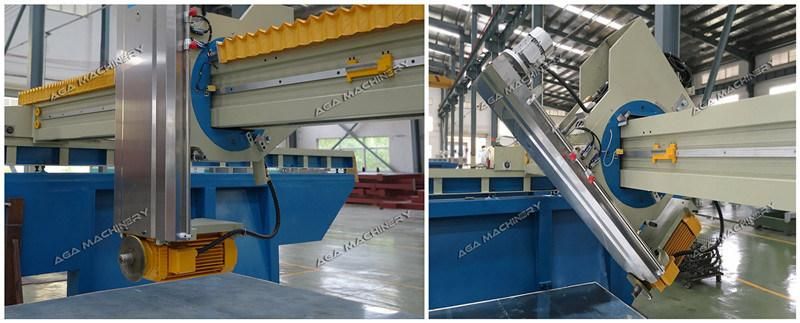

1.Blade can tilt 0-90° ,full automatic vertical and horizontal switch cutting repeatedly by one-button, 0°-90°-180°-270° automatic positioning chamfering cutting.

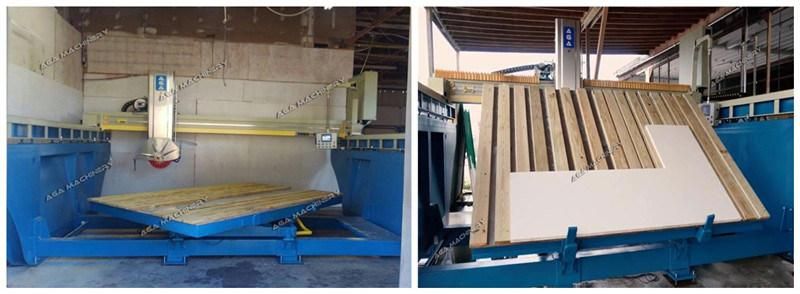

2.Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.

3. Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.

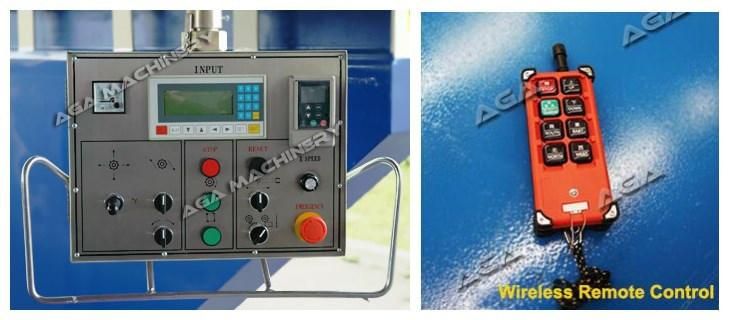

4. Using Siemens PLC control system with and touch-sensitive screen offer friendly and inteligent control.

5. Electric components adopts Siemens or Schneider brand

6. Laser checking and calibration instrument to aid in lining up the cut.

7. Monobloc structural frame is easy for loading, transportation and installation.



Spesification:

Blade size	400-625mm   16"-25"
Cut length	3200mm         126"
Cut width	2000mm         78"
Cut thick	170mm            7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kw              20HP
Size (L×W×H)	6×5×3 m
Weight	7200kg       16000lbs

Packing

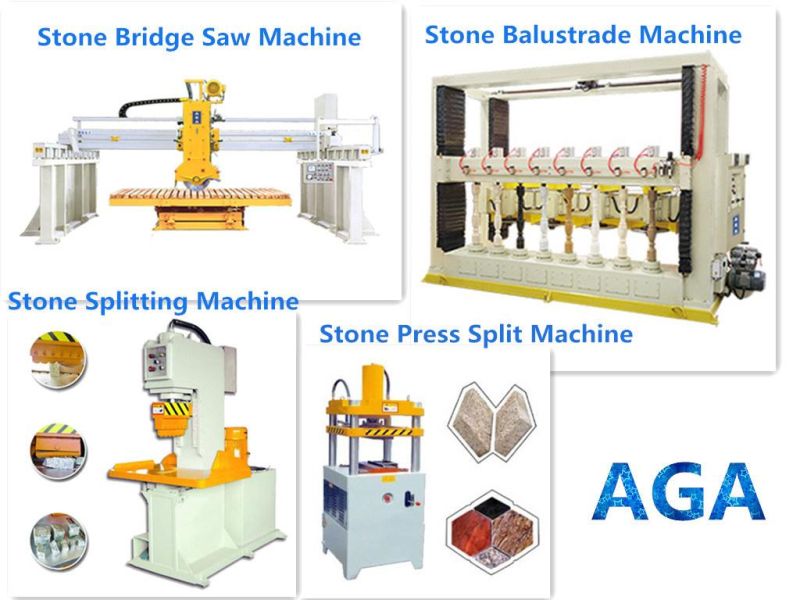

Related machine



Guarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


FAQ:
1, How to pay to you ?
 T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

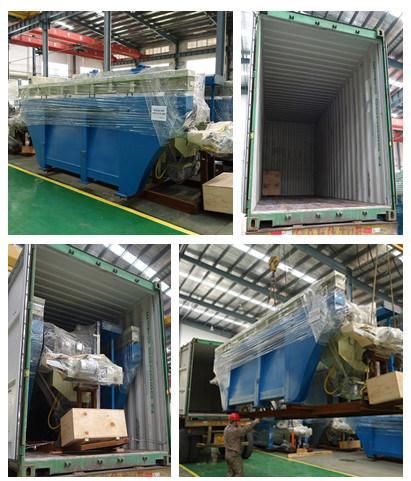

5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading

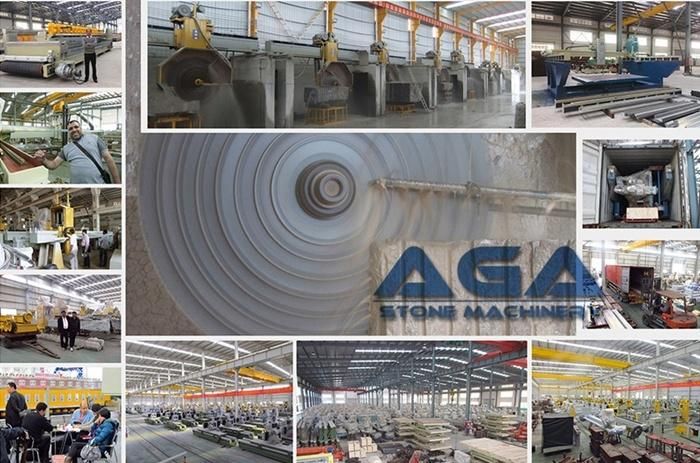

About us:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.



AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

For more details information, please visit our website: agastonemachine.en.made-in-china.com or agastonemachine.en.made-in-china.com , thanks !
