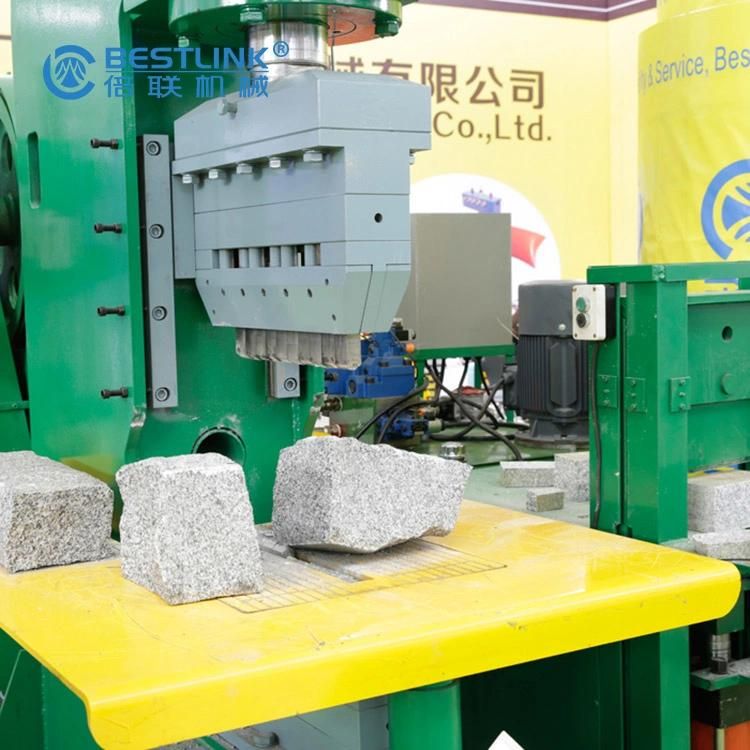

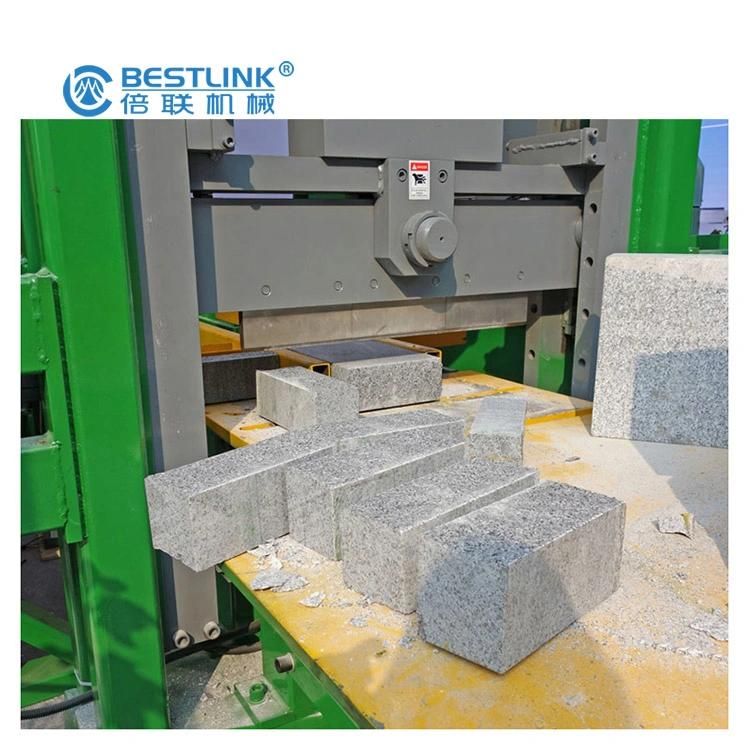

Stone Guillotine Cutting Splitting Machine with Conveyors
Xiamen Bestlink Factory Co., Ltd.- Warranty：12 Months
- Type：Hydraulic Cutting Machine
Base Info
- Model NO.：200tons stone splitter with conveyor
- Usage：Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble
- Application：Art & Craft, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Semi-automatic
- Cutting Ability：High Speed
- Control：Artificial
- Certification：CE
- Available：Equipped with Production Line
- Power：by Electric
- Style：C-Front and Bridge
- Teeth：Floating Teeth
- Keyword：Stone Splitting Machine
- Transport Package：by Crate
- Specification：SGS
- Trademark：BESTLINK
- Origin：Xiamen, Fujian
- HS Code：84791090
- Production Capacity：50,Month
Description
Bridge styleBRT20T 600×150mm 20ton BRT50T 600×300mm 50ton BRT80T 800×280mm 80ton BRT320T 1200×800mm 320ton
Model BRT50T-MF 400*200 BRT100T-MF 600*300 Max.splitting width mm 400 600 Max.splitting height mm 200 300 Max.splitting power ton 50 100 Electric power kw 7.5 11 Main machine dimension
(L*W*H) mm 1145*1000*2030 1510*1100*2370 Machine weight kg 2000 2500 Conveyor dimension(L*W*H) mm 1400*750*700 /

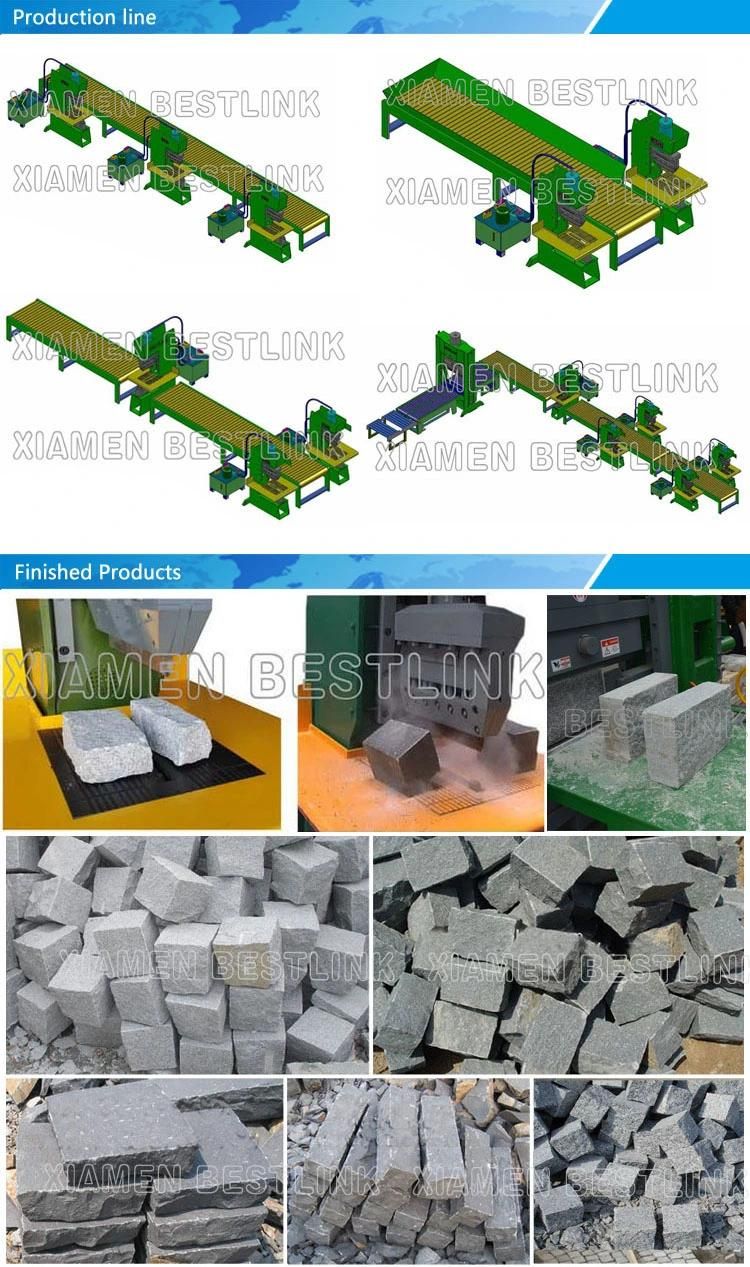

Conveyer Systems can be situated at the front or back of the splitting machine to facilitate the movement of irregular and heavy stones. Thanks to this application it's possible to have a continued input of semi manufactured products, which will give an increase of work productivity.
(L*W*H)
Conveyer Systems can be situated at the front or back of the splitting machine to facilitate the movement of irregular and heavy stones. Thanks to this application it's possible to have a continued input of semi manufactured products, which will give an increase of work productivity.
