• Model NO.：CP90
• Usage：Concrete Curb, Granite, Marble
• Application：Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry
• Source Voltage：380V
• Automation：Semi-automatic
• Cutting Ability：Medium Speed
• Control：CNC
• Certification：CE
• Splitter Power：20t and 40t
• Fuctions：Stamping, Splitting, Cutting
• Color：Green
• System：Hydraulic

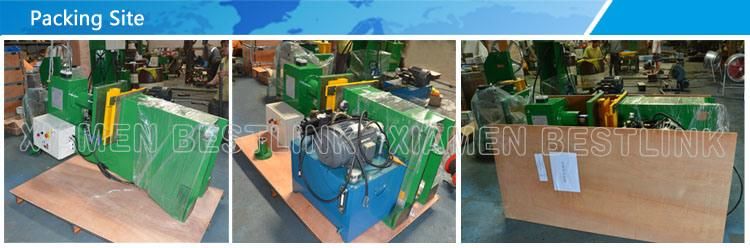

• Transport Package：by Plywood Case
• Specification：CE
• Trademark：BESTLINK
• Origin：China
• HS Code：84741090
• Production Capacity：1000sets Per Year

Basic Info.

Model NO. CP90 Usage Concrete Curb, Granite, Marble Application Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry Source Voltage 380V Automation Semi-automatic Cutting Ability Medium Speed Control CNC Certification CE Splitter Power 20t and 40t Fuctions Stamping, Splitting, Cutting Color Green System Hydraulic Transport Package by Plywood Case Specification CE Trademark BESTLINK Origin China HS Code 84741090 Production Capacity 1000sets Per Year

Product Description

Specifications
1.Stone pressing machine
2.Max pressing thickness:10 cm
3.40 dies provided
4.Automatic working
5.Low maintenance cost.

XIAMEN BESTLINK STONE PRESSING MACHINE

As a leading factory for waste slab and block processing, Bestlink has supplied the professional stone machines to many countries, like USA, Norway, Egypt, Brazil, India, Russia and Mexico, etc.From the feedback from our clients all of the world, the quality of the machines from Bestlink is getting better and better, and more and more clients are gonna to have the stamping machine and splitting machines.

With these high quality components, our machines get a high performance and has a long life.
What's more, the clients can replace the components very easily in his own country when any problem happened.

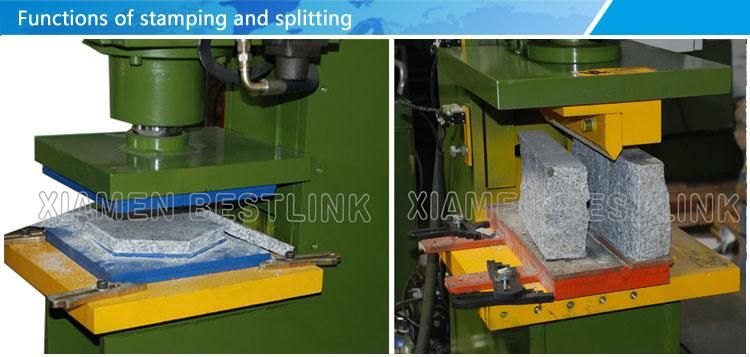

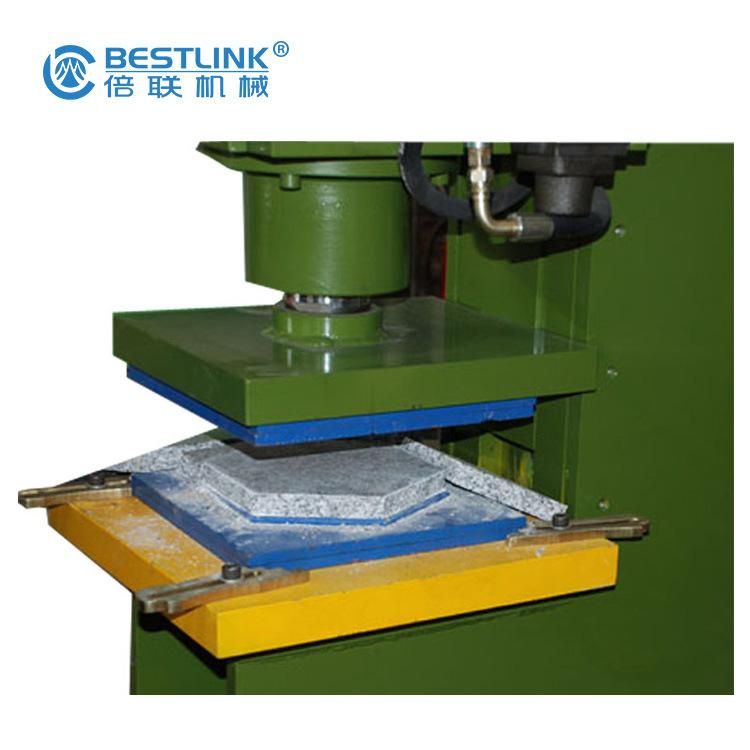

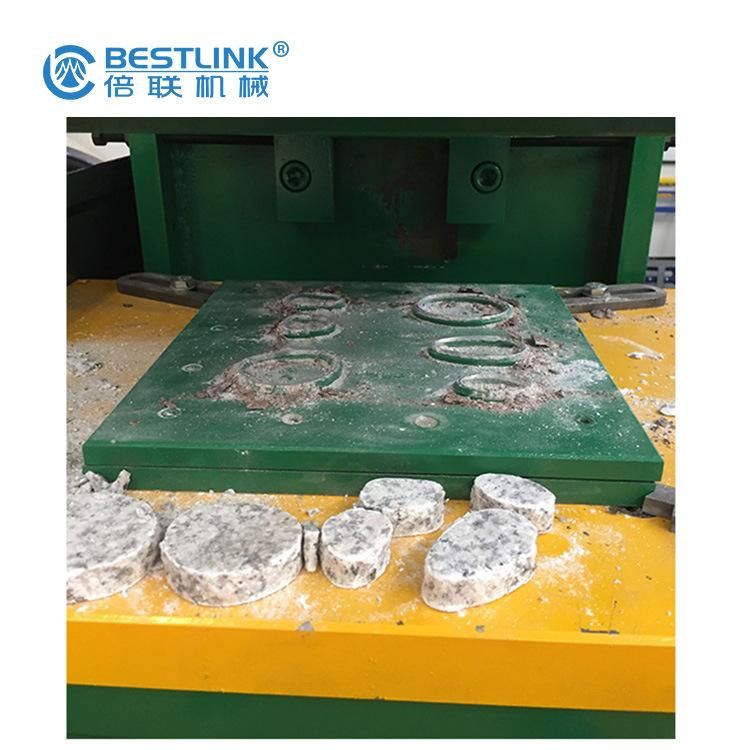

The latest model of the stamping machine has 3 functions:Stamping (pressing), cutting, splitting.

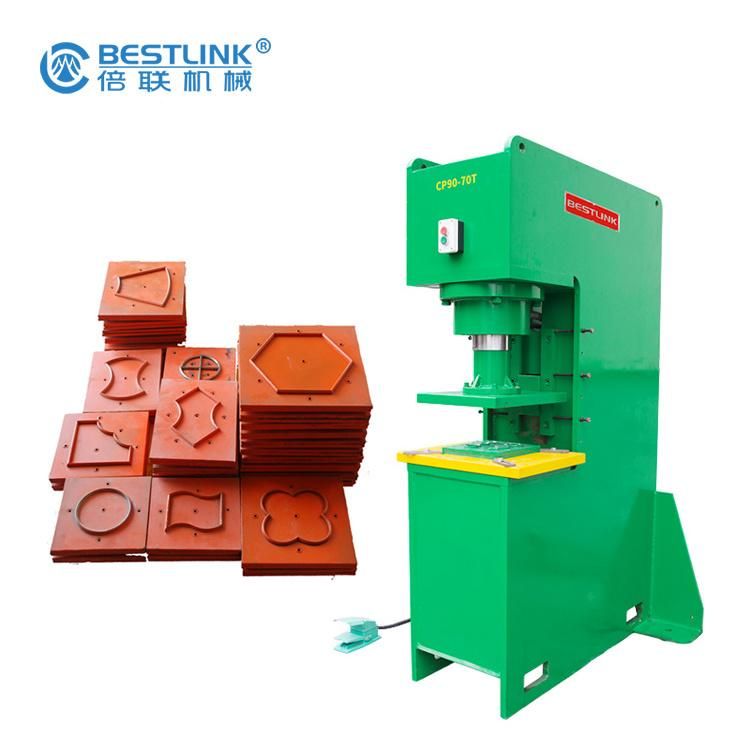

There are 40 different moulds (dies) for the stone stamping machine.Clients can choose it by themselves.

Online vedio:HTTP://xmbestlink.en.made-in-china.com

Pls see below three functions:

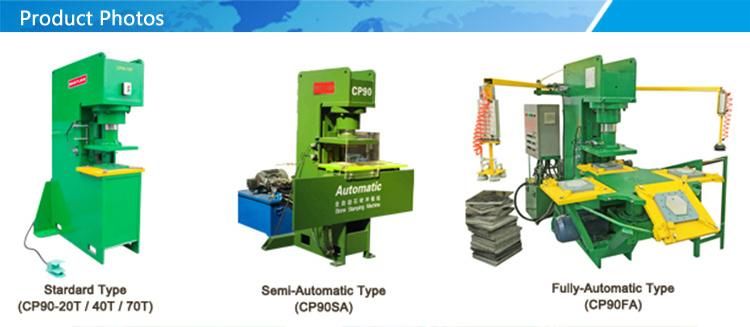

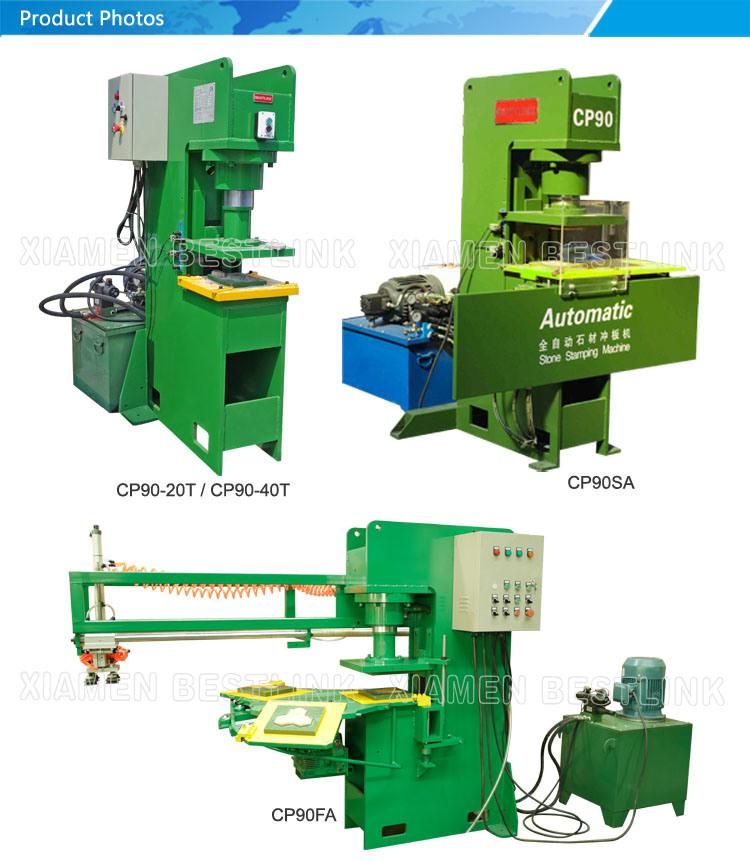

Model	CP90-20T-A	CP90-40T-A	CP90-20T-B	CP90-40T-B	CP90(40T automatic)
Hydraulic pressure	20Mpa	20Mpa	20Mpa	20Mpa	20Mpa
Splitting power	20T	40T	20T	40T	40T
Electric motor power	4kw	7.5kw	4kw	7.5kw	7.5kw
Max.Slab stamping size	30cm×30cm×5cm	30cm×30cm×8cm	30cm×30cm×5cm	30cm×30cm×8cm	30cm×30cm×8cm
Max splitting length	30cm	35cm	30cm	35cm
Max splitting height	1-5cm	5-8cm	1-5cm	5-8cm	1-5cm
Machine size	70*86*113cm	80*100*150cm	80*100*150cm	80*100*150cm	80*100*150cm
Weight	420kg	550kg	500kg	580kg	650kg
Fuctions	Stamping,splitting	Stamping,splitting	Stamping,cutting,splitting	Stamping,splitting,cutting	Stamping
