• Model NO.：PF
• Finished Surface：Cut Off Tool
• Certification：CE, ISO
• Condition：New
• Color：at The Different Design
• Name：Large Capacity Zirconite Ore, Stone Small Impact C
• Keyword：Zirconite Ore, Stone Small Impact Crusher
• Weight：3.5 T
• Rotor Size：850*700 mm
• Max Input Size：300 mm
• Output Size：1-25 mm
• After Sale Service：Long Term, Good Price
• Installation：Under Our Guide
• Spare Parts Supply：Long Term, Good Price
• Price：Competitive
• Transport Package：Standard Packing
• Specification：CE
• Trademark：HC
• Origin：Gongyi City, Henan Province, China
• HS Code：8474201000
• Production Capacity：300 Set,Sets Per Month


Model
Rotor Size
(mm)
Max.Input Size
(mm)
Output size
(mm)
Motor power
(kw)
Capacity
(t/h)
Weight
(kg)
PF_0807
850 × 700
300
≤ 25=85%
30
10-25
3500
PF_1007
1000 × 700
300
≤ 25=85%
37
15-30
6500
PF_1010
1000 × 1050
350
≤ 25=85%
55-75
50-80
12100
PF_1210
1250 × 1050
350
≤ 25=85%
110-132
70-120
14000
PF_1214
1250 × 1400
400
≤ 25=85%
132-160
130-180
18500
PF_1315
1300 × 1500
500
≤ 25=85%
160-200
180-260
23500
PF _ 1320
1320× 2000
500
≤ 25=85%
300-350
300-350
26500

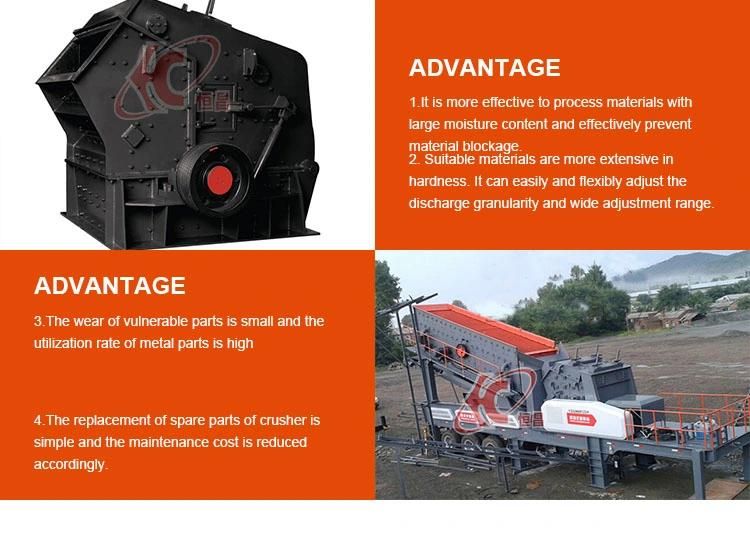

4.Main Features Of Large Capacity Zirconite Ore/ Stone Small Impact Crusher

1) Optimized design to low-speed, multi-impact crusher crushing chamber, the back-breaking than the average line speed reduced by 20% -25%, with low power consumption for high production capacity

2)A new manufacturing technology, the successful development of a high wear resistance, high toughness of chromium, molybdenum, vanadium alloy, to solve the problem of fragmentation of hard materials. Greatly improving the life of the board hammer

3)Simplified crushing process

4) Feed opening, high crushing chamber to meet the high material hardness, block degree, the product powder less



5.our service

(1)Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

(2)After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

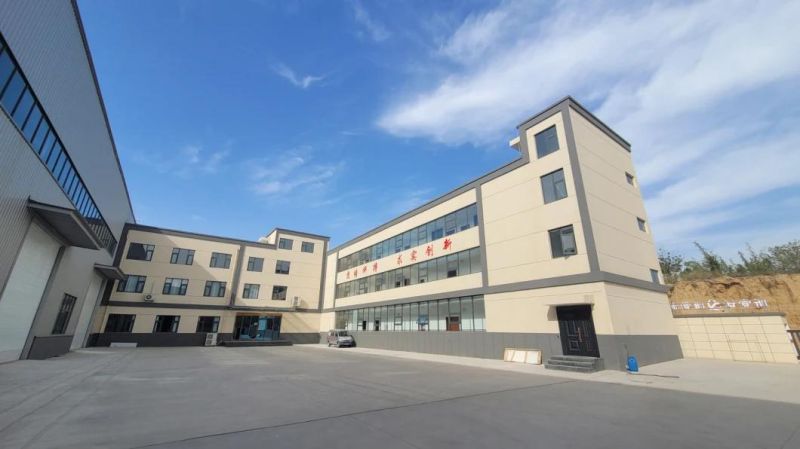

6.our compmany





7.FAQ

Q:Hi, are you mining machinery manufacturer?

A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.

Q:which country have your products been exported?

A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q:Can you do mineral processing test?

A:Yes, not only can do it in your country, also can back to our company


8.Contact us

If you want to know more details, please contact me!!

Website:http://hcmining.en.made-in-china.com



Amanda Li
