• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size (Lxw)：3200X2000 mm
• Max. Cut Thick：170 mm
• Table Tilting：0-85°
• Table Rotation：0-360°
• Blade Tilting：0-45°
• Max. Blade Size：625mm
• Spindle Motor：15 Kw
• Weight：7200kg
• Transport Package：Plastic Packing
• Specification：Dimention: 6x5x3 m
• Trademark：AGA
• Origin：Xiamen, Fujian, China
• HS Code：84641010
• Production Capacity：100sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size (Lxw) 3200X2000 mm Max. Cut Thick 170 mm Table Tilting 0-85° Table Rotation 0-360° Blade Tilting 0-45° Max. Blade Size 625mm Spindle Motor 15 Kw Weight 7200kg Transport Package Plastic Packing Specification Dimention: 6x5x3 m Trademark AGA Origin Xiamen, Fujian, China HS Code 84641010 Production Capacity 100sets/Month

Product Description

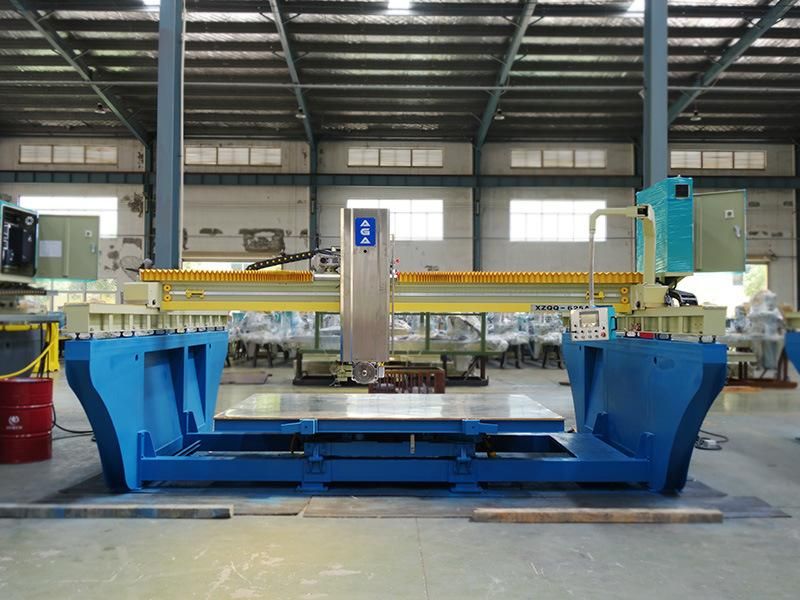

Bridge Cutting Saws for Granite and Marble Countertop Processing Machine
Model NO. : XZQQ625A

Spesification:

Blade size	400-625mm   16"-25"
Cut length	3200mm         126"
Cut width	2000mm         78"
Cut thick	170mm            7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kw              20HP
Size (L×W×H)	6×5×3 m
Weight	7200kg       16000lbs

- Our bridge saw is a monobloc saw machine for granite kitchentop & countertop fabricator, stable electric system.
- It usually uses for cutting granite, marble Quartz of slab,tile, kitchentop,countertop, etc.
- The max cutting size is 3200mmx2000mmx175mm (126"x78"x7").
- The blade motor is 15Kw( 20HP) , providing high power to work.
- The table can tilt 0-85 degree to easy load and unload the material.
- The blade travels on the beam and it can miter 45 degree cutting, it is a preferable saw for grainte fabricator.
- XZQQ625A  bridge saw  provides covered oil bath for the movements of bridge rails.
- Also all the functions are operated on the control panel that make it very user friendly.

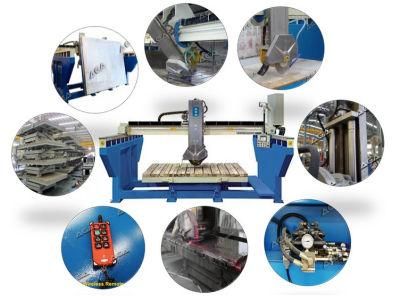

Features and Benifits:
1) Monoblock frame
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.



2) Blade&Table

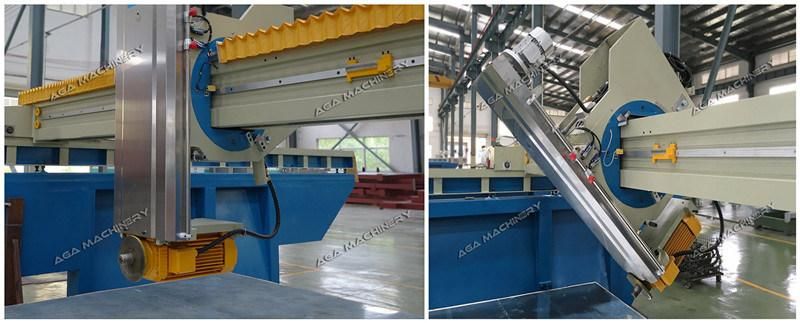

- Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.

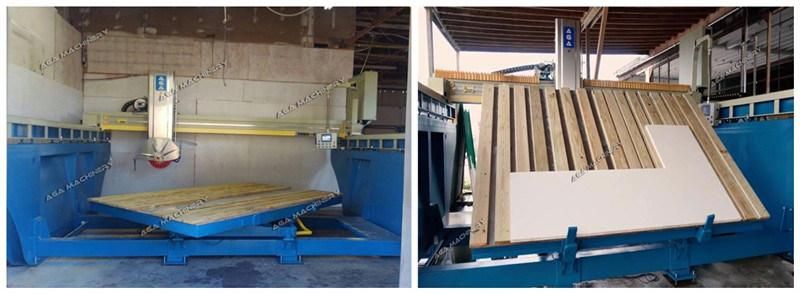

- Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.

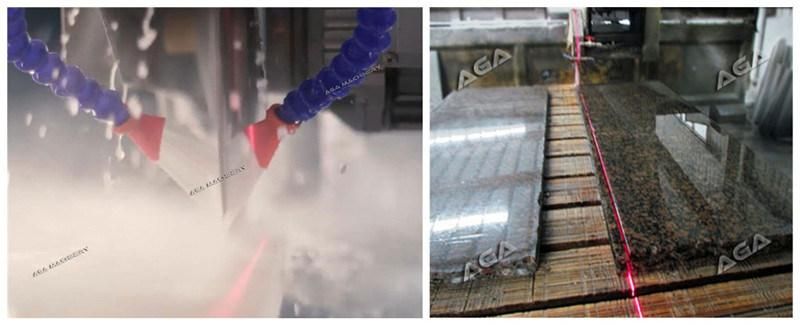

3) Laser guide cutting
The laser guide and sensors gives high accuracy for the machining tolerance.

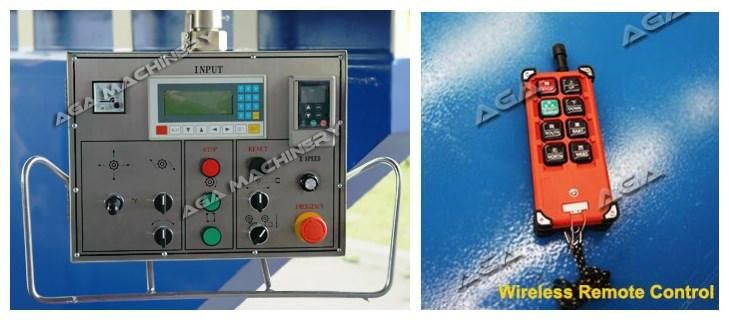

4) Control appliance
-Operation interface combined of human-computer interface and mechanical button, very easy operating, cutting head can be control by cross command switch by hand, real time data display on screen.
- Wireless remote provides ease control of the saw.

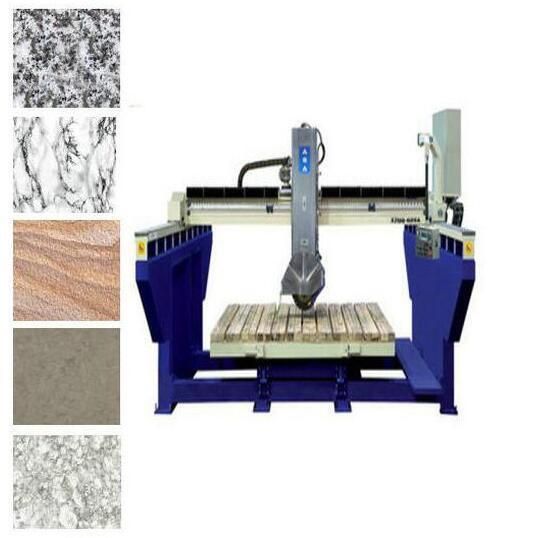

5)Applicable stone range
Granite , Marble, Sandstone, Limestone, Quartz and so on.


7)Functions
1. Cutting slabs intor various sizes of tiles/cut-size;

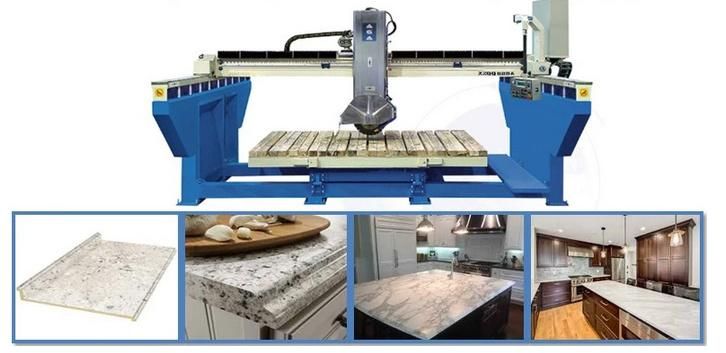

2. Processing slabs,tiles,kerbstone,pavingstone, kitchen counter-tops, vanity-tops, monument,fireplaces, shower surrounds, stair, windowsill ... ect.

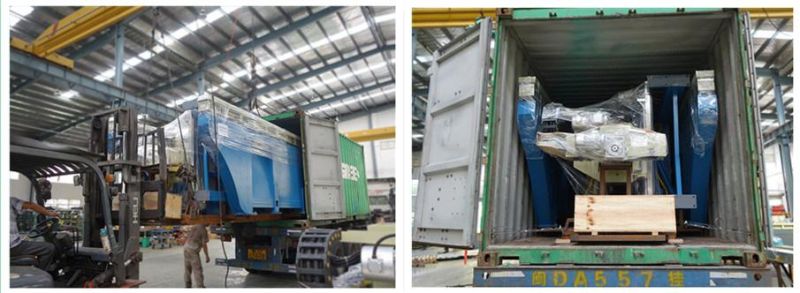

Packing

Keywords:
Bridge Cutting Saws, Bridge Cutting Machine,  Stone Processing Machine, CNC Processing Machine



Related machine

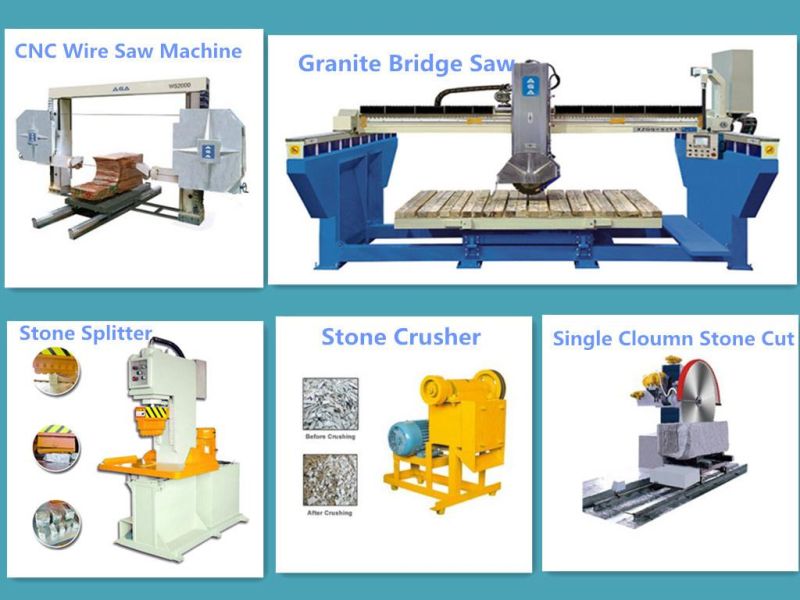

We are professional in making marble granite machine, such as Polishing Machine XMJ1050-16C, ZDMJ-16C,  Bridge Saw XZQQ625A, HQ400/600/700, HQ1200, Block Cutter DQ2200/2500/2800,DS1600,DL2200/2500/3000, CNC Wire Saw WS2000, Balustrade Cutting Machine DYF600, Column Cutting Maching SYF1800, Edge Polishing Machine MB3000, MB3000L, Splitting Machine P90/95, P240, Pressing Machine P72/ 80, P74, Stone Crusher PS22... ect, please visit our website for more machine pictures: agastonemachine.en.made-in-china.com .

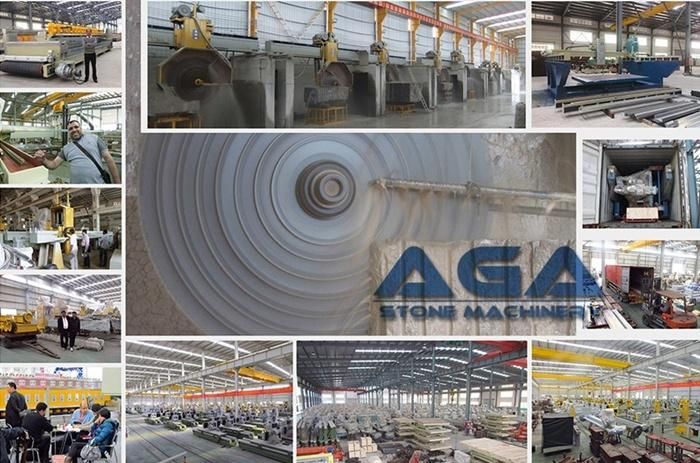

About us:
