• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max.Cut Size(L*W*H)：3200mm*2000mm*170mm
• Automatic Blade：Tilting 0-45 Degree for Miter Cuts
• Functional Table1：Tilting 0-85 Degree
• Functional Table2：Rotating 0-360 Degree Stopped Any Position
• Wireless Remote：Easy Control of Saw
• Color Touch Screen：Live Datas and Easy Operation
• Laser Guide：Precision Cutting Within +,-0.2mm
• Spindle Moter：15kw 20HP
• Machine Size(L*W*H)：6m*5m*3m
• Weight：7200kg
• Transport Package：Water-Proof Plastic Packing
• Specification：Dimention: 6m*5m*3m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max.Cut Size(L*W*H) 3200mm*2000mm*170mm Automatic Blade Tilting 0-45 Degree for Miter Cuts Functional Table1 Tilting 0-85 Degree Functional Table2 Rotating 0-360 Degree Stopped Any Position Wireless Remote Easy Control of Saw Color Touch Screen Live Datas and Easy Operation Laser Guide Precision Cutting Within +/-0.2mm Spindle Moter 15kw 20HP Machine Size(L*W*H) 6m*5m*3m Weight 7200kg Transport Package Water-Proof Plastic Packing Specification Dimention: 6m*5m*3m Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200 Sets/Month

Product Description

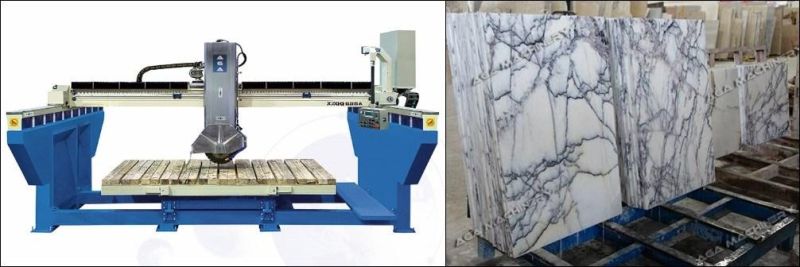

Premium Stone Bridge Saw CNC Machine for Marble Granite Quartz Cutting Fast and Easy
Bridge saw XZQQ625A is robust U.S standard made with full funtions,  including mono frame, pendant control panel, touch screen, wireless remote, table rotation and tilting, blade tilting, hydraulic pump, etc.
A good bridge saw suitable for cutting and fabricating slabs and countertops of granite, marble, quartz and other stone materials.

Stone bridge saw specifications:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Stone bridge saw features:
The whole bridge saw is featured with high cutting efficiency, high cutting precision, high stability, easy to operate.
Blade provides automatic power tilting of 0-45 degree for miter cuts.
Auto table tilts 0-85 degree for easy load of granite marble materialas, it also turns 0-360 degree stopping autoamtically at any angle to change the cutting position easily.
Bridge saw is monoblock structure frame, easy for  loading, transportation and installation.
Wireless reomote provides easy control of the bridge saw.
Touch-sensitive operating system, friendly human-machine interface design.
PLC control system, programmable, fully automatic & smooth feeding
Wide bridge structure with crossbeam, large size of slab cutting available.
Main structures are made of very strong cast iron for stable running and stainless steel for protection.
Electric parts of good international brand adopted, reliability guaranteed.


FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
Granite bridge saw, stone bridge saw, bridge cutting saw, bridge saw, granite saw, stone saw, marble bridge saw, slab cutting machine, granite sawing machine, mabrle cutting machine, granite cutting machine, slab sawing machine, cnc machine, china bridge saw, plc bridge saw, tile cutting machine, bridge cutting machine, etc.
