Natural Stone Marble Laser Bridge Saw Machine Cutting Granite Slabs for Sale (XZQQ625)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service:1 Year
- Warranty:1 Year
- Type:Laser Cutting Machine
- Usage:Granite, Marble
- Application:Machinery & Hardware, Stone Industry
- Source Voltage:380V
Base Info
- Model NO.:XZQQ625A
- Automation:Automatic
- Cutting Ability:High Speed
- Control:CNC
- Certification:ISO, CE
- Max. Cut Size (Lxw):3200X2000 mm
- Max. Cut Thick:170mm
- Table Tilting:0-85°
- Table Rotation:0-360°
- Blade Tilting:0-45°
- Max. Blade Size:625mm
- Spindle Motor:15 Kw
- Weight:7200kg
- Transport Package:Plastic Packing
- Specification:Dimention: 6x5x3 m
- Trademark:AGA
- Origin:Xiamen, Fujian, China
- HS Code:84641010
- Production Capacity:100sets,Month
Description
Basic Info.
Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size (Lxw) 3200X2000 mm Max. Cut Thick 170mm Table Tilting 0-85° Table Rotation 0-360° Blade Tilting 0-45° Max. Blade Size 625mm Spindle Motor 15 Kw Weight 7200kg Transport Package Plastic Packing Specification Dimention: 6x5x3 m Trademark AGA Origin Xiamen, Fujian, China HS Code 84641010 Production Capacity 100sets/MonthProduct Description

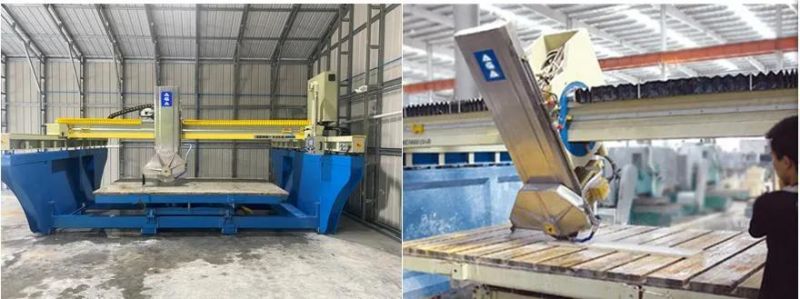

Natural Stone Marble Laser Bridge Saw Machine Cutting Granite Slabs for Sale-Model NO. : XZQQ625A
- Our bridge saw is a monobloc saw machine for granite kitchentop & countertop fabricator, stable electric system.
- It usually uses for cutting granite, marble Quartz of slab,tile, kitchentop,countertop, etc.
- The max cutting size is 3200mmx2000mmx175mm (126"x78"x7").
- The blade motor is 15Kw( 20HP) , providing high power to work.
- The table can tilt 0-85 degree to easy load and unload the material.
- The blade travels on the beam and it can miter 45 degree cutting, it is a preferable saw for grainte fabricator.
- XZQQ625A bridge saw provides covered oil bath for the movements of bridge rails.
- Also all the functions are operated on the control panel that make it very user friendly.
Blade size | 400-625mm 16"-25" |
Cut length | 3200mm 126" |
Cut width | 2000mm 78" |
Cut thick | 170mm 7" |
Blade tilt | 0 - 45° |
Table rotate | 0 - 360° |
Table tilt | 0 - 85° |
Spindle motor | 15kw 20HP |
Size (L×W×H) | 6×5×3 m |
Weight | 7200kg 16000lbs |
Features and Benifits:
1) Monoblock frame
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.
2) Blade&Table

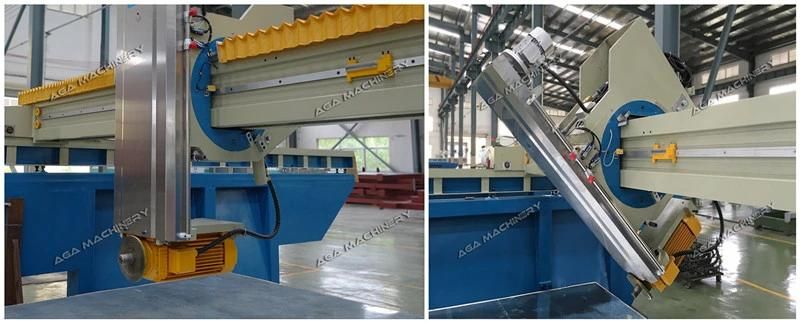

- Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.

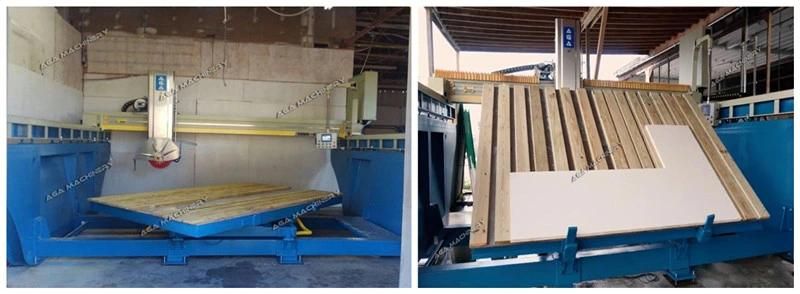

- Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.

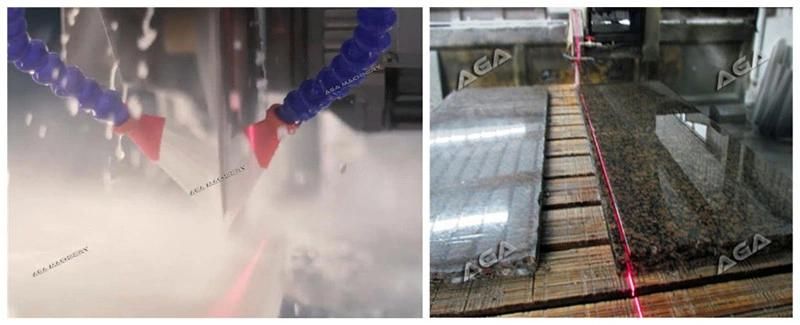

3) Laser guide cutting
The laser guide and sensors gives high accuracy for the machining tolerance.

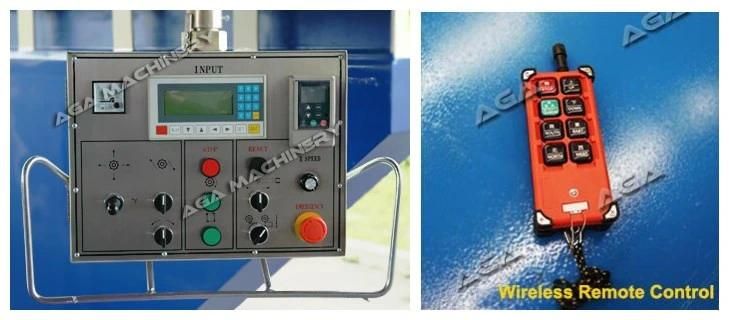

4) Control appliance
-Operation interface combined of human-computer interface and mechanical button, very easy operating, cutting head can be control by cross command switch by hand, real time data display on screen.
- Wireless remote provides ease control of the saw.

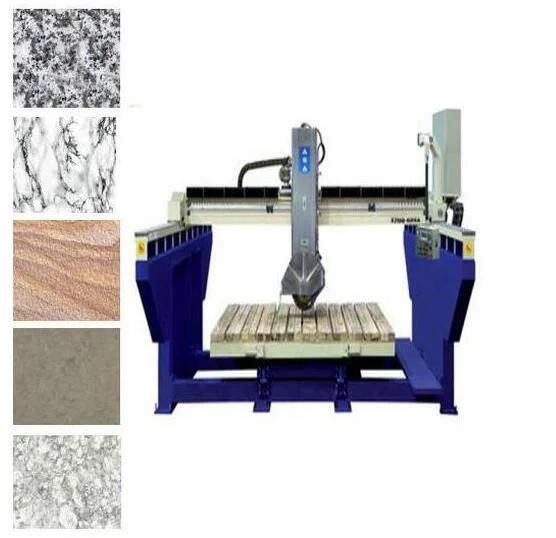

5)Applicable stone range
Granite , Marble, Sandstone, Limestone, Quartz and so on.
6)Functions
1. Cutting slabs intor various sizes of tiles/cut-size;

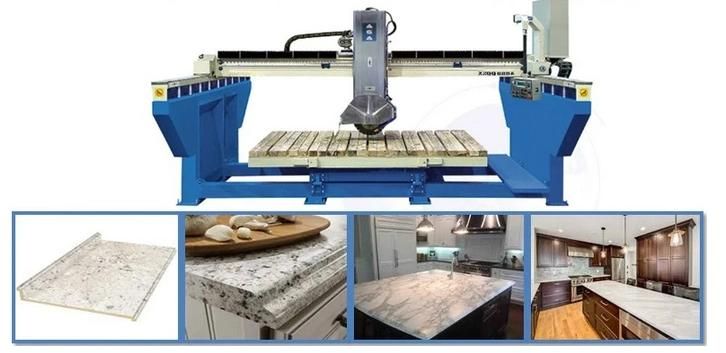

2. Processing slabs,tiles,kerbstone,pavingstone, kitchen counter-tops, vanity-tops, monument,fireplaces, shower surrounds, stair, windowsill ... ect.

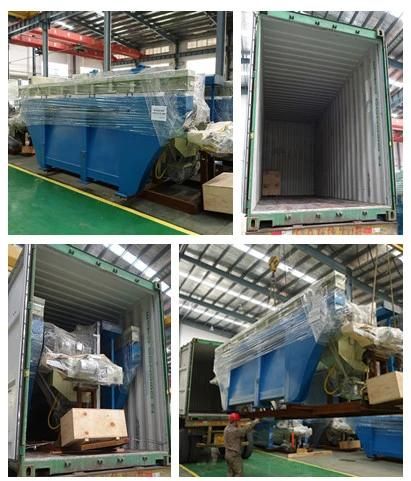

Packing
Guarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.
