• Model NO.：LQ-WSM-37KW
• Automation：Automatic
• Certification：CE
• Item：Wire Saw Stone Machinery
• Main Motor Power：37-75 Kw
• Length of Wire：20-150 M
• Diameter of Driving Wheel：600-1000 mm
• Speed：0-40 M,S

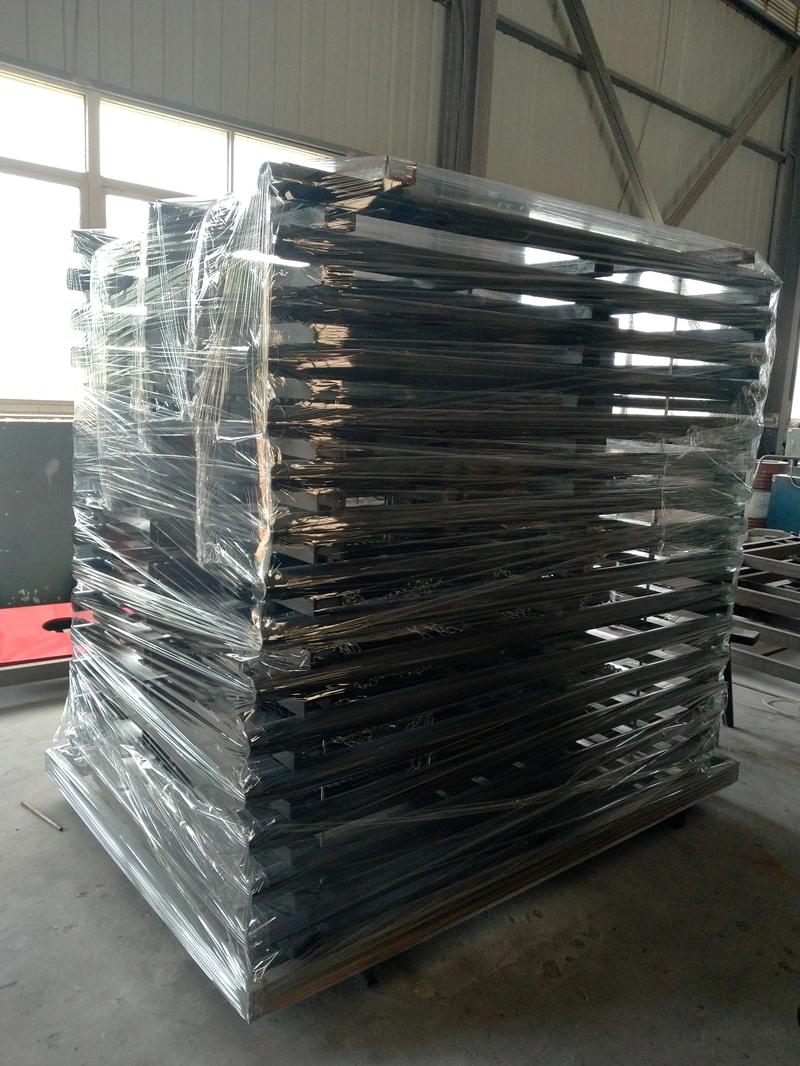

• Length of Track：2 M,PC
• Control System：Automatic
• Use：Stone Cutting
• Price Base：Fob CIF
• Transport Package：Crate
• Specification：CE SGS
• Trademark：KEEN TOOL
• Origin：Quanzhou Fujian
• HS Code：84641090
• Production Capacity：30sets,Month

Basic Info.

Model NO. LQ-WSM-37KW Automation Automatic Certification CE Item Wire Saw Stone Machinery Main Motor Power 37-75 Kw Length of Wire 20-150 M Diameter of Driving Wheel 600-1000 mm Speed 0-40 M/S Length of Track 2 M/PC Control System Automatic Use Stone Cutting Price Base Fob CIF Transport Package Crate Specification CE SGS Trademark KEEN TOOL Origin Quanzhou Fujian HS Code 84641090 Production Capacity 30sets/Month

Product Description

Company Information:
We, Keen Diamond Tool Co. Ltd specialize in development and production of series machinery and diamond tools for stone quarry, processing and civil construction work, especially in the fields of diamond wires, diamond beads, wire saw stone machinery, DTH drill etc. All of our products have been proved in very competitive performance in USA, Brazil, Mexico, Sweden, Germany, South Africa, Thailand etc.

Description:

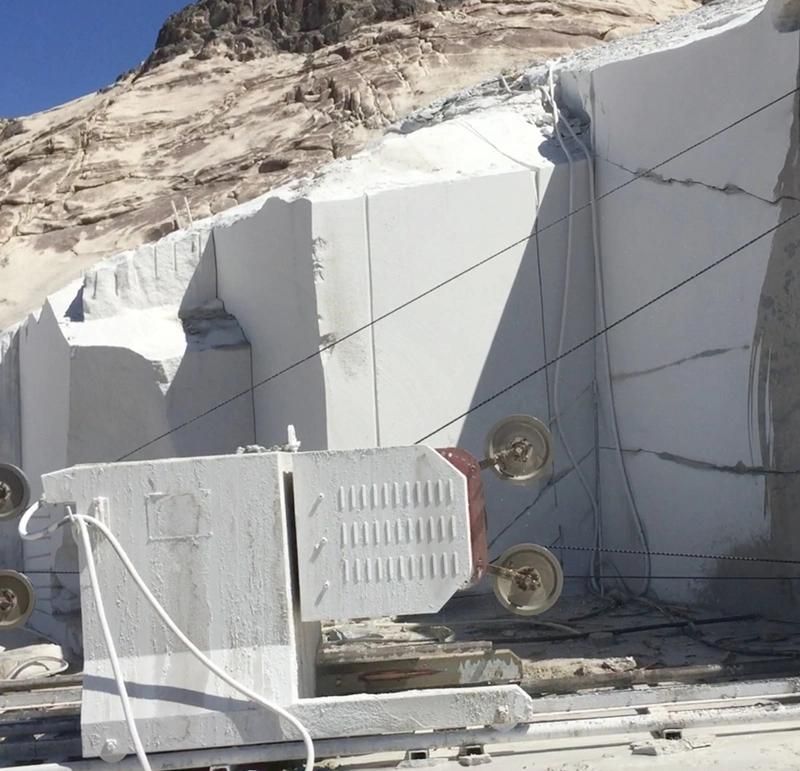

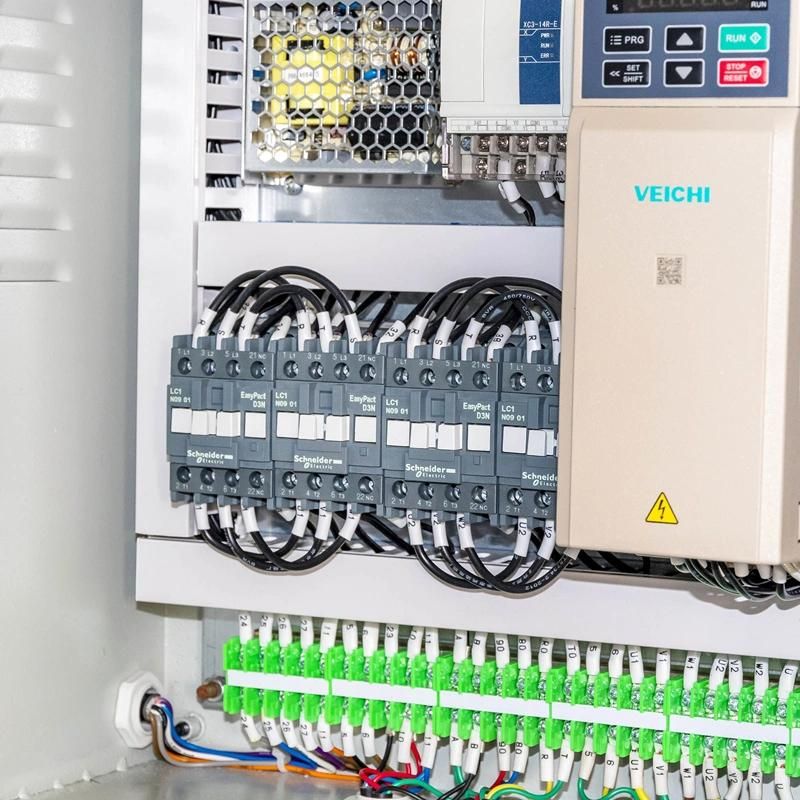

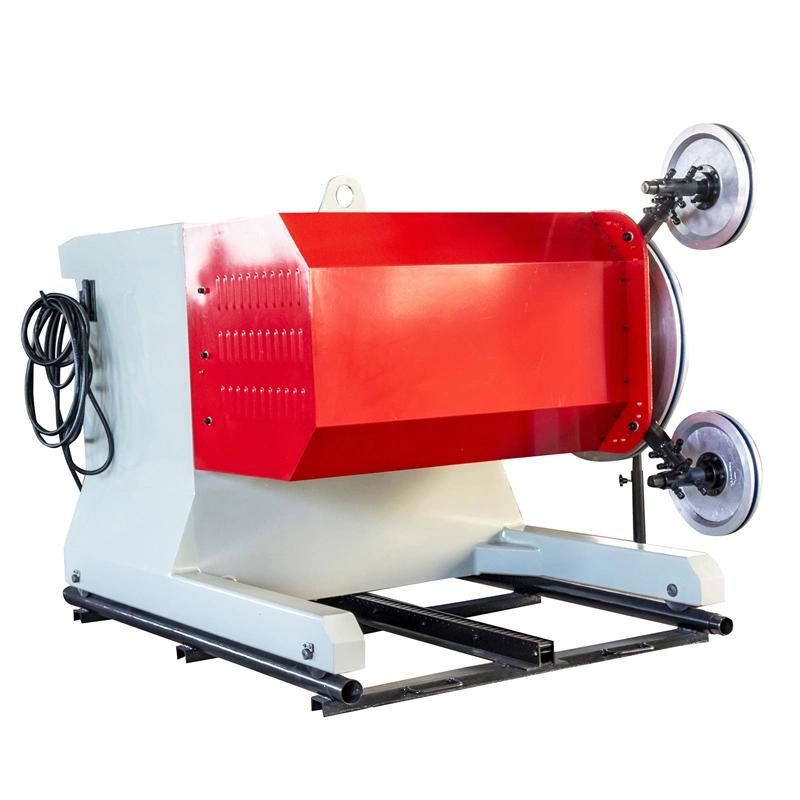

The electrical control system of our wire saw stone machinery are with PLC and two inverters that allow to variable linear speed of wire from 0-40 M/S. The translation and 360 degree rotation of flywheel-holder head of wire saw stone machinery are motorized and allow an easy and fast positioning of the machine, as well as the execution of two parallel cuts. All the movement of the wire saw stone machinery are motorized and an automatic mechanism keeps always constant and programmed tension of diamond wire in working conditions. Our wire saw stone machinery are with Safety devices that shut off the machine in case of wire breakage, over voltage, over electric current, over heating of motor, incorrect maneuvers etc. The greatest advantage of our wire saw stone machinery are safe cutting and good diamond wire durability as well as being user friendly.


Technical Data:
1-Variable wire speed range from 0-40 M/S
2- Automatic step-less tensioning system to keep the wire always in optimal working condition.

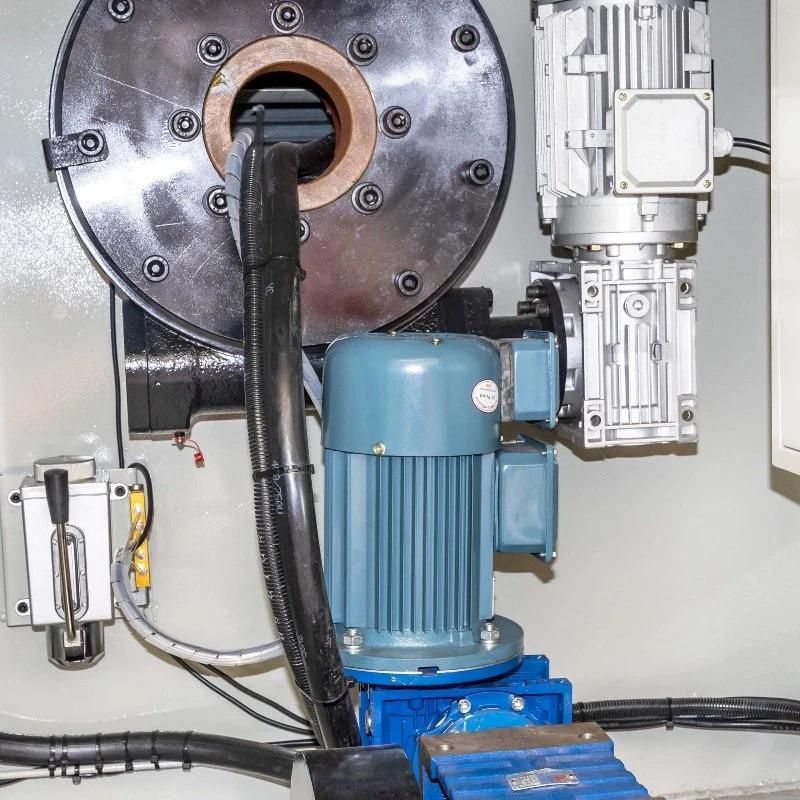

3. Motorized rotation of driving wheel holder from 0-3600 with limit protection for over movement.
4. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement.
5- Maximum travel speed on rail without loading 1.75 Meters/Min.
6- Safety alarm and stop system in case of unexpected wire break or any other faults.

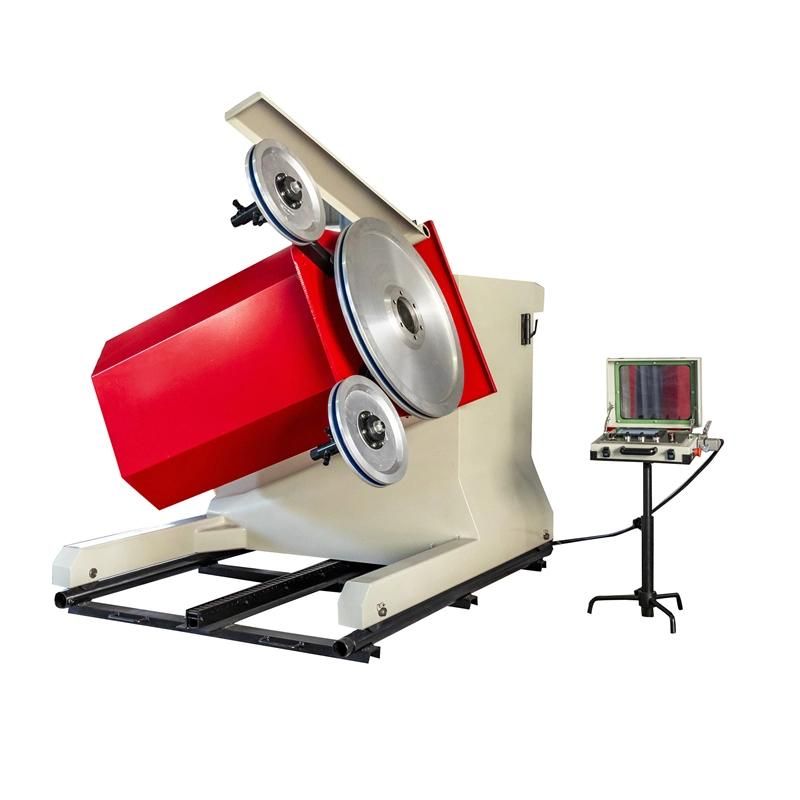

7- Distant control with very simple panel to operate the saw with better safety easier understanding to the operator.
8-Separate automatic reset selection switch to control the rotation and lateral extension movement; Which can be take off when it is no need.
9-20 second main motor start alarm sound and flash light to warn around people leave away.
10-Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repairment.
11-General gross weight: 2500-3400kgs; General volume dimension: 4-7cubic meter (with packing)

Remarks:

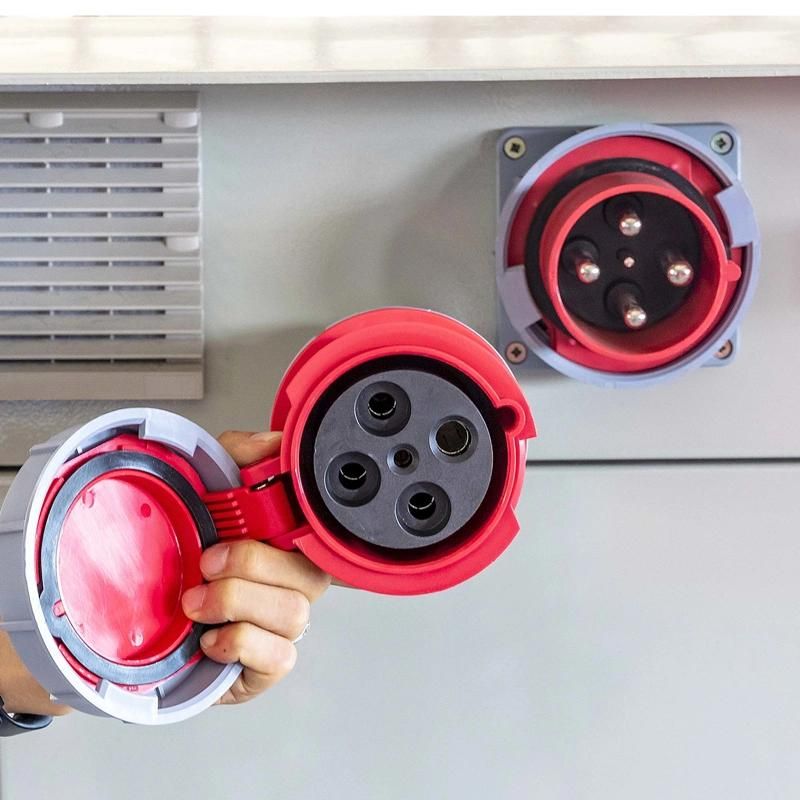

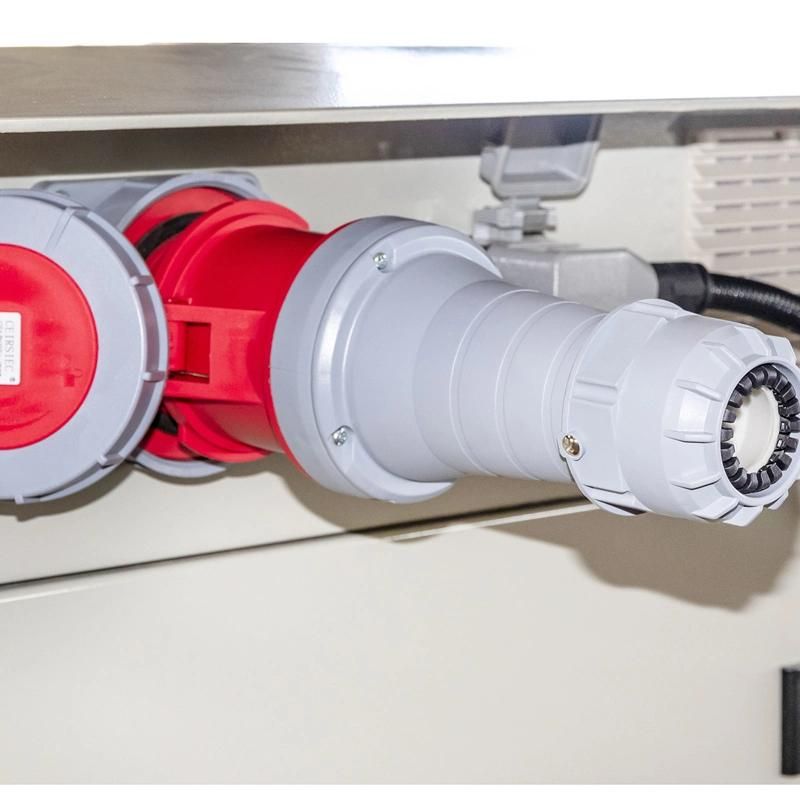

1-Standard power supply is 3-phases, 380Volts, 50Hz, other types could be ordered by customer.
2-We are in a position to design the Wire Saw Stone Machinery as per customer special requirement.





Package and Shipping:

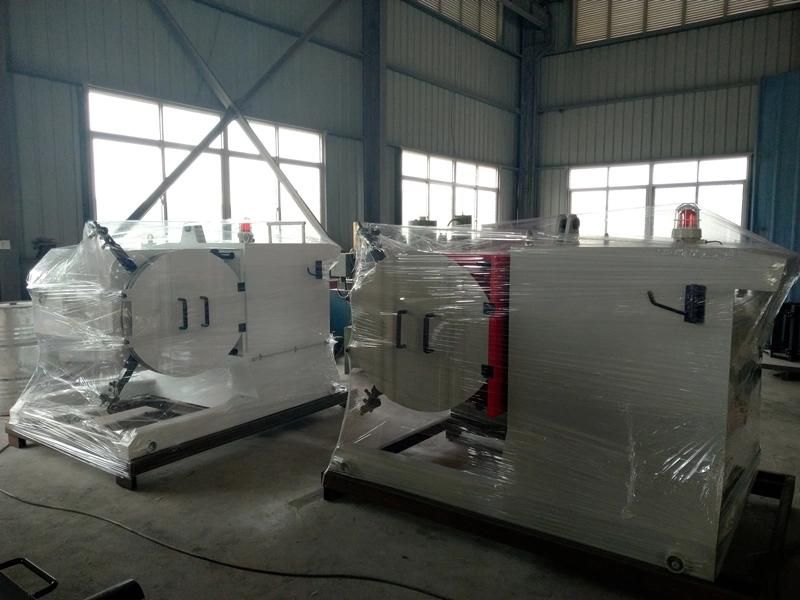

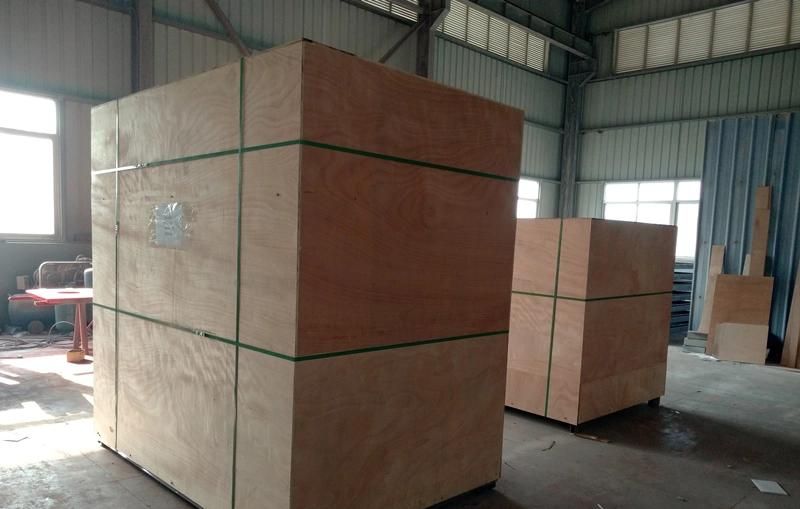

Package: Crate with waterproof plastic
Delivery time: Within 14 days after confirmation of payment




Our Services:
1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
ALWAYS AT YOUR SERVICE--KEENTOOL
