• Model NO.：HC
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Intermediate Crusher
• Finished Surface：Thread Process
• Certification：CE, ISO, CCC
• Condition：New
• Color：as Required
• Material：Q235A
• Motor：Cummins
• Installation：Offer Foundation Drawing, Guided
• Guarantee：1 Year(Wearing Parts Excluded)
• Capacity：50-1900t,H
• Transport Package：Wood Box, Container
• Specification：ISO9001: 2000 Quality Management Standard
• Trademark：Sanme
• Origin：China
• HS Code：84742090
• Production Capacity：15-1500t,H

Basic Info.

Model NO. HC Compressive Strength (For Crushing) >300MPA Crushing Degree Intermediate Crusher Finished Surface Thread Process Certification CE, ISO, CCC Condition New Color as Required Material Q235A Motor Cummins Installation Offer Foundation Drawing, Guided Guarantee 1 Year(Wearing Parts Excluded) Capacity 50-1900t/H Transport Package Wood Box, Container Specification ISO9001: 2000 Quality Management Standard Trademark Sanme Origin China HS Code 84742090 Production Capacity 15-1500t/H

Product Description

Product Description

HC/HSI SERIES IMPACT CRUSHER

By many years experience, Sanme has developed the HC Series lmpact Crusher with advanced level. The crushing chamber is optimized, the rotor is designed in heavy duty, and the fixing device of blow bar is improved to provide a higher reliablity degree. Humanized design makes the maintenance more convenient.The HC Series Impact Crusher can be used in primary, secondary and tertiary crushing stages.

CAPACITY

50-1900t/h

MAX FEEDING SIZE

300mm-1600mm

RAW MATERIALS

limestone, construction waste

APPLICATION

Aggregates, cement and recycling industry

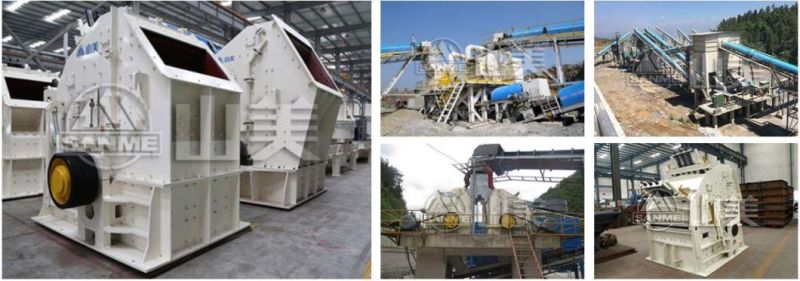

PRODUCT DISPLA

FEATURES AND TECHNOLOGY ADVANTAGES OF HC SERIES IMPACT CRUSHER

Optimized crushing chamber, higher capacity
The crushing chamber of HC series impact crushers is optimized, which obtains extra capacity, improves crushing reduction and lower your capital costs.
Bigger feed opening design, bigger material crushed
By optimization, HC series impact crushers use enlarged feed opening design, which can crush bigger material. When crushing medium hard material eg. Limestone, they can replace jaw crusher. Especially in crushing oversized concrete in the construction waste, they have more advantges.
Adding grinding cavity design (Optional), wide application
With the design of grinding cavity, HC series impact crusher achieves bigger crushing ratio, lower discharge opening and excellent product shape. More choice for customers makes more application.
Heavy rotor design and unique blow bar fixing system provide reliability
HC series impact crushers adopt heavy rotor design, which not only improves reliability, but also increases moment of inertia of rotor and capacity. The fixing of blow bar is improved to make the exchange easy and fixing reliable.
Reliable overload and tramp iron protection device
For the protection of the rotor body and blow bars, the HC series impact crushers optimize overload and tramp iron protection device. The impact aprons retract under excessive load. As soon as the load value returns to normal, the impact aprons resumes its pre-set position, and operation continues without interruption.
Easy to maintain, high reliability and safety
The hydraulic power unit is used by HC series impact crusher for easy adjustment of setting. It is convenient for checking, maintaining and changing wear parts.

PRODUCT USAGE OF HC SERIES IMPACT CRUSHER

HC Series Impact Crusher can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical industries, etc.

PRODUCT DATA



Technical Data of HC Series Impact Crusher:

Model	Max Feed Size(mm)	Throughput(t/h)	Motor Power(kw)	Overall Dimension(L×W×H)(mm) ( the biggest size )	Weight(Motor not included)(t)
HC128	300	40-70	37-55	3115*1600*2932	11.8
HC139	400	50-80	55-75	3060*2048*2935	14.6
HC239	500	100-180	110-132	3095*2048*2970	14.7
HC255	500	100-290	132-160	3095*2398*2970	17.4
HC359	700	180-350	200-250	3415*2666*3127	22.2
HC459	750	220-450	250-315	3717*3020*3301	27
HC579	800	250-550	400-500	3552*3547*3231	36.2
HC679	1000	400-700	560-630	4019*4064*3652	53.2
HC779	1300	500-850	630-800	4785*4338*4849	79
HC798	1300	750-1100	800-1250	4825*4838*4849	90.8
HC898	1500	1000-1500	1000-1600	5382*5445*5454	112.8
HC8118	1600	1500-2000	1400-2000	5382*5945*5454	135.5
HC8138	1600	1800-2500	1600-2100	5348*6527*5454	158.8
HC10158	1900	3600-4000	2800-3150	6120*7210*6250	212.3

Technical Data of HSI Series Impact Crusher:

Model	Max Feed Size(mm)	Throughput(t/h)	Motor Power(kw)	Overall Dimension(L×W×H)(mm) ( the biggest size )	Weight(Motor not included)(t)
HSI379	350	240-460	250-280	3271*3527*2730	23.23
HSI498	400	275-560	280-355	3755*3522*2833	27.2
HSI5118	450	375-825	500-710	3552*4547*2746	36.2
HSI6118	500	600-900	800-900	3733*5272*3306	56.2
HSI7138	500	875-1490	900-1250	4785*5838*4120	78

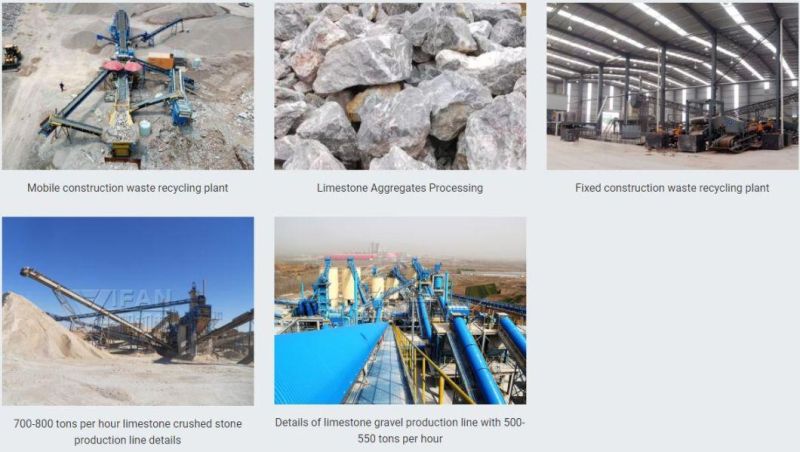

Application

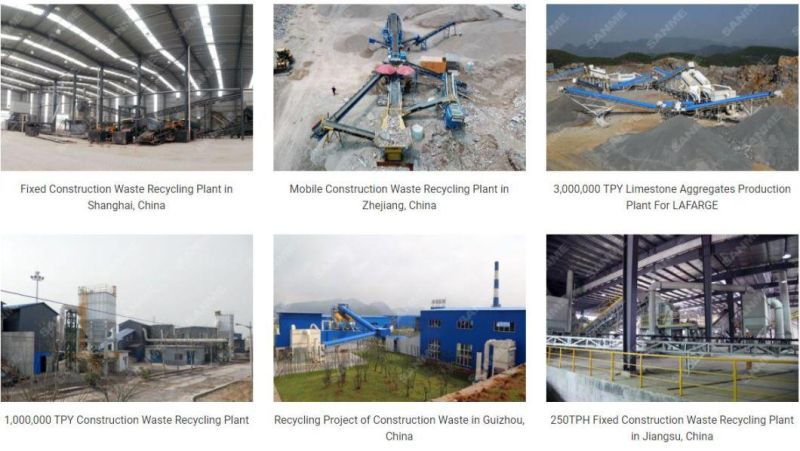

RELATED PROJECTS
Customer visit
Certifications:

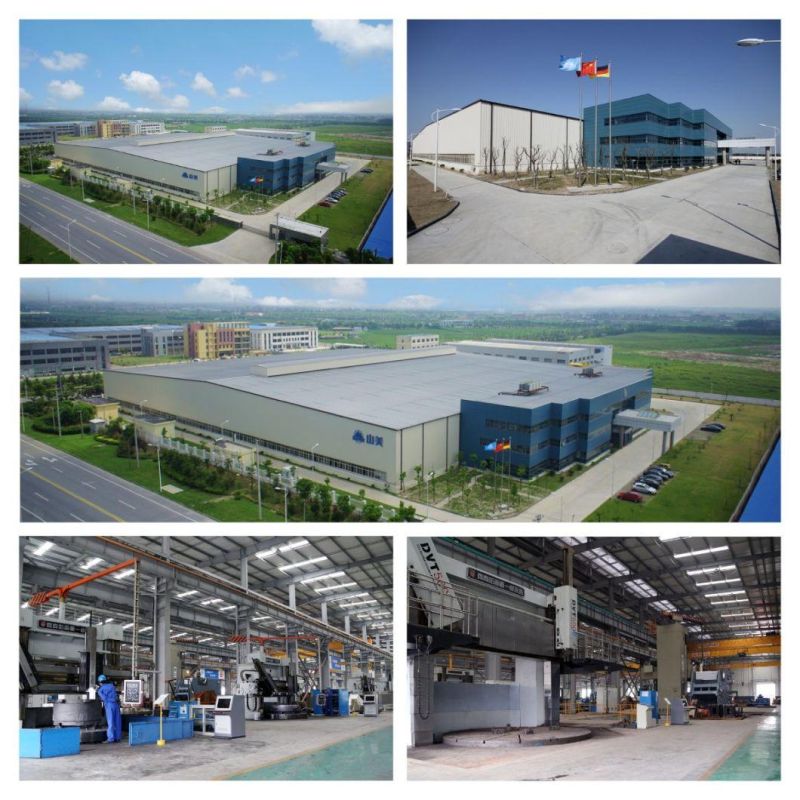

About us
Shanghai SANME Mining Machinery Corp., Ltd. is a leading manufacturer of crushing and screening equipments in China, a Sino-German joint venture holding company.
With modern manufacturing capability and excellent R&D teams of professional engineers, we have devoted ourselves all the time to research and develop new products and technologies since its establishment, which make our developed products achieve advanced world standard.
We not only can offer full range of crushing and screening equipments, including jaw crusher, cone crusher, impacter, VSI, screen, fine sand recovery, mobile crushing and screening plants, but also provide total solutions. Especially the developed construction waste recycling equipment based on our professional experience for many years has attained internationally advanced level.
Our products are widely applied in the fields of aggregates processing, construction waste recycling and mineral processing, meanwhile, we have exported to more than 100 countries and regions in the world. Our aim is to provide reliable products and services for global customers and create values for our customers.
