High Tech Auto Tile Cutter Marble Cutting Machine Stone Bridge Cutting Machine (HQ400-600-700)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service：24 Hours on Line Services
- Warranty：1 Year Warranty
- Type：CNC Cutting Machine
- Usage：Granite, Marble, Quartz Sandstone Limestone Other Engineered Stones
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：HQ400-600-700
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE
- Table Size：3200*2000mm
- Max. Cut Size：3200*2000*230mm
- Blade Tilting：45 Degrees
- Table Tilting：85 Degrees
- Table Rotating：360 Degrees
- Spindle Motor：18.5kw 25HP
- Total Power：26.5kw
- Weight：7500kg
- Transport Package：Plastic Packing
- Specification：6*5.7*3.5m
- Trademark：AGA
- Origin：Xiamen, China
- HS Code：84641010
- Production Capacity：200 Sets,Month
Description
Machine introduction with pictures:

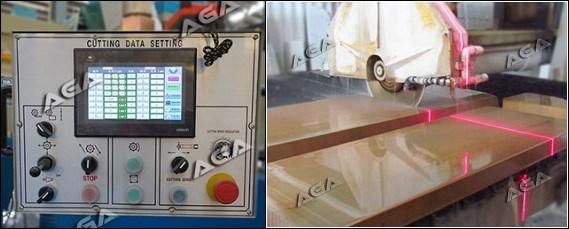

Machine main structures is made of strong cast iron and stainless steel for protection.This machine is an infrared one with laser guide, showing precision cutting everytime. All functions are operated on the color touch screen which provide easy operation.
The hydraulic table can tilt 85 degrees for easy load of materials and rotate 0-90 degrees to change the cutting position. Table rotating 0-360 degrees is optional, if customers need, we can make it.

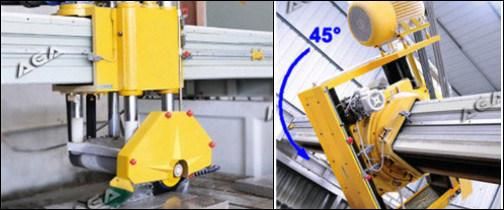

The blade goes left and right, up and down, the bridge beam moves forward and backward. Blade tilting 45 degrees for miter cuts is optional for model HQ700. If you need the auto miter cuts, model HQ700 is preferable.
This machine is microcomputer control and works automatically by program, it provides fast and easy operation.
It's a robust machine that provides fast and easy cuts on granite marble stones, if you need a reliable machine with good price, this is exaclty what you need.
FAQ:1) Payment:
T/T 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
AGA Machinery:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
