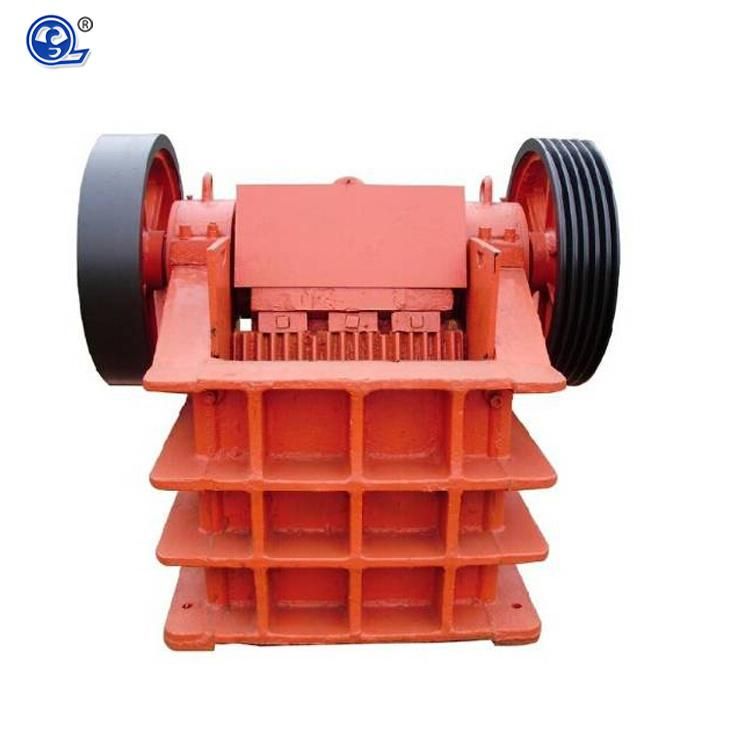

Stone Ore Mining Machine of Jaw Crusher Recycling Machine
Mingxin Metallurgy Equipment Co., Ltd.- After-sales Service：Engineer Offer You Guide Installation
- Warranty：12 Month Guarantee
- Type：Jaw Crusher
- Application：Mineral Industry, Stone Industry
- Drive：Electric
- Crushing Style：Grinding & Impact
Base Info
- Model NO.：MX-PE250
- Compressive Strength (For Crushing)：>300MPA
- Crushing Degree：Coarse Crusher
- Certification：CE, ISO
- Condition：New
- Color：Customize
- Input Size(Mm)：180*320
- Capacity (Kg/H)：3000-5000
- Motor Power(Kw)：11
- Dimensions(Mm)：650*850*800
- Rotate Speed(R/Min)：1400-1800
- Transport Package：Wood or Steel Pack
- Specification：wood or steel pack
- Trademark：Mingxin
- Origin：Jiangxi, China
- HS Code：8479820090
- Production Capacity：1000sets,Month
Description
Overview
Product Description
20~800t/h
Product Presentation

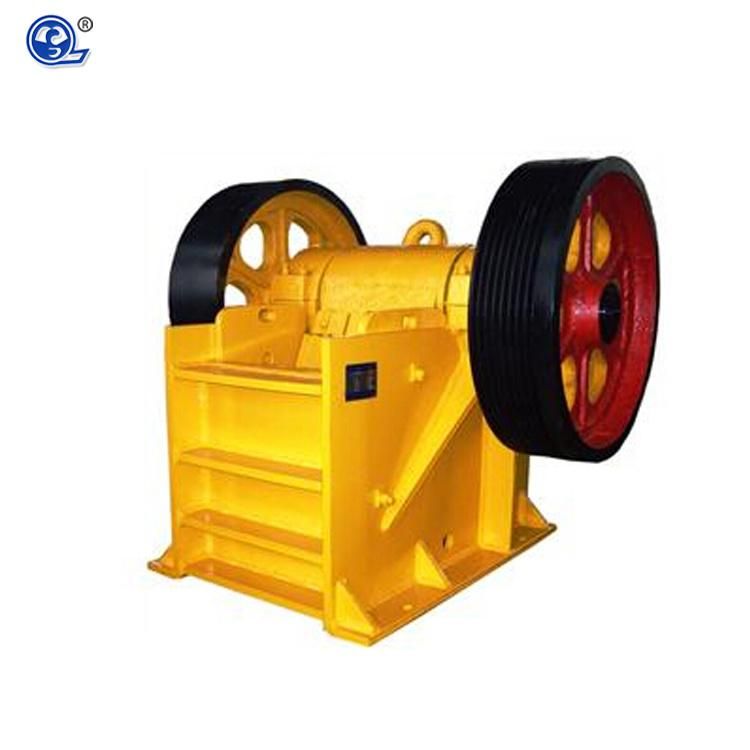

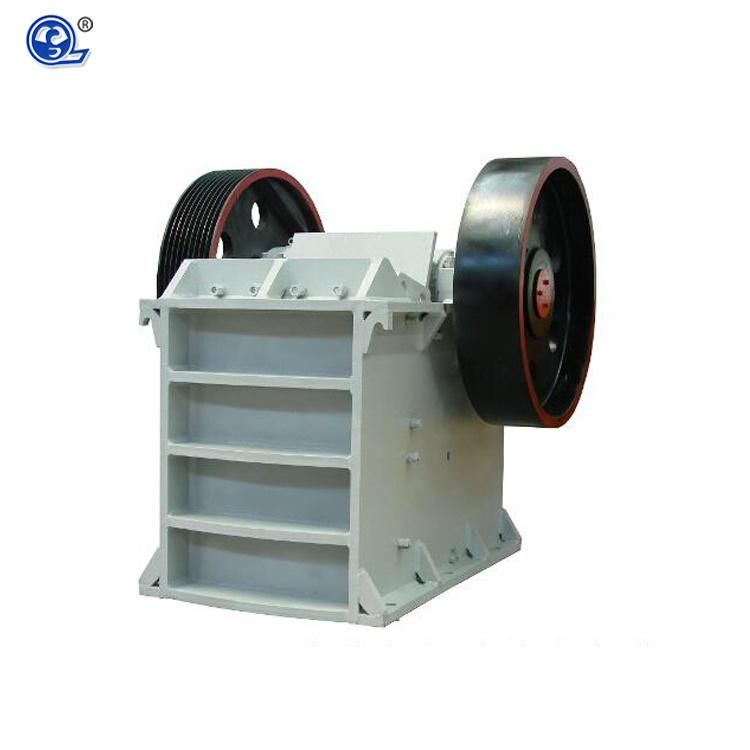

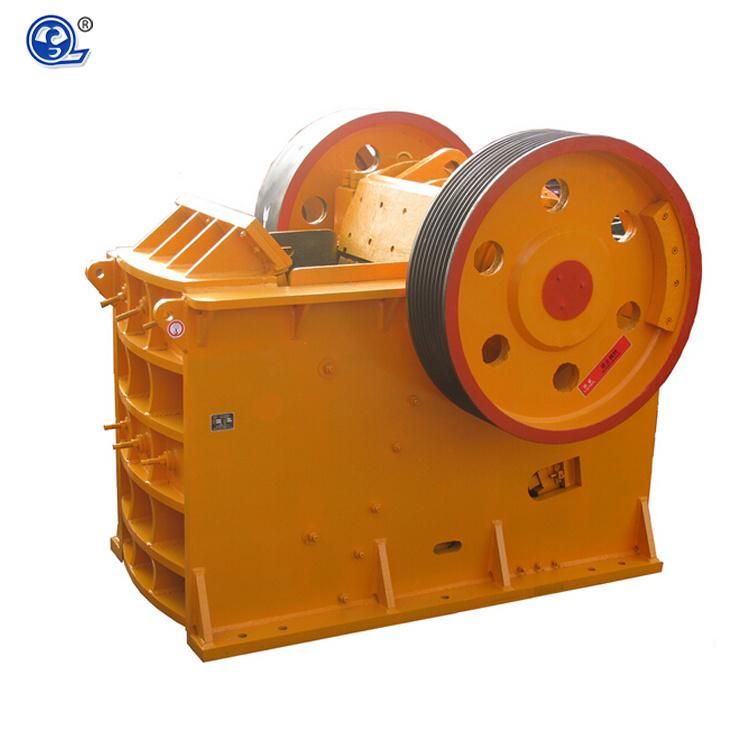

Jaw crusher is widely used for mine, metallurgy, building material, highway, railway, water conservancy etc. section, used for dispose for coarse crushing or secondary crushing of large granularity and various ore or rock those compress strength are less than 320Mpa.
Advantage
It has advanced moving jaw assembly, which can keep the machine much more wear well.
Large reduction ratio of deep cavity, cavity shape optimization design, efficient crushing.
Adopted the newest arc-shaped jaw, enlarged the useful length of the jaw board, lead to a larger capacity.
Technical Parameters
Product Parameters
Model Feed size(mm) Max. feeding size(mm) Outlet size(mm) Capacity(t/h) Eccentric gear speed(r.p.m) Motor model Power(kw) PE150×250 150×250 125 10-40 1-3 300 Y132S-4 5.5 PE250×400 250×400 210 20-80 5-20 275 Y180L-6 15 PE400×600 400×600 350 40-100 25-64 300 Y250M-8 30 PE600×900 600×900 480 75-200 56-192 250 JR117-8 80 PE750×1060 750×1060 630 80-140 110-242 250 Y315M2-8 90 PE900×1200 900×1200 750 100-200 128-256 250 JR126-8 110 PEX150×500 150×500 120 10-40 6-28 325 Y200L-8 15 PEX150×750 150×750 120 10-40 8-35 320 Y180L-6 15 PEX150×1000 150×1000 120 10-40 22.5 350 Y225M-8 22 PEX200×1000 200×1000 160 10-40 12-50 320 Y200L2-6 22 PEX200×1200 200×1200 160 10-40 15-60 320 Y280S-8 37 PEX250×600 250×600 210 10-40 7-22 320 Y200L2-6 22 PEX250×750 250×750 210 15-50 15-35 300 Y250M-8 30 PEX250×1000 250×1000 210 15-50 15-50 330 Y280S-8 37 PEX250×1200 250×1200 210 15-50 20-60 320 Y280M-8 45 PEX500×750 500×750 425 50-100 20-65 250 Y280M-6 55
FAQ
Product Capacity
20~800t/h
Product Presentation
Jaw crusher is widely used for mine, metallurgy, building material, highway, railway, water conservancy etc. section, used for dispose for coarse crushing or secondary crushing of large granularity and various ore or rock those compress strength are less than 320Mpa.
Advantage
It has advanced moving jaw assembly, which can keep the machine much more wear well.
Large reduction ratio of deep cavity, cavity shape optimization design, efficient crushing.
Adopted the newest arc-shaped jaw, enlarged the useful length of the jaw board, lead to a larger capacity.
Technical Parameters
Product Parameters
Product Table
FAQ1. How long is the product warranty period ?
A: the product warranty period is 12 months since shipping date.
2. I am a foreign customers, if the machine works wrong, how your company solved ?
A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.
3.Where can we buy the machine's parts?
A: Our company can provide machine`s parts for your any time.
4.What's the trade terms and payment terms?
A:We usually quotated for FOB/Ex-work/CIF price.Payment TT in advance/paypal account/wester union....
5. Voltage in your country(price here based on 380v,50hz,3phase )?
A:220v/240v/380v/440v/480v or other customized available
