• Model NO.：PE Series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai Zenith
• HS Code：8474209000
• Production Capacity：40-500tph

Basic Info.

Model NO. PE Series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Year Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai Zenith HS Code 8474209000 Production Capacity 40-500tph

Product Description

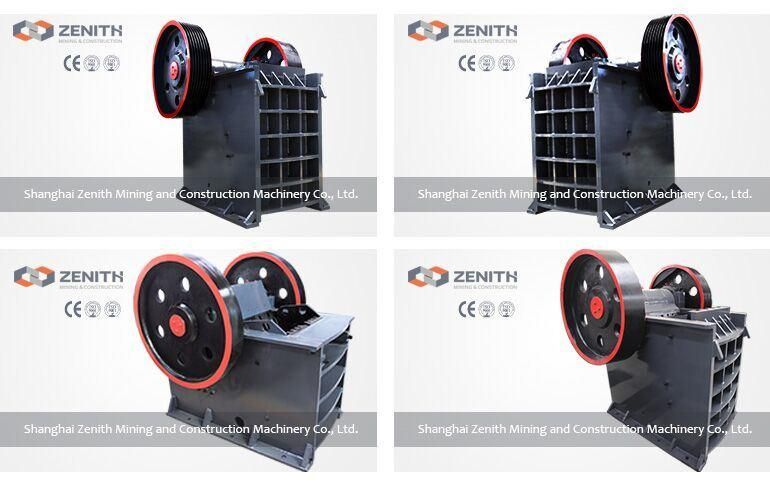

 Introduction of Zenith Stone Crusher, Rock Crusher Machine:

Stone Crusher, Rock Crusher Machine is widely used at home and aboard, for primary crushing of hard rocks and block materials. The large and medium-size crushers are the key products of our company and stand in the front of the industry in the aspect of design and production.

 Application of Stone Crusher, Rock Crusher Machine:

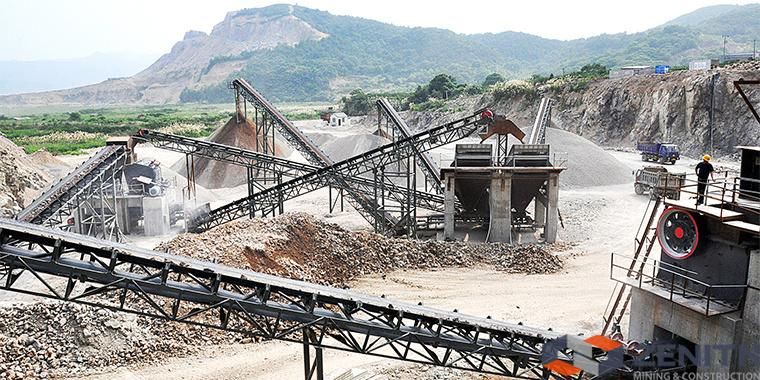

Stone Crusher, Rock Crusher Machine is widely used in mineral, quarry, building materials, road, railway, water conservancy and hydropower. The angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the effection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.


Stone Crusher, Rock Crusher Machine Performance advantages

1. The deep cavity broken efficient energy saving
2.Strong bearing capacity, high stability
Greater forging billet machining heavy eccentric shaft, high manganese steel jaw, as well as higher cast movable jaw assembly equipment morecarrying capacity, higher stability.
3.Advanced technology, long service life
4.Centralized lubrication system, easy maintenance
The unique design of centralized lubrication systems, components lubrication faster maintenance workload.
5.Simple structure, easy maintenance
Complex tilting basic principle streamline redundant parts, equipment overall structure is simple and efficient, strong crushing capacity, easy operation and maintenance, low operating costs.
6.The material adjustment range, the use of a machine
Gasketed discharge adjustment device, a material adjustment range, and increase flexibility in the equipment used to meet the customers a variety of processing requirements.
7.Low noise, less dust
Equipment with reference to the national environmental standards, low noise, and the equipment dust construction environment in full compliance with environmental requirements.

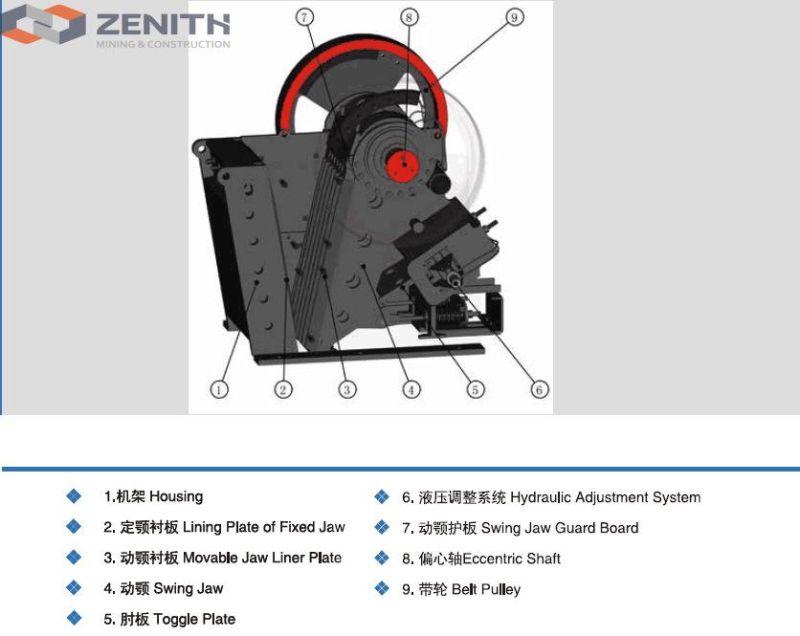

Stone Crusher, Rock Crusher Machine Working principle

The motor-driven belt and pulley, the up and down movement of the movable jaw by the eccentric shaft when the movable jaw rises, the angle between toggle plate and moving jaw becomes larger, thus promoting the moving jaw plate close to the fixed jaw plate, its material is crushed or split pieces to achieve the purpose of crushing; When the movable jaw down, the toggle plate and moving jaw angle between the smaller, movable jaw plate trolley, spring next, to leave the fixed jaw plate, the crushed material is discharged from the crushing chamber mouth. With the continuous rotation of the motor broken motor jaw the periodic motion crushed and excreta material, to achieve mass production



Stone Crusher, Rock Crusher Machine technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
