• Model NO.：SJ-2000A
• Control：Automatic
• Certification：API, ISO, CE, SGS
• Main Motor：7.5kw
• Diameter of Wire：8.6-10.8mm
• Table Dimension：2000*1300mm
• Main Motor Brand：Siemens
• Working Table with Encoder：Optional
• Max. Cutting Size：2000*2000*1500
• Program：Computerized by Panasonic PLC
• Transport Package：Water-Proof Plastic Bubble Wrapping and Steel Wire
• Specification：6810*5354*3770mm
• Trademark：Wanlong
• Origin：Quanzhou City, China
• HS Code：8464101000
• Production Capacity：50sets Per Month

Basic Info.

Model NO. SJ-2000A Control Automatic Certification API, ISO, CE, SGS Main Motor 7.5kw Diameter of Wire 8.6-10.8mm Table Dimension 2000*1300mm Main Motor Brand Siemens Working Table with Encoder Optional Max. Cutting Size 2000*2000*1500 Program Computerized by Panasonic PLC Transport Package Water-Proof Plastic Bubble Wrapping and Steel Wire Specification 6810*5354*3770mm Trademark Wanlong Origin Quanzhou City, China HS Code 8464101000 Production Capacity 50sets Per Month

Product Description

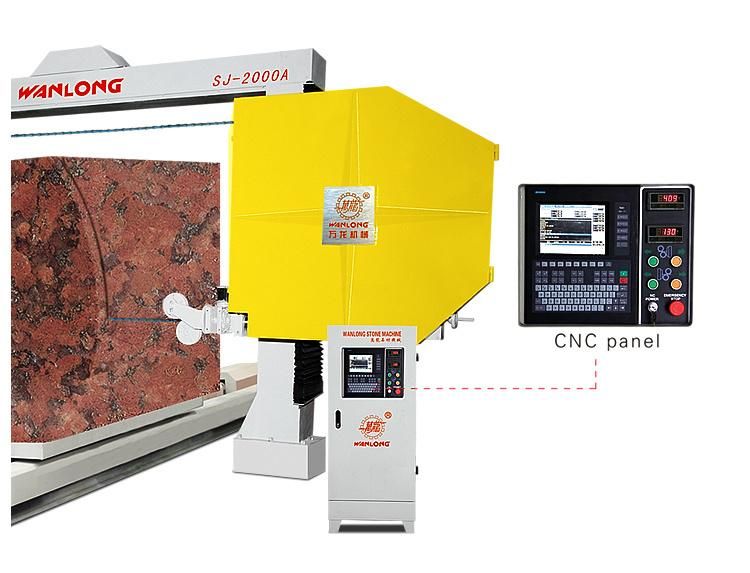

Stone Marble Granite CNC Diamond Wire Saw Cutting Machine SJ-2000A

Ideal machine for diverse, complex, 2-dimensional surfaces processing, such as circular stone plates, character, roman column slab and so on
Feature

1. Independent guide rails equipped on the columns make the flywheel move up and down smoothly
2. Flywheel works stably that improves the service lifetime of the diamond wire saw
3. Stable and constant stretch on the flywheel enhances the cutting accuracy
4. Guide wheel adopts a four-layer sealed protection system to greatly improve the machining precision
5. Linear cutting speed is adjustable according to different cutting requirements
6. CNC system makes the human-machine interface easy and flexible
7. The protective cover is waterproof and highly durable

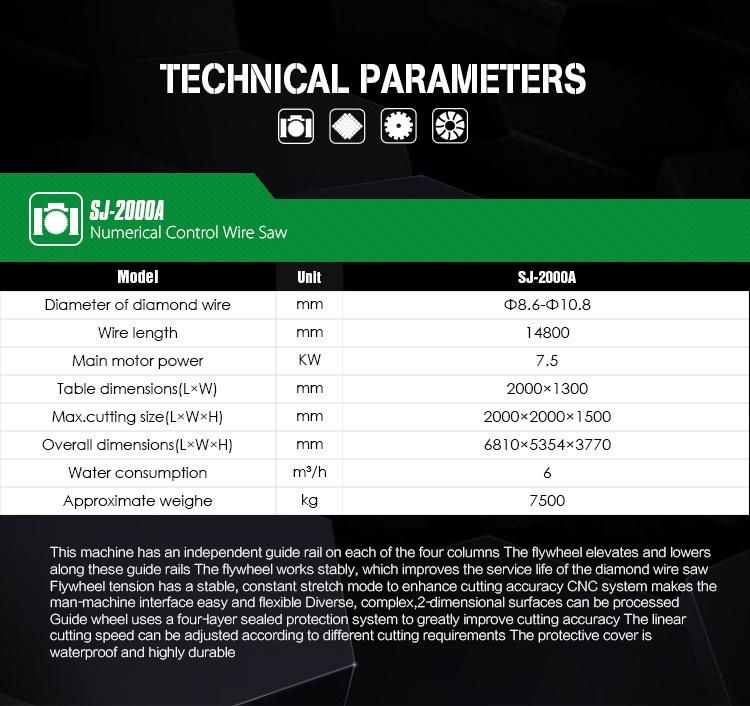

Technical Parameter

	SJ-2000A
Diameter of wire saw (mm)	8.6-10.8
Wire length (mm)	14800
Linear cutting speed (m/s)	22-33
Water consumption (cbm/h)	6
Max. cutting size (mm)	2000x2000x1500
Overall dimension (LxWxH/mm)	68100X5354 X3770
Total weight (kg)	7500

This machine can be design without CNC function; it is only for block squaring.


Packaging & Shipping
DELIVERY TIME:

35-45days as per produciton schedule and quanity.
if your order is in our  stock, we can effect shipment once received your payment

PACKAGE:
Suitable for seaworthy container shipment

WARRANTY:
12 MONTHS

SHIPMENT WAY:
-by sea:  can be Less than Container Load and Full Container Load; freight is according to the shiping company  quoation to your seaport.
-you can consult us when you make inquiry.

Our Services
Service:
- fast deliver time: 7- 15 days.
  to rough idea: most of order lead time is 7 days-10days.
-consistent quality control:
 Raw material: have advanced device for diamond, powder ete inspection;
 Production: production procedure been strictly controlled by quality controlled department;
 Finshed product: All produced product has been inspetion and approved before shipment.
-any quality related problem that we are care and will solved for client.
