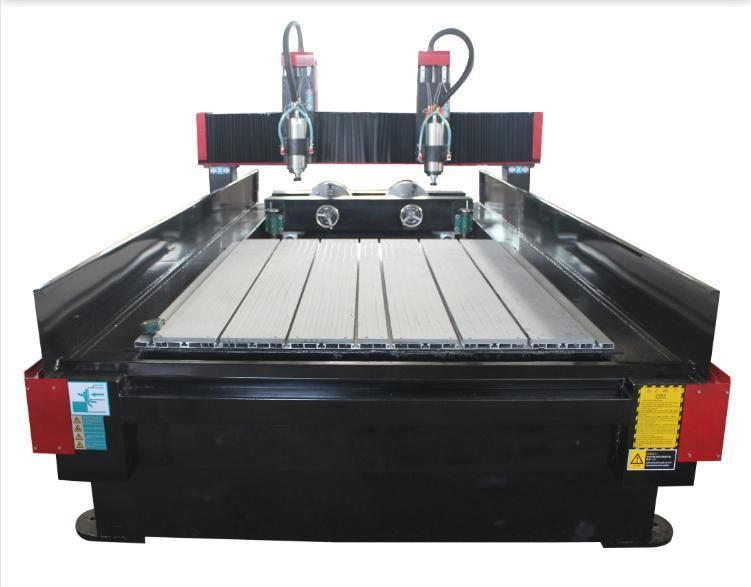

1325 CNC Stone Engraving Machine
Jinan Zhongke CNC Equipment Co., Ltd.- Warranty：1 Year
- Function：Cutting, Line Engraving
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
Base Info
- Engraving Head Speed Adjustability：Wide Adjustable Range
- Certification：CE
- Current：AC
- Application：Glass, Stone Industry
- Customized：Customized
- Working Area：1300*2500*300mm
- Spindle：Water Cooling Spindle
- Spindle Speed：0-24000rpm
- Table：Aluminum T-Slot Table
- Transmission：Helical Rack
- Motors：Stepper Motor
- Control System：Ncstudio Control System
- Inverter：Sunfar Inverter
- Delivery Time：15 Working Days
- Transport Package：Exporting Plywood Package
- Specification：CE
- Trademark：ZHONGKE
- Origin：China
- HS Code：8465990000
- Production Capacity：100 Sets,Month
Description
Model
ZK-1325
Machine lathe
Whole thicker seamless steel structure
Work dimensions
1300*2 500*300mm
Max. feeding height
300mm or bigger
Working table
Aluminum T-slot table with stianless steel water tank
Guide way
Imported HIWIN square orbit from Taiwan
Driving mode
XY-axis rack pinion, z-axis ball screw
Mechanical precision
0.02mm
Repositioning accuracy
0.05mm
Max. Speed
10m/min
Working speed
0-6m/min
Driving motor
big power 110 Stepper motor and 2811 driver
Software
Type 3, Art cut, Art cam and Ucancam software
Voltage
AC 380V 50Hz or 220V 50Hz
Spindle
5.5KW water cooling spindle
Spindle speed
0 - 24,000rpm/min
Blade diameter
3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm
Control system
Ncstudio control card system
Command
G code, u00, mmg, plt
Auxiliary device
Rotary chuck
Certification
CE

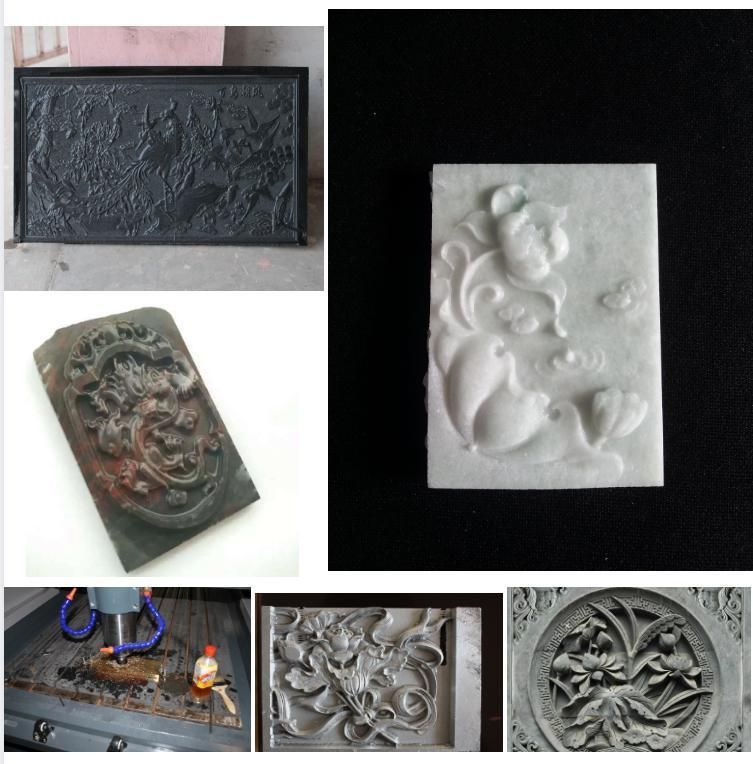

Sample photos
If you want to engrave stone column material, then you need add the rotary attachment
