• Model NO.：BSC-1325
• Automation：Semi-automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：CE
• Model：Bsc-1325
• Working Area：1300*2500mm
• Spindle：4.5kw Water Cooling Spindle
• Max. Feeding Height：260mm
• Spindle Speed：0-24000rpm
• Working Mode：Stepper
• Table Structure：Seamless Cast Steel
• Processing Precision：±0.05mm
• Guide Rail：X,Y,Z Square Linear Guide Rail
• Working Voltage：380V50Hz3p
• Transport Package：PE Film Package or Plywood with Steel Tube Case
• Specification：CE, SGS, TUV
• Trademark：Baoyuantong
• Origin：Weifang City, Shandong Province, China
• HS Code：84649012
• Production Capacity：80sets Per Month

Basic Info.

Model NO. BSC-1325 Automation Semi-automatic Cutting Ability High Speed Control CNC Certification CE Model Bsc-1325 Working Area 1300*2500mm Spindle 4.5kw Water Cooling Spindle Max. Feeding Height 260mm Spindle Speed 0-24000rpm Working Mode Stepper Table Structure Seamless Cast Steel Processing Precision ±0.05mm Guide Rail X,Y,Z Square Linear Guide Rail Working Voltage 380V50Hz3p Transport Package PE Film Package or Plywood with Steel Tube Case Specification CE, SGS, TUV Trademark Baoyuantong Origin Weifang City, Shandong Province, China HS Code 84649012 Production Capacity 80sets Per Month

Product Description

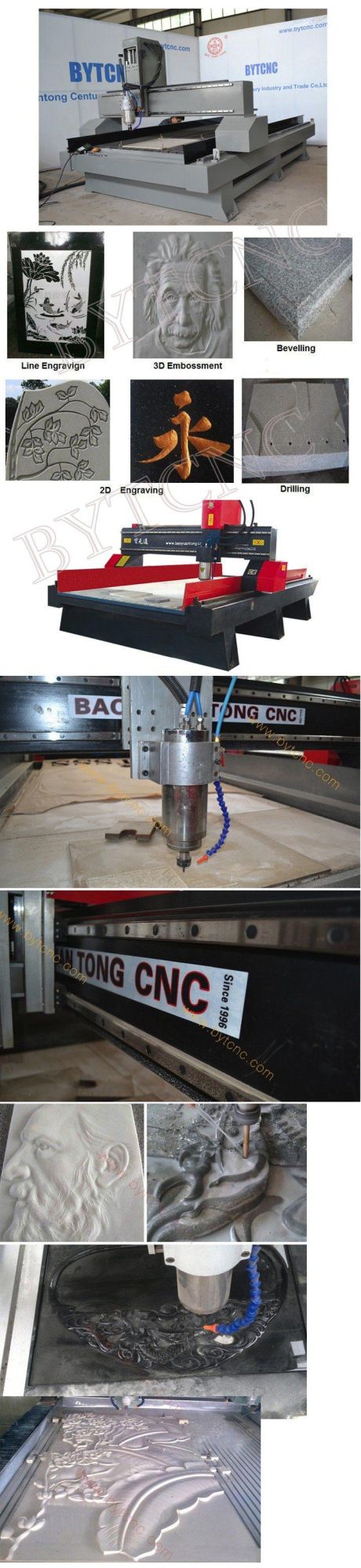

                                                                     3D CNC Stone marble router machine for engraving
Applicable industries :

Woodworking industry: classical annatto furniture products processing
Advertising industry: advertising signs, logo production, acrylic cutting, suction plastic mould, Various material advertising decorative products production
Other industry: Stone-shadow carving, anaglyph, widely used in craft gift industry
Applied to: aluminum plate cutting industry, aluminum plate, aluminum composite panel, aluminum honeycomb panel, aluminum, 3 d ornamental engraving technology, wave plate production, all kinds of man-made plank abnormity cutting, LED, the neon light channel literally cut, blister light box mould manufacturing. Acrylic, copper plate, PVC board, artificial stone, MDF board and other kinds of plate processing

All models can be customized according to customers special request

Characteristics:
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2.  Powerful stepper motor driver, imported linear guide rails , running smoothly, high accuracy, long time service.
3. High precision pinion and rack transmission, , could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. Water cooling knife, when carve metal and stone use
6. Portal frame: The heavy steel gantry structure, which can guarantee the stability of equipment operation .
7.After choose heavy weight ,portal frame: Squat sitting structure , when carve metal and stone more steady.
8. Aluminum table +PVC+ sink
9.4.5kw water cooling spindle
10. The advanced professional control system compatible with many instruction format, may achieve  process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.

Model	BSC-1325
X. Y axis travel	1300Χ 2500mm
Max. Z axis travel	260mm
Platform dimensions	1360Χ 3000mm
Max. operating speed	10m/min
Max. carving speed	8m/min
Resolution	0.025mm
Resetting accuracy	0.025mm
Carving command	G mode*, u00*. mmg*. plt
Guide rail	Import straight party rail
Spindle	3kw water-cooling spindle (option 4.5 kw )
Operating voltage	AC380V/50Hz
Spindle speed	0-24000rpm
Driving mode	high precision pinion and rack
Operating mode	Stepper
Working table	Aluminum table +PVC+ sink
Compatible  Software	Type3  software,   Wentai  software,   Artcam  software
Working  Software	Windows98/2000/XP
Control  system	Nc-studio  or DSP, March3
Working voltage	380V 50HZ 3P
Free tool	2 imported tools
