• Model NO.：CP90SA
• Source Voltage：380V
• Automation：Semi-automatic
• Cutting Ability：High Speed
• Control：Artificial
• Certification：CE
• Splitter Power：20t and 40t
• Fuctions：Stamping, Splitting, Cutting
• Color：Green
• System：Hydraulic
• Transport Package：by Plywood Case
• Specification：CE
• Trademark：BESTLINK
• Origin：China
• HS Code：84791090
• Production Capacity：1000sets Per Year

Basic Info.

Model NO. CP90SA Source Voltage 380V Automation Semi-automatic Cutting Ability High Speed Control Artificial Certification CE Splitter Power 20t and 40t Fuctions Stamping, Splitting, Cutting Color Green System Hydraulic Transport Package by Plywood Case Specification CE Trademark BESTLINK Origin China HS Code 84791090 Production Capacity 1000sets Per Year

Product Description

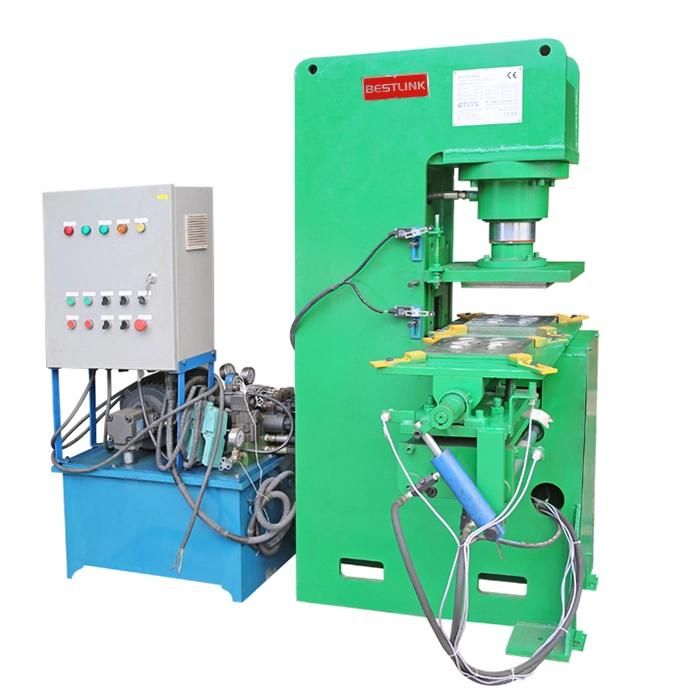

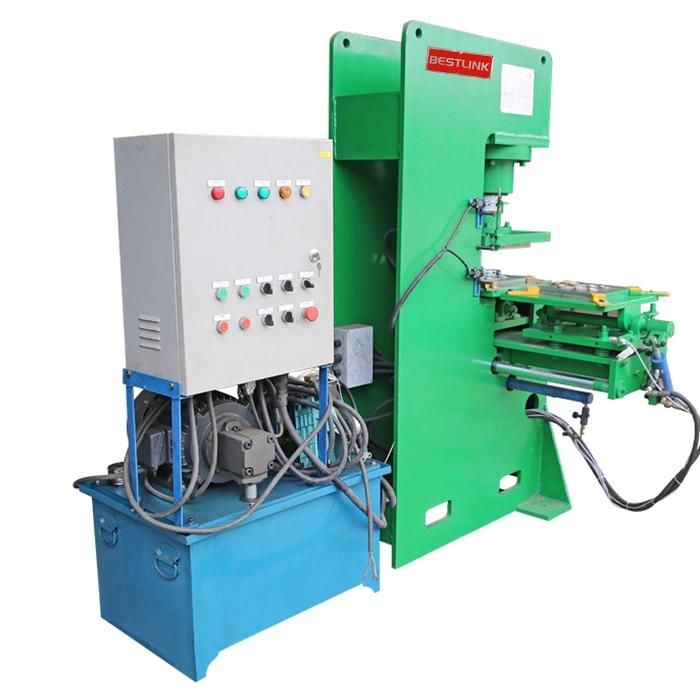

Semi-automatic stone recycling machine CP90SA

Specifications
1. Stone pressing machine
2. Max pressing thickness: 10 cm
3.40 dies provided
4. Automatic working
5. Low maintenance cost.

XIAMEN BESTLINK STONE PRESSING MACHINE

As a leading factory for waste slab and block processing, Bestlink has supplied the professional stone machines to many countries, like USA, Norway, Egypt, Brazil, India, Russia and Mexico, etc. From the feedback from our clients all of the world, the quality of the machines from Bestlink is getting better and better, and more and more clients are gonna to have the stamping machine and splitting machines.

With these high quality components, our machines get a high performance and has a long life.
What's more, the clients can replace the components very easily in his own country when any problem happened.

The latest model of the stamping machine has 3 functions: Stamping (pressing), cutting, splitting.

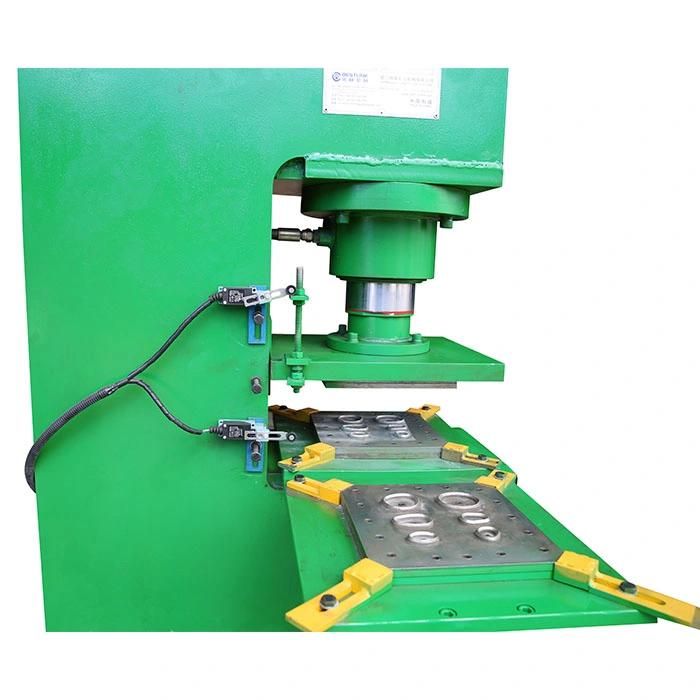

There are 40 different moulds (dies) for the stone stamping machine. Clients can choose it by themselves.

Technical data:

Model	CP90-20T	CP90-40T	CP90SA	CP90FA	CP90-70T-A
Hydraulic pressure	20Mpa	20Mpa	20Mpa	20Mpa	20Mpa
Splitting power	20T	40T	40T	40T	70T
Electric motor power	4kw	7.5kw	7.5kw	9.0kw	7.5kw
Max.slab stamping size	30cm×30cm×3cm	30cm×30cm×5cm	30cm×30cm×5cm	30*30*5cm	40*40*10cm
Max splitting length	30cm	35cm	Semi-automatic	Fully-automatic	35cm
Max splitting height	1-5cm	5-8cm	1-5cm	1-8cm	1-12cm
Machine size	80*100*150cm	80*100*150cm	80*100*150cm	230*95*185cm	100*95*150cm
Weight	750kg	900kg	1000kg	1500kg	1200kg
Fuctions	stamping,cutting,splitting	stamping,splitting,cutting	stamping	stamping,air consumption 1m3/min. full set with air compressor	stamping
