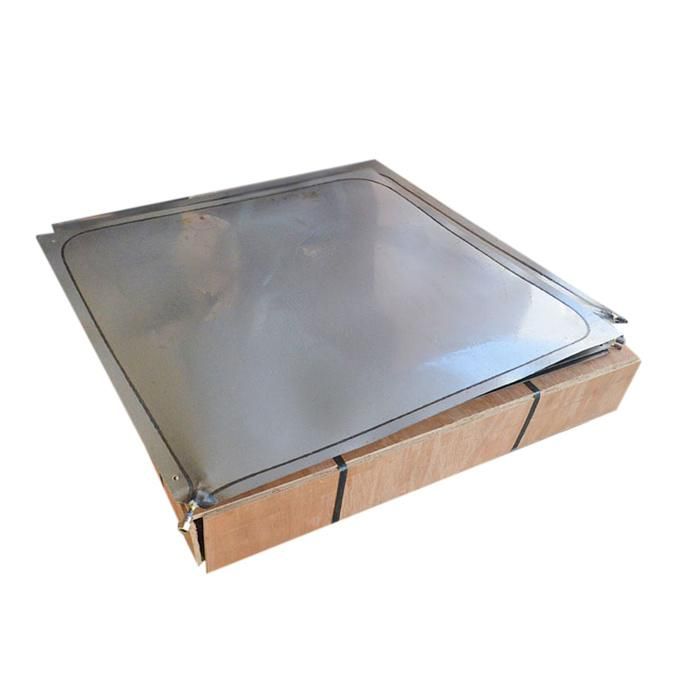

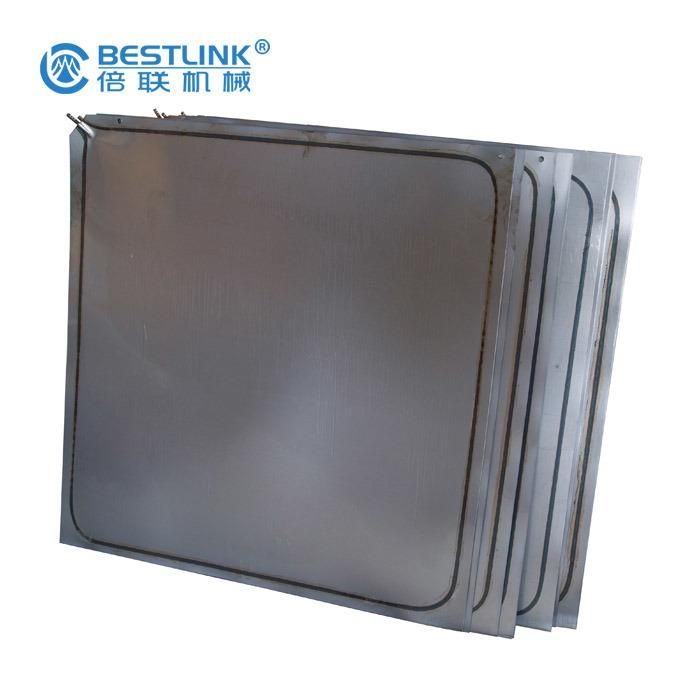

• Model NO.：150*150cm Steel Hydro Bag for Pushing Down Marble
• Trademark：BESLINK
• Origin：Xiamen, Fujian
• HS Code：7309000
• Production Capacity：3000PCS ,Month

Basic Info.

Model NO. 150*150cm Steel Hydro Bag for Pushing Down Marble Trademark BESLINK Origin Xiamen, Fujian HS Code 7309000 Production Capacity 3000PCS /Month

Product Description

2021 High Inflated Pressure Water Filled Steel Hydro Bag for Pushing Down Marble Block

Advantages:
* pushing power up to 1000 tons or even more;
* thickness is just 2 mm (0.08") and can be easily slipped into the wire saw cut;
* Elimination of the time necessary for the preparation of the slots of the jacks;
* the blocks of stone are obtained with their sections intact, without the breaching deriving from the above mentioned slots;
* total elimination of explosive;
* partial or total elimination of hydraulic jacks;
* less noise and dust deriving from the presence of pneumatic hammers;
* respect for the local environment;
* increased safety for the operators;
* no maintenance.

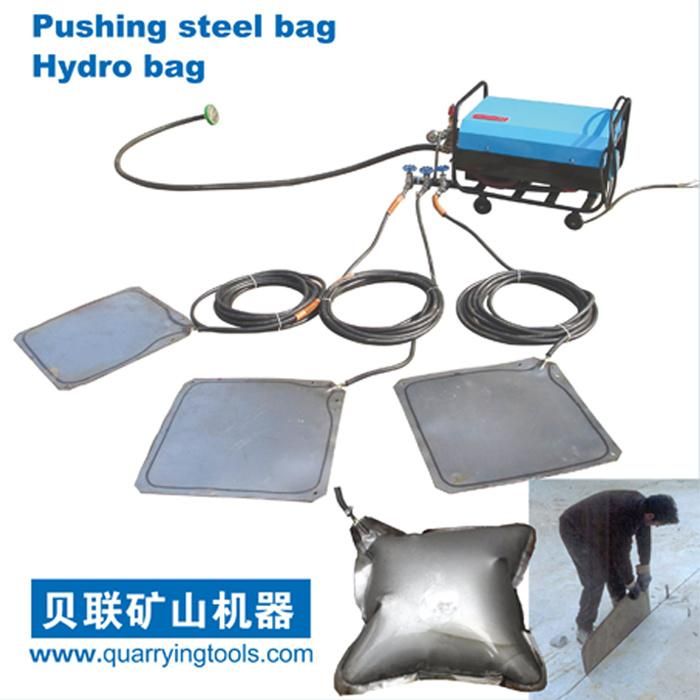

A complete HYDRO-BAG equipment consists of:
1. Electric pump HYDRO-BAG to create the pressure for the cushions
2. Safety valves and distribution valves;
3. Pipes, cocks and inlet filters;
4. Quick couplings
5. A series of HYDRO-BAG cushions.


Specification	Pushing   capacity	Weight
50*50   cm	75   tons	2.5   kg
75*75   cm	168   tons	5.6   kg
100*50   cm	150   tons	5.0   kg
100*100   cm	300   tons	10.0   kg
150*150   cm	675   tons	22.5   kg

Water pump pneumatic or electric are both available.

Model	Power	Power supply	Working pressure	Maximum working pressure	Weight
DS-220	1.6 kw	AC 220V@50Hz	30 bar	50 bar	17 kgs
QD-200	1.0 kw	2m³/min	30 bar	50 bar	18 kgs
