• Model NO.：HLCNC-3319
• Application：Machinery & Hardware, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：UL, ISO, CE
• Tools：Router and Grinder
• Guide Rail：Linear Guide
• Dimensions of Working Table：3300*1900
• Gearing：Rack Gear
• Max. Processing Length and Width：3300mm,1900mm
• Tools Change：Automatcially
• Tools Change Positions：20
• Color：Red and Ivory
• Vacuum Cup：Included
• Stroke(X-Axis)：3300mm
• Stroke(Y-Axis)：1950mm
• Stroke(Z-Axis)：320mm
• Power：7.5kw
• Rotating Speed：0-8000rmp
• Tool Holder Model：Bt40
• Transport Package：Polypropylene Plastics Packing
• Specification：5520*320*230
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month
• Package size per unit product：553.00cm * 320.00cm * 230.00cm
• Gross weight per unit product：5000.000kg

Basic Info.

Model NO. HLCNC-3319 Application Machinery & Hardware, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control CNC Certification UL, ISO, CE Tools Router and Grinder Guide Rail Linear Guide Dimensions of Working Table 3300*1900 Gearing Rack Gear Max. Processing Length and Width 3300mm/1900mm Tools Change Automatcially Tools Change Positions 20 Color Red and Ivory Vacuum Cup Included Stroke(X-Axis) 3300mm Stroke(Y-Axis) 1950mm Stroke(Z-Axis) 320mm Power 7.5kw Rotating Speed 0-8000rmp Tool Holder Model Bt40 Transport Package Polypropylene Plastics Packing Specification 5520*320*230 Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/Month

Packaging & Delivery

Package size per unit product 553.00cm * 320.00cm * 230.00cm Gross weight per unit product 5000.000kg

Product Description

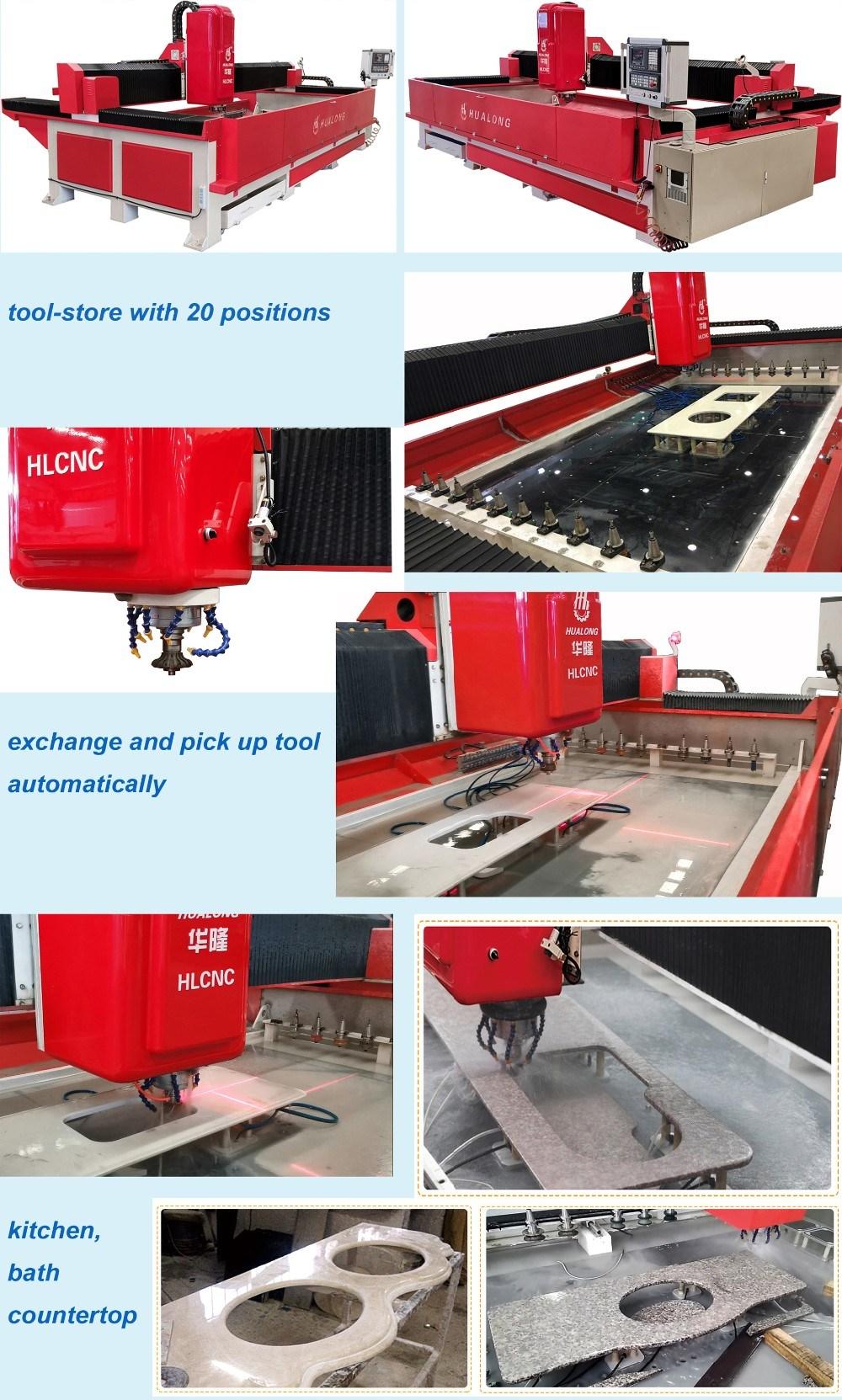

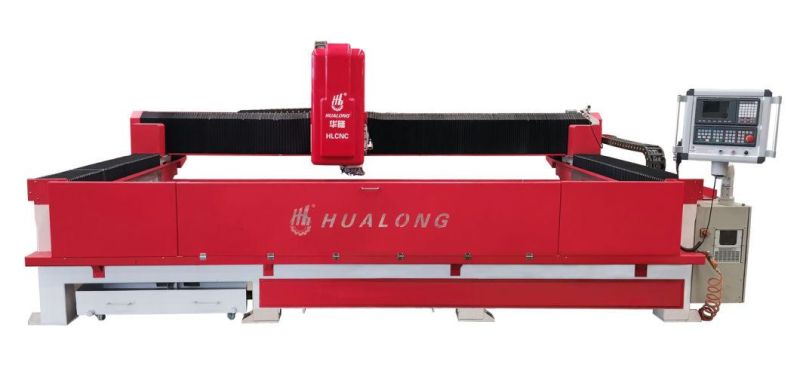

3 axes CNC stone  processing center with the model of  HLCNC3319, is a professional countertop making and polishing machine. The max tools which can be hung are 20 pcs and because of mechanical main spindle used, the cutting and polishing speed is faster than others, and the finished processing products are excellent both inside and outside edges.

With high automaticity, it's easy to operate when using. The main application is listed as followings.

1. Applicable material: all kinds of stone, marble, manmade stone, quartz stone, granite, etc.

2. CNC stone processing center can do many processes, such as drilling, grinding, mainly used for kitchen countertop, bathroom vanity top making by automatic tools changing.

3. It's  maingly featured wtih high efficiency and low processing cost. Router can walk 50cm/ min, and grinder 1m/min.

4. It is easy to operate. There are some common used drawings in map storage, so just select the shapes you want to cut and adjust the cutting size, press "Start", and then the machine can finish job automatically.

5. Linear guideway in  "X, Y, Z" axis to guarantee accuracy and speed


6. Electric components in international standards to be easily sourced

7. Full machine can be loaded in 20 GP container.

Detailed Images

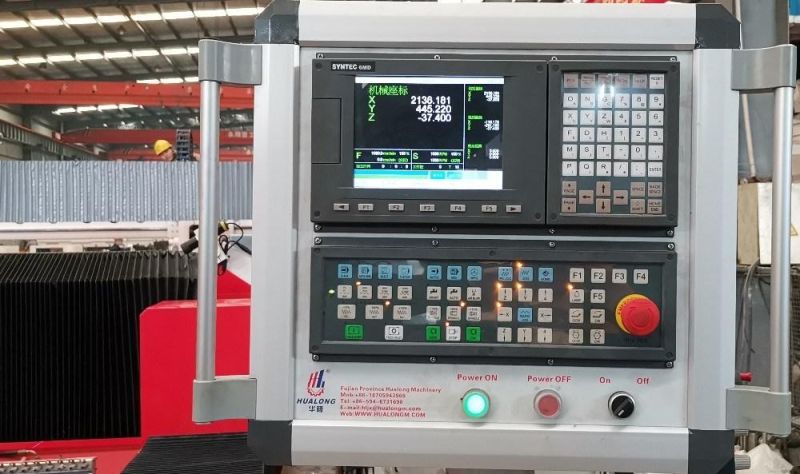

Control Console

Brand: Syntec

Original: Taiwan, China

mounted on a swing arm and  equiped with a touch-screen colour monitor. Friendly user interface and mature application software make daily management easy

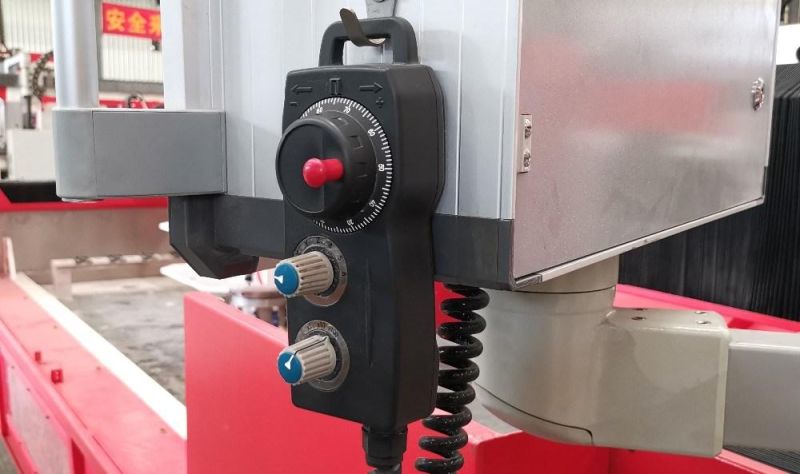

Hand-wheel

wired to the control console, to duplicate the axis mangement, controlling the movement speed and position directly.  It allows the operator to be close to the piece to be machined thus controlling directly some delicately

Machine Parts

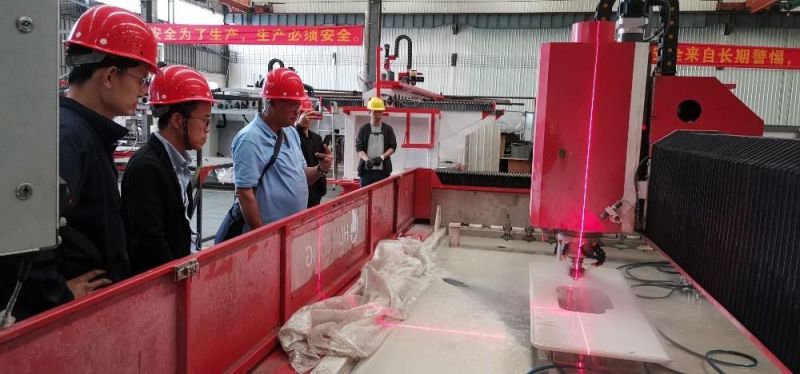

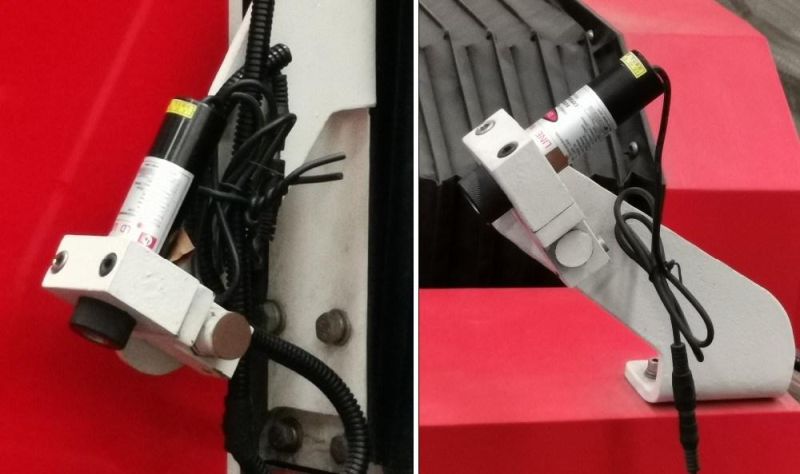

Name: Laser reticule apparatus
Original: China

Used to aid for accurate alignment in processing.

Linear Guide

Brand: Hiwin
Original: Taiwan, China

Famous product, top quality use on crossbeam and carling for good performance.

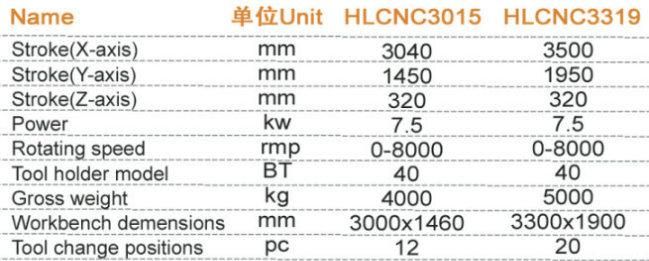

Technical data of the machine shown as below
