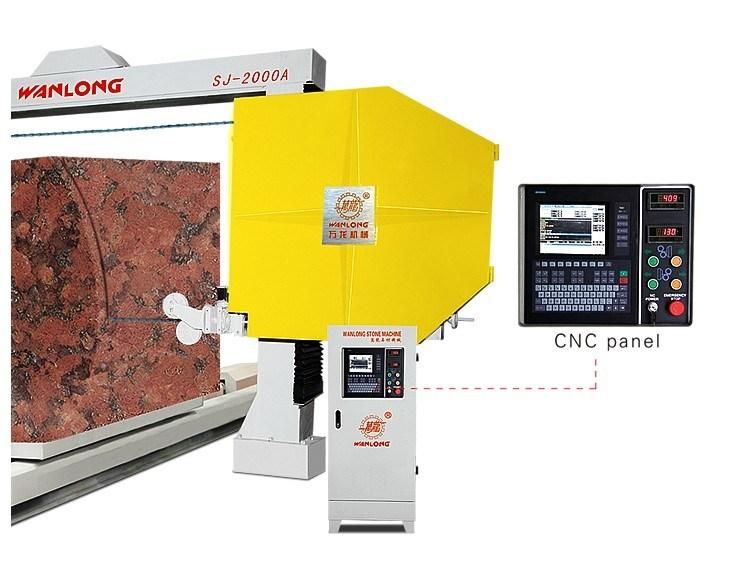

Diamond Single Wire Saw Machine Profile Cutting
Fujian Wanlong Diamond Tool Co., Ltd.- Type：CNC Cutting Machine
- Usage：Ceramics, Glass, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble, Wire Saw for Squaring Block
- Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Block Trimming Wire Saw
- Source Voltage：220V,380V,415V, Available Upon Request
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：SJ-2000
- Control：CNC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Saw Profile Machines
- Product Name：Stone Cutting Wire Saw Machine
- Main Motor Power：7.5kw
- After Sales Service Provide：Engineer Available Service Machinery Overseas
- Warranty：12 Months
- Max. Processing Size：2000X2000X1500mm
- Water Consumption：6m3,H
- Approximate Weight：7.5 Tons
- Quality：European Standard
- Transport Package：Seaworthy Wooden Case for Auto Cutting Machine
- Specification：10000x6065x3915mm
- Trademark：Wanlong
- Origin：Fujian, China
- HS Code：84641000
- Production Capacity：5000sets Per Year
Description
Technical Parameter SJ2000A Diameter of wire rope mm 8.8-10.5 Length of wire rope meter 14.8 Maximum cutting length mm 2000 Maximum cutting width mm 2000 Maximum cutting height mm 1500 Table size mm 2000x2000 Table rotate degree No rotation Main motor kw 7.5 Water consumption cbm/hour 6 Rail length mm 5000 Dimension (LxWxH) mm 6810x5354x3770 Approximate Weight kg 7500 1) size of container : 20 feet container
1) size of container : 20 feet container
2) warranty : 12 months ( excludes easy wear parts)
3) Service: we can send engineer to help the machine installation and use. The buyer request to pay for visa application fees, round trip air tickect, accomodation and meals as well as pocket money for the personnel .
Why choose WANLONG as supplier?
Answer: Wanlong is the only company who are the manufacturer for diamond tools, stone slab and machinery. It has engineer team who has better knowledge in stone processing and the matching between tools and machine.
It is our WANLONG aim to bring the value than your expense and good experience with the stone processing.
