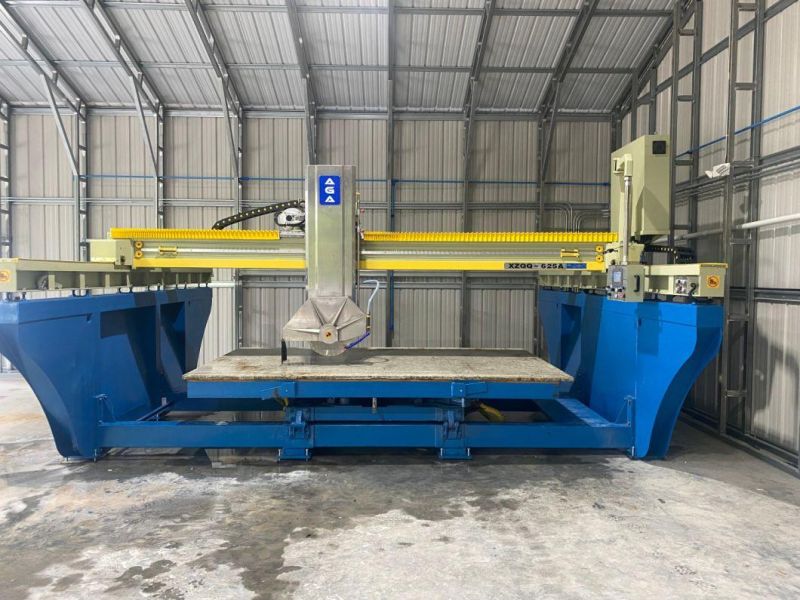

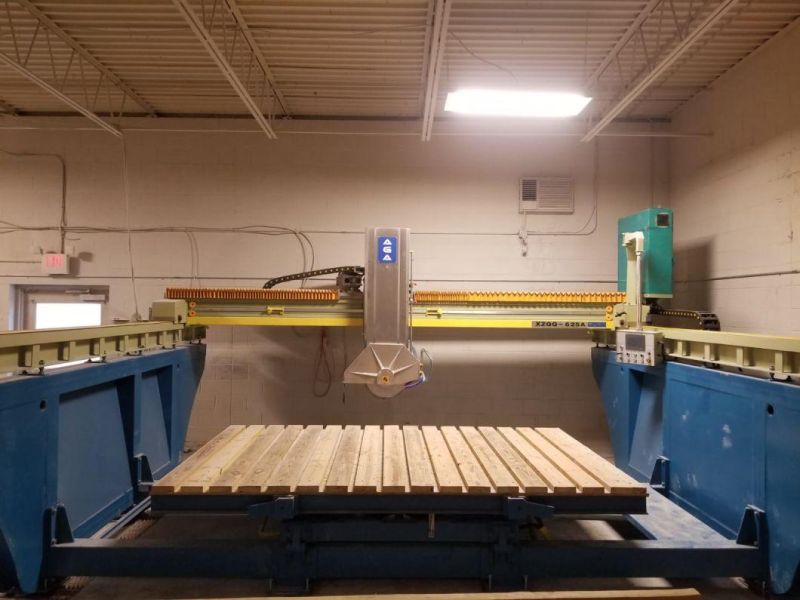

CNC Diamond Bridge Saw Machine for Granite Quartz Countertop Infrared Cutter (XZQQ625A)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：CNC Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：XZQQ625A
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE
- Max. Cut Size (Lxw)：3200X2000 mm
- Max. Cut Thick：170 mm
- Table Tilting：0-85°
- Table Rotation：0-360°
- Blade Tilting：0-45°
- Max. Blade Size：625mm
- Spindle Motor：15 Kw
- Weight：7200kg
- Transport Package：Plastic Packing
- Specification：Dimention: 6x5x3 m
- Trademark：AGA
- Origin：Xiamen, Fujian, China
- HS Code：84641010
- Production Capacity：100sets,Month
Description

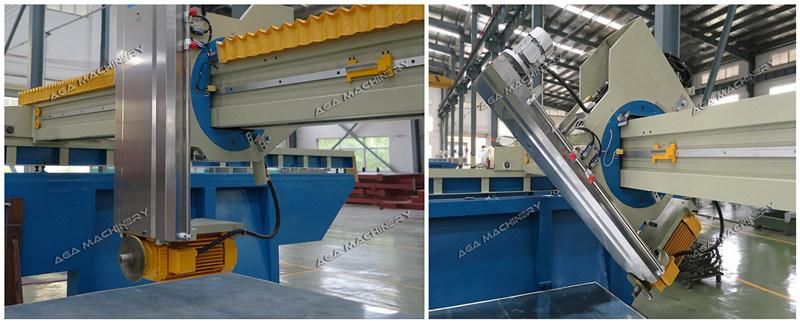

2) Blade&Table
- Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.

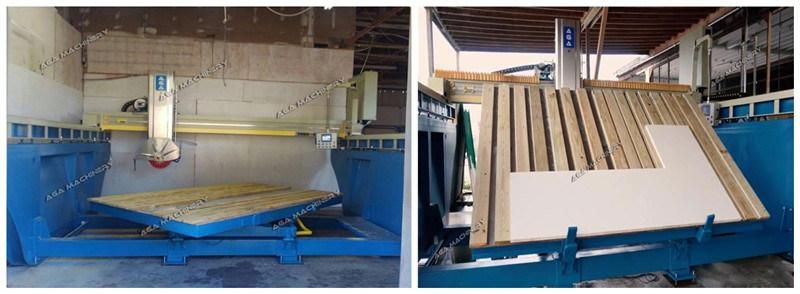

- Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.

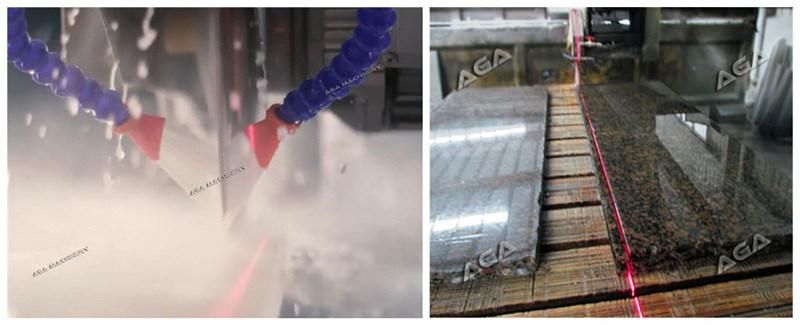

3) Laser guide cutting
The electronic controling cabinet compries.The machine adopt PLC controlling system,variable-frequency drive(VFD) which can provide fine speed regulation,infrared checking and calibration instrument.The laser guide and sensors gives high accuracy for the machining tolerance.

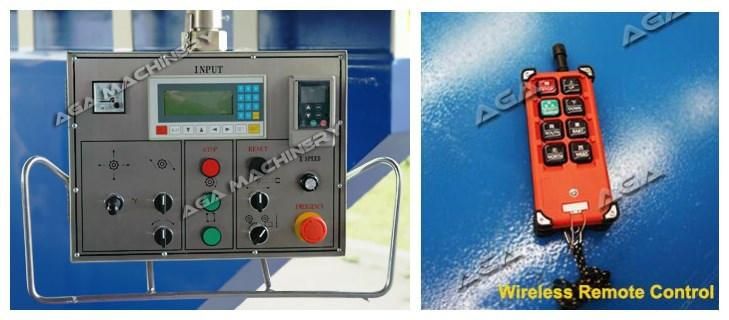

4) Control appliance
-Operation interface combined of human-computer interface and mechanical button, very easy operating, cutting head can be control by cross command switch by hand, real time data display on screen.
- Wireless remote provides ease control of the saw.

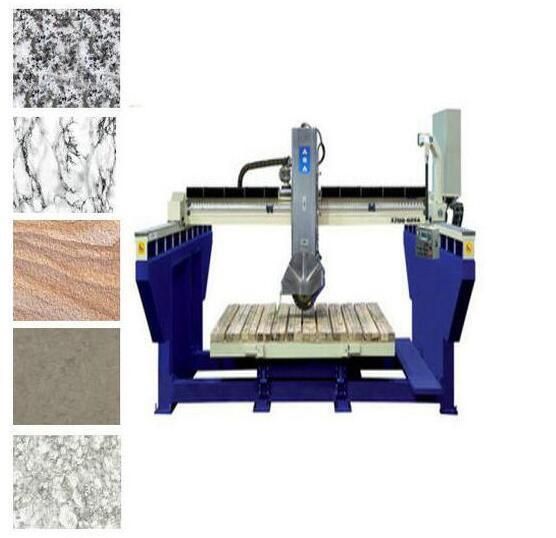

5)Applicable stone range
Granite , Marble, Sandstone, Limestone, Quartz and so on.

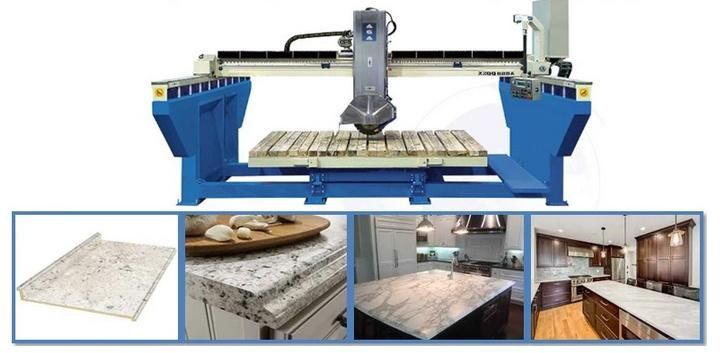

6)Functions
1. Cutting slabs intor various sizes of tiles/cut-size;
2. Processing slabs,tiles,kerbstone,pavingstone, kitchen counter-tops, vanity-tops, monument,fireplaces, shower surrounds, stair, windowsill ... ect.

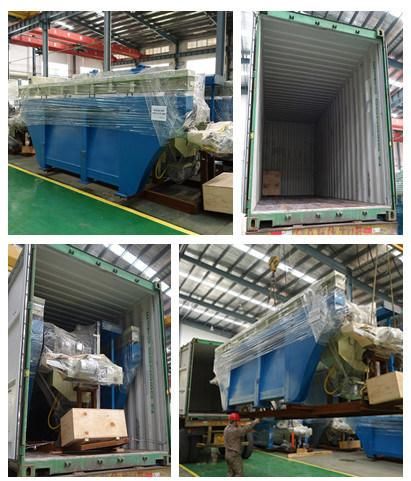

Packing
Keywords: Diamond Cutting Machine, Diamond Bridge Saw, Granite Cutting Machine, Infrared Cutting Machine, CNC Machine, CNC Cutting Machine, 5 Axis Cutting Machine, Bridge Saw Machine for Countertop, Column Cutting Machine for Granite Marble Quartz, CNC Carving Machine,Tile CutterGuarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

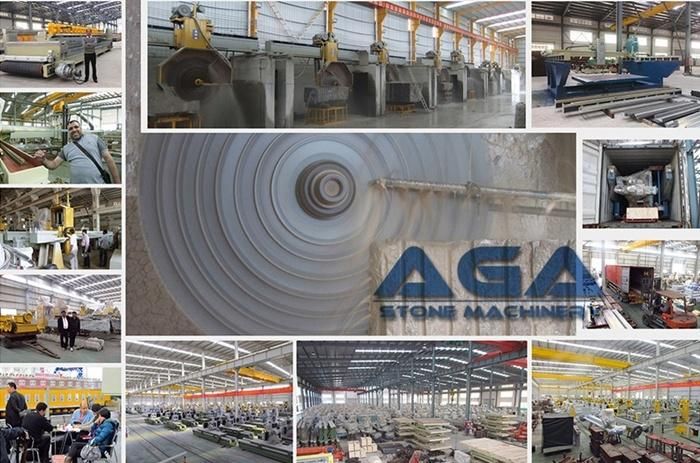

About us:
