• Model NO.：GBLXM-800
• Grinding Machine Type：Vibration Polishing Machine
• Grinding Method：Wet Grind
• Condition：New
• Polishing Head：8,10
• Max.Polishing Width：800mm
• Main Motor：15kw
• Useful Working Thickness：10-50mm
• Speed of Conveyer Belt：0-3000mm,min
• Belt moving motor：4kw
• beam moving motor：4kw
• Diameter of grinding head：D.450mm(can install 6PCS
• No.of calibrating head：2
• Water consumption：9m3,h
• Transport Package：Nude Packing
• Trademark：Great Base
• Origin：Xiamen, Fujian, China
• HS Code：84642090
• Production Capacity：100pieces,Month

Basic Info.

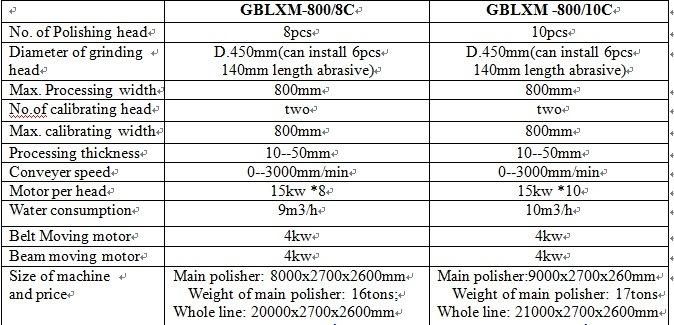

Model NO. GBLXM-800 Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Condition New Polishing Head 8/10 Max.Polishing Width 800mm Main Motor 15kw Useful Working Thickness 10-50mm Speed of Conveyer Belt 0-3000mm/min Belt moving motor 4kw beam moving motor 4kw Diameter of grinding head D.450mm(can install 6PCS No.of calibrating head 2 Water consumption 9m3/h Transport Package Nude Packing Trademark Great Base Origin Xiamen, Fujian, China HS Code 84642090 Production Capacity 100pieces/Month

Product Description

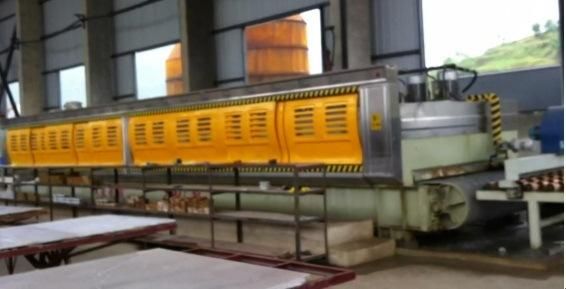

GBLXM-800/2+8C/2+10C Granite Slab Polishing Line
This machine adopts PLC terminal control system, Operator can set the parameters by the programmable controller with LCD screen,. The machine is qualified for continuous grinding and polishing granite stone slabs. Also with two calibrating head, so it can calibrate not same thickness slab to the same,The speed for beam moving one the right/left rails, belt conveyor moving can be adjustable by inverters. Its processing width and working pressure of grinding heads are adjustable. Each grinding head can rise and fall automatically following the workpiece movement. The machine has two operation modes: manual and automatic modes.

 Operation System: This machine adopts PLC terminal control system, Operator can set the parameters by the programmable controller with LCD screen, It is equipped with trouble alarm system. The machine is qualified for continuous grinding and polishing granite slabs. The speeds of conveyor and cross beam can be adjusted by inverters .Its processing width and working pressure of grinding heads are adjustable.

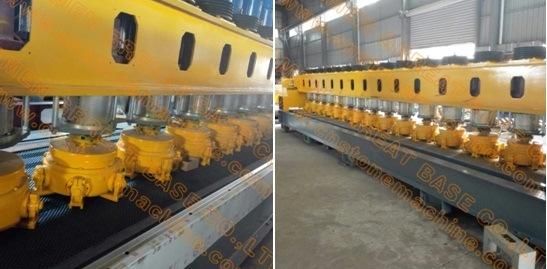

Spindle: Each spindles is milled with high precision and quality. Every spindles disposes of a sturdy belt transmission system that prevents loosening or slipping of the spindles even under stress and a readily accessible greasing system. Each grinding head can rise/ fall automatically following the slab movement by air.
 Frame:The frame is constructed with welded sections. The steel material are all up to chinese standard, high duty enough. The conveyer moves on the machined worktable surface.Between the two inner sides of the frame are mounted four hoisting columns for hoisting the machine. The frame legs are equipped with adjusting screws and anchor stud holes. The workbeanch is milled by big metal processing equipment so that it is flat enough. The main beam is on the roller guideway / linear guideway which is the same as our Bridge Saw, with long using life and more smooth.
      Conveyer:A drum, driven by a variable transmission of the right back end of the machine, drives the conveyer. The transmission can achieve stepless variable drive by inverter, enabling the conveyer to gain different speeds. A screw rod is mounted on each end of the drum from the entrance of workpiece. Adjusting the screw rod not only tension the conveyers but also regulate their movement linearity.
Traverse part: It contains a fixed sliding rail, roller guideway or linear guideway,a movable sliding rail, a cross beam and cross beam driving device. The gear wheel reducer pulls the driving shaft, and then the driving shaft drives the gear wheel and rack to realize traverse part moving back and forth by cross moving motor.
Water system and Lubrication System: Directly on the mobile bridge is located the water distribution system that, it can feed the water to each head. Every spindle disposes of its own system of general lubrication.
