• Model NO.：KXJ-LY-2200
• Control：PLC
• Certification：ISO, CE
• Conditiaon：New
• Loading Container Type：40HQ(HC)
• Transport Package：by Film Package
• Specification：3500× 2000× 1500mm
• Trademark：XINDA
• Origin：Yunfu City, China
• HS Code：84641090
• Production Capacity：50

Basic Info.

Model NO. KXJ-LY-2200 Control PLC Certification ISO, CE Conditiaon New Loading Container Type 40HQ(HC) Transport Package by Film Package Specification 3500× 2000× 1500mm Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 50

Product Description

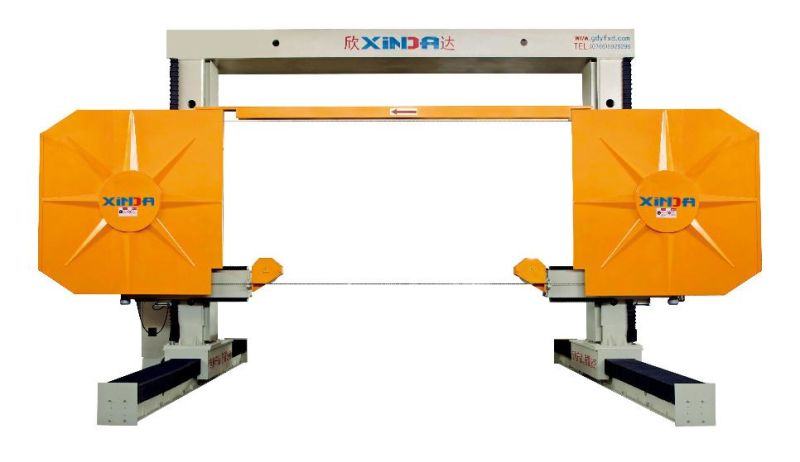

Features: the machine adopts high precision rack and gear meshing transmission to drive the left and right upright column to move synchronously instead of the traditional wire saw whose worktable is driven by screw rod. The advantage is that it overcomes the difficulties of large deformation due to the horizontal setting of the screw rod and the difficulty of processing due to the screw rod is too long, thus greatly improve the product processing accuracy and the service life of the machine, and saving the production cost of users. Meanwhile, it can extend the processing length. This advantage is unmatched by the screw driven worktable structure. This transmission feature is to fill the domestic and abroad gap of the wire saw product.The product has been authorized by the national Patent Office.
Function:The machine is used for cutting slabs and trimming stone.






Brief introduction of KXJ-TY-1500 wire saw machine:
1,the body of machine can move,without trolley.
2,KXJ1500 machine has steady structure, including a crossbeam,two upright column,square box,air compressor tensioning unit,two big flywheel. Left side install a driven big flywheel and air compressor tensioning device.  tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire  between 0-40m/s via inverter. the machine can cut different kind of stone material.
3,In order to reduce the diamond wire wear and keep the diamond wire steady , the machine are equiped with two guide wheels (Diameter: 300mm).

4. The machine will stop automatically and display failures on the screen if wire broken.
5.The machine has a water spray system. if no water or not enough water,the machine will automatically stop.

Technical parameters:

Parameters	KXJ-LY-1500
Diameter of Wire	Φ8-Φ11
Length of Wire	21350mm
Speed of Wire	0-40m/s
Range of Cutter Movement	2200mm
Max Cutting Size(L×W×H)	3600×2000×2100mm
Production Efficiency	1-2m²/h(marble)    0.5-2m²/h(granite)
Main Motor Power	11KW
Water Consumption	3m³/hour
Overall Dimension	9800×6100×5800mm
Diameter of Guide Wheel	Φ300mm
Total Power	23.94KW
Total Weight	13.7T

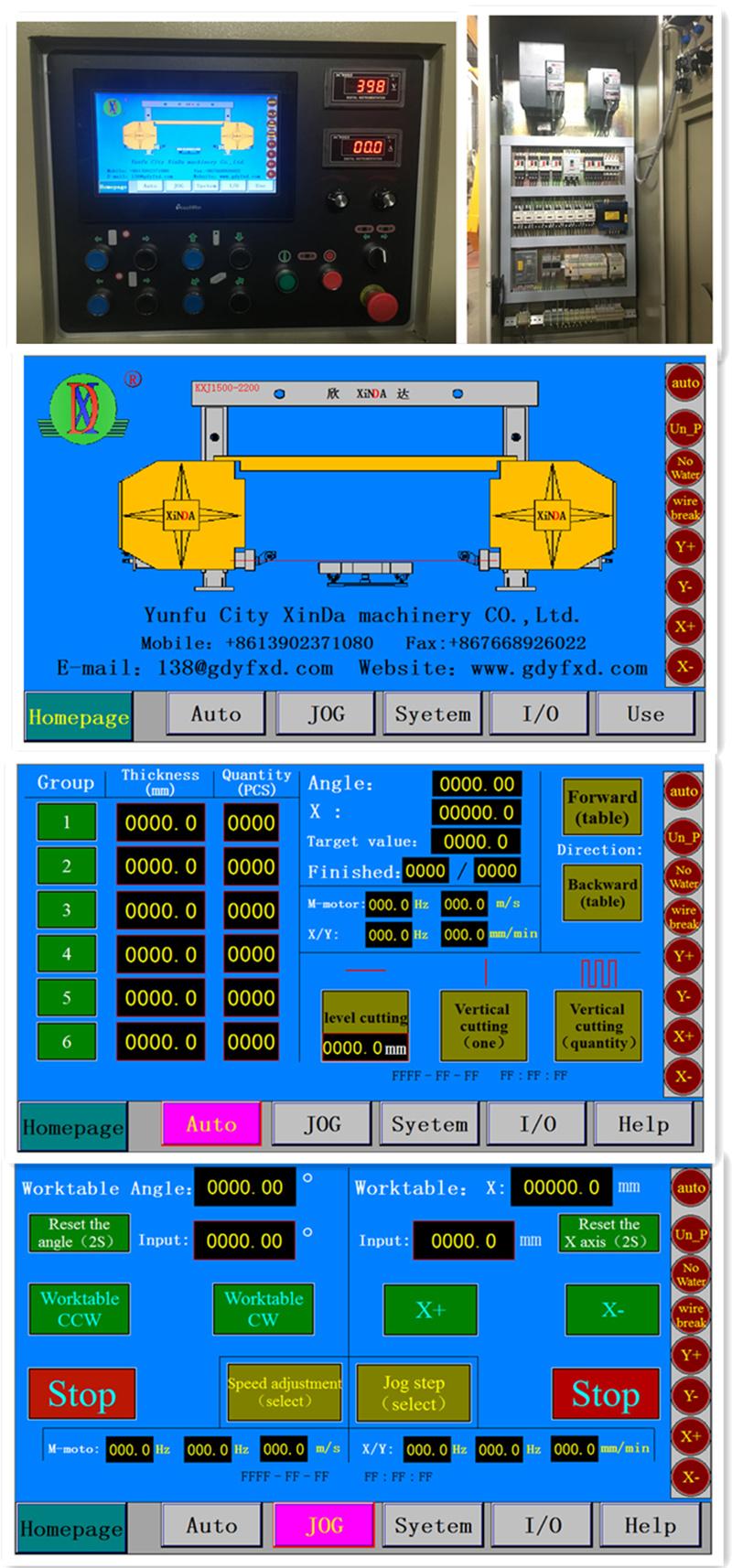

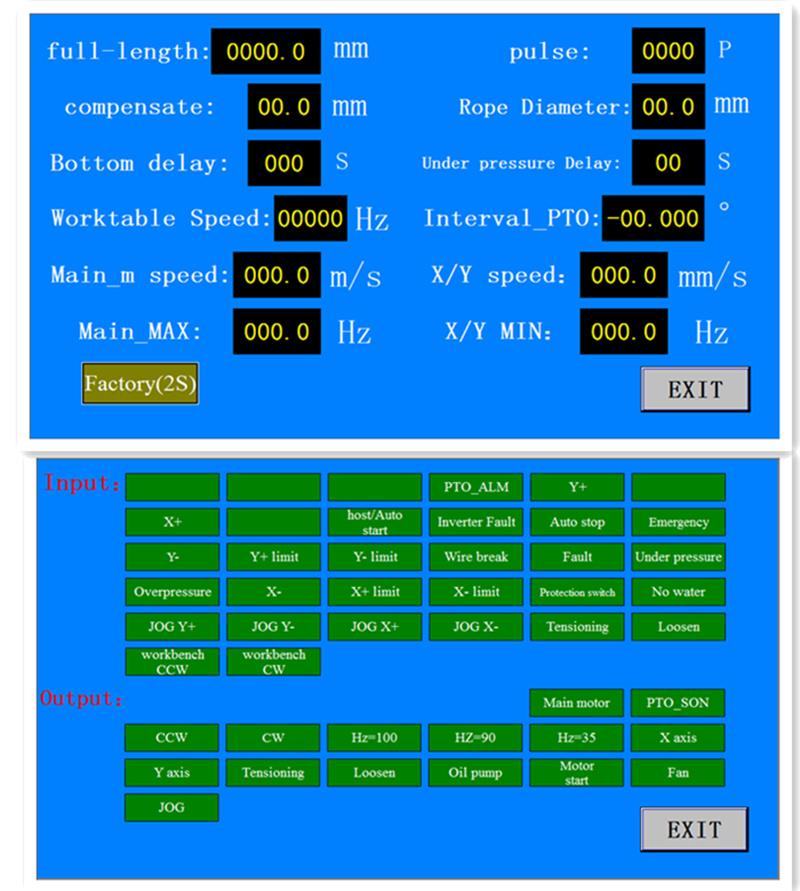

Electric Cabinet& Operation Panel Photos :













     Exhibition:

FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
