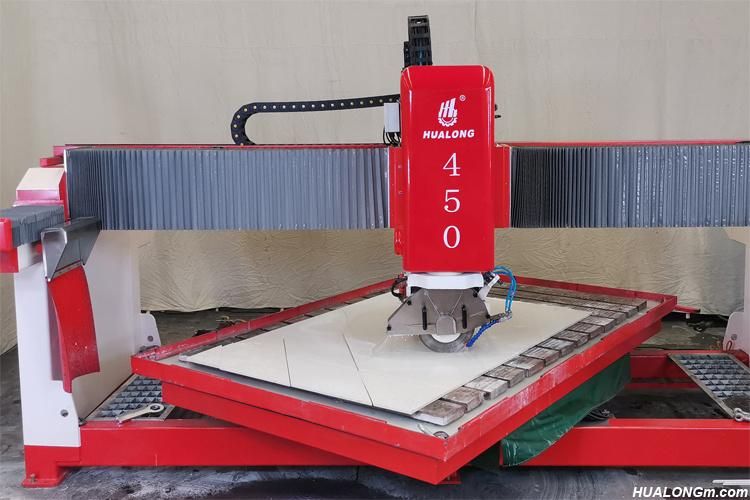

• Model NO.：HLSQ-450
• Usage：Ceramics, Granite, Marble
• Application：Art & Craft, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Color：Red and Ivory
• Guide Rail：Linear Guide
• Dimensions of Working Table：3300*2000
• Touch Screen：Siemens
• Gearing：Rack Gear
• Head Rotation：0,90,180,270 Degree
• Head Tilting：0,45 Degree
• Table Rotation：0-360 Degree
• Table Tilting：0-85 Degree
• Max. Cutting Thickness and Length：100mm,3300mm
• Transport Package：Polypropylene Plastics Packing
• Specification：5700(L)*3260(W)*2765(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month
• Package size per unit product：570.00cm * 326.00cm * 276.50cm
• Gross weight per unit product：5400.000kg

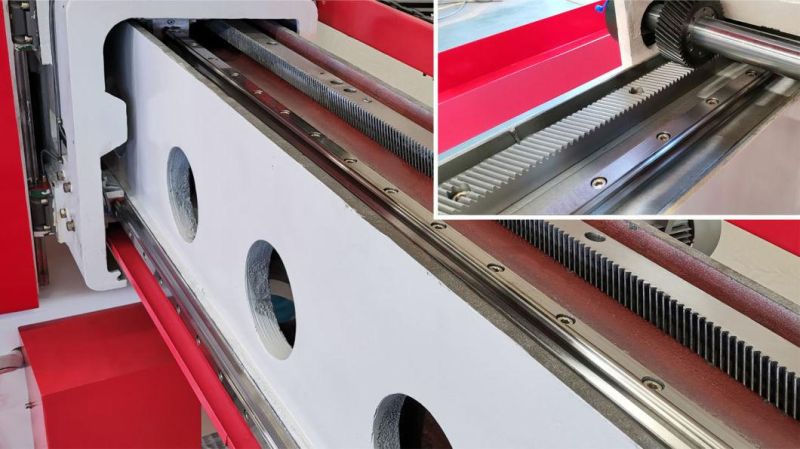

1, Machine is with Siemens PLC and touch screen, steady quality and easy to operate.2, Machine's linear guide used is Taiwan Hiwin linear guide which will make sure the cutting accuracy and keep machine's longer lifetime.

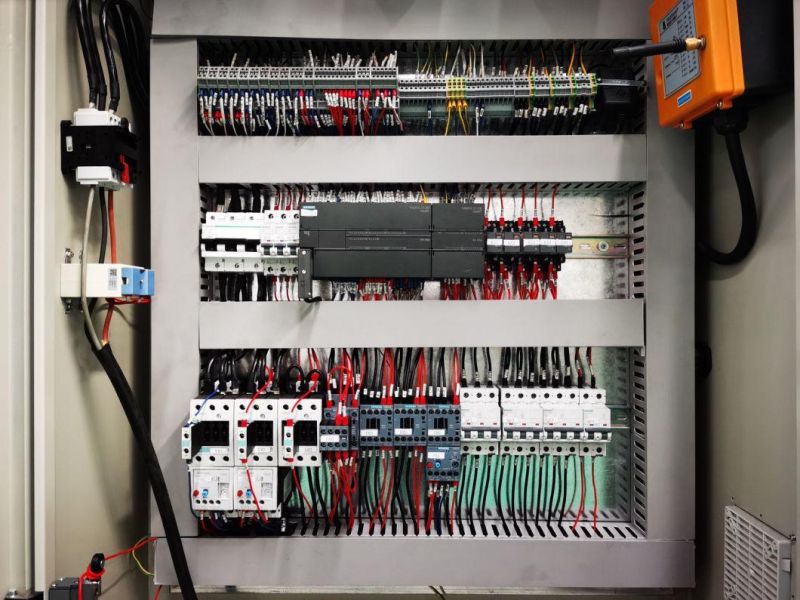

3, All main electrical parts used in electrical cabinet is Siemens and Schneider brand, which is in high quality and easy to source in overseas.



4, The machine is designed for one 20ft container's mostly assembled loading justly, easy for unloading and install.

Functions:

1. 0°/45° head tilting, 0°/90°/180°/270°/360° head rotation.

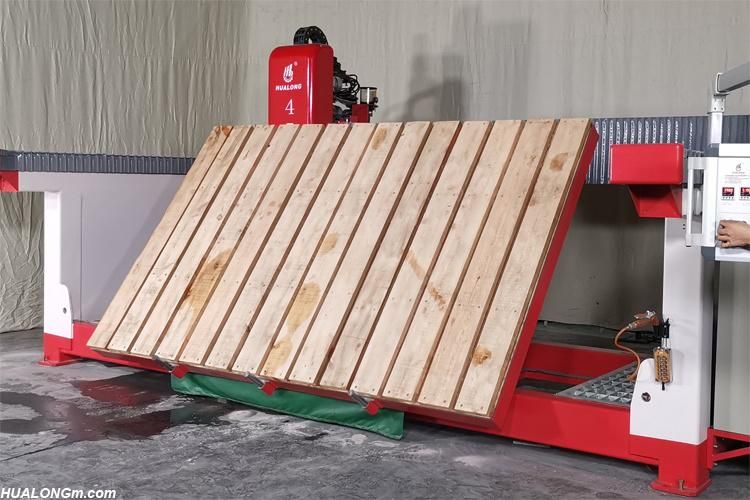

2. 0° to 85° table tilting, automatic  rotation at every degree and 0° to 360° table rotation and stop at any degree manually.

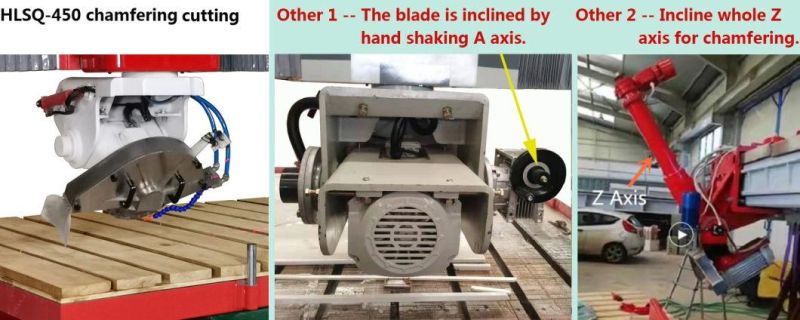

3. 0° - 90°- 180° - 270° full automatic positioning straight and chamfering cutting.

4. Encoders in X, Y, Z axis guarantee precise positioning.

5.  Monobloc structure bridge saw will be easy for installation and loaded inside 20 foot container as a whole.

6. Cross beam material is casting to assure that machine can be used for a long time.
