China Monoblock Bridge Stone Machinery Granite Marble Stone Tile Cutter Machine Slab Countertop Edge Chamfering Profiling Machine CE/ISO

Fujian Province Hualong Machinery Co., Ltd.
  • Warranty：1 Year
  • Type：Automatic Mono Bc

Base Info

  • Model NO.：HLSQ-650
  • Usage：Ceramics, Granite, Marble
  • Application：Art & Craft, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：Siemens PLC
  • Certification：ISO, CE
  • Color：Red and Ivory
  • Head Rotate 4 Positions：0,90,180,270degree
  • Head Tilting Position：45,90 Degree
  • Table Rotate：0-360 Degree
  • Table Tilt：0-85 Degree

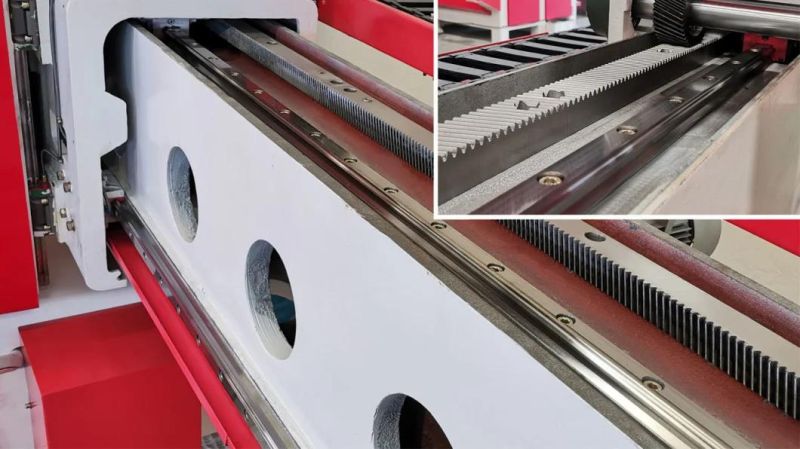

  • Guide Rail：Hiwin Linear Guide
  • Gearing：Rack Gear

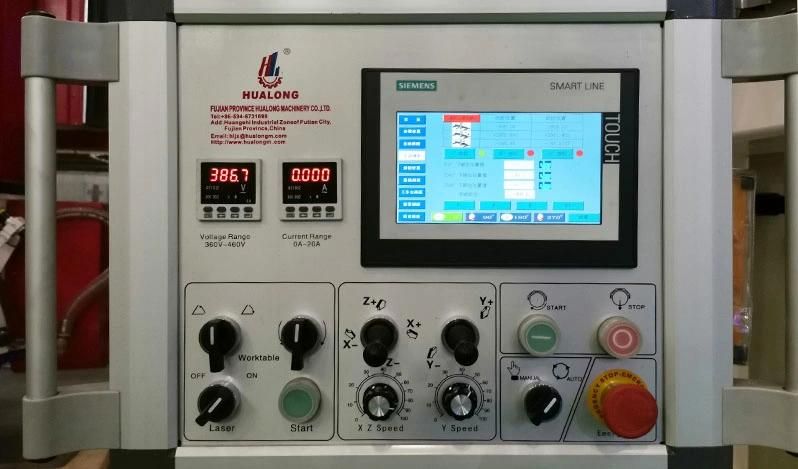

  • Touch Screen：Siemens
  • Maximum Cutting Depth：200mm
  • Main Elctric Components：Siemens Brand
  • PLC：Siemens
  • Structure：Intergrated Machine
  • Machine Type：Mono Bridge Saw
  • Cutting：Automatically
  • Remoter：with Remoter Control
  • Transport Package：Plastic Packing
  • Specification：Working Area: 3300*2000mm
  • Trademark：Hualong
  • Origin：Putian, Fujian, China
  • HS Code：84641010
  • Production Capacity：50 Pieces,Month

Description

China Monoblock Bridge Stone Machinery Granite Marble Stone Tile Cutter Machine Slab Countertop Edge Chamfering Profiling Machine CE/ISOChina Monoblock Bridge Stone Machinery Granite Marble Stone Tile Cutter Machine Slab Countertop Edge Chamfering Profiling Machine CE/ISOChina Monoblock Bridge Stone Machinery Granite Marble Stone Tile Cutter Machine Slab Countertop Edge Chamfering Profiling Machine CE/ISOLaser Reticule Apparatus
 Origin: China

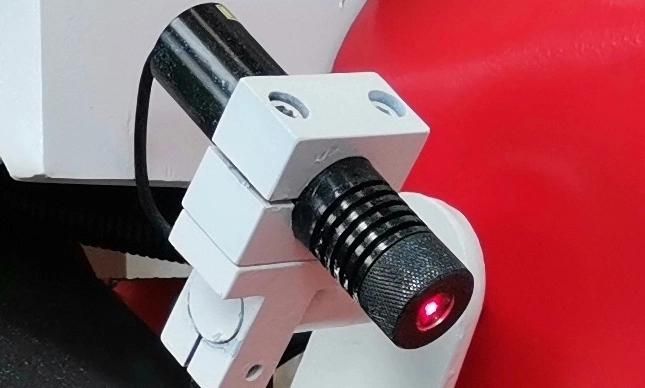

Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.






China Monoblock Bridge Stone Machinery Granite Marble Stone Tile Cutter Machine Slab Countertop Edge Chamfering Profiling Machine CE/ISO
Other Advantages

1) 25 years + experience professional on making stone machines.

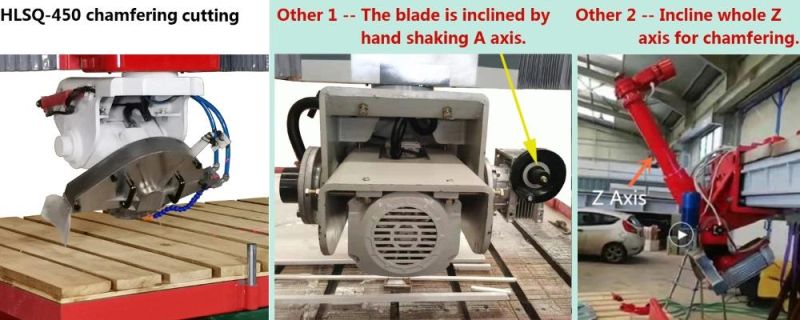

2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.4) For chamfering cutting, the blade tilt of HLSQ-650 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.

China Monoblock Bridge Stone Machinery Granite Marble Stone Tile Cutter Machine Slab Countertop Edge Chamfering Profiling Machine CE/ISO
Application

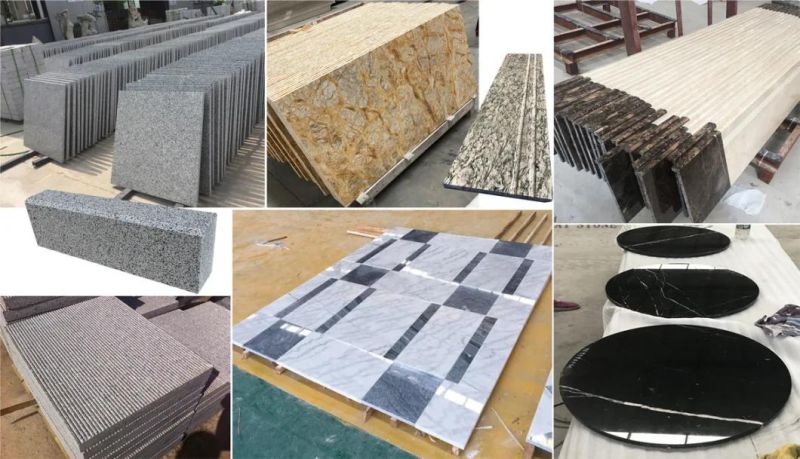

* Slab cutted to square size or other polygonal
* Round desktop processing
China Monoblock Bridge Stone Machinery Granite Marble Stone Tile Cutter Machine Slab Countertop Edge Chamfering Profiling Machine CE/ISO
* Profiling Cutting (optional)

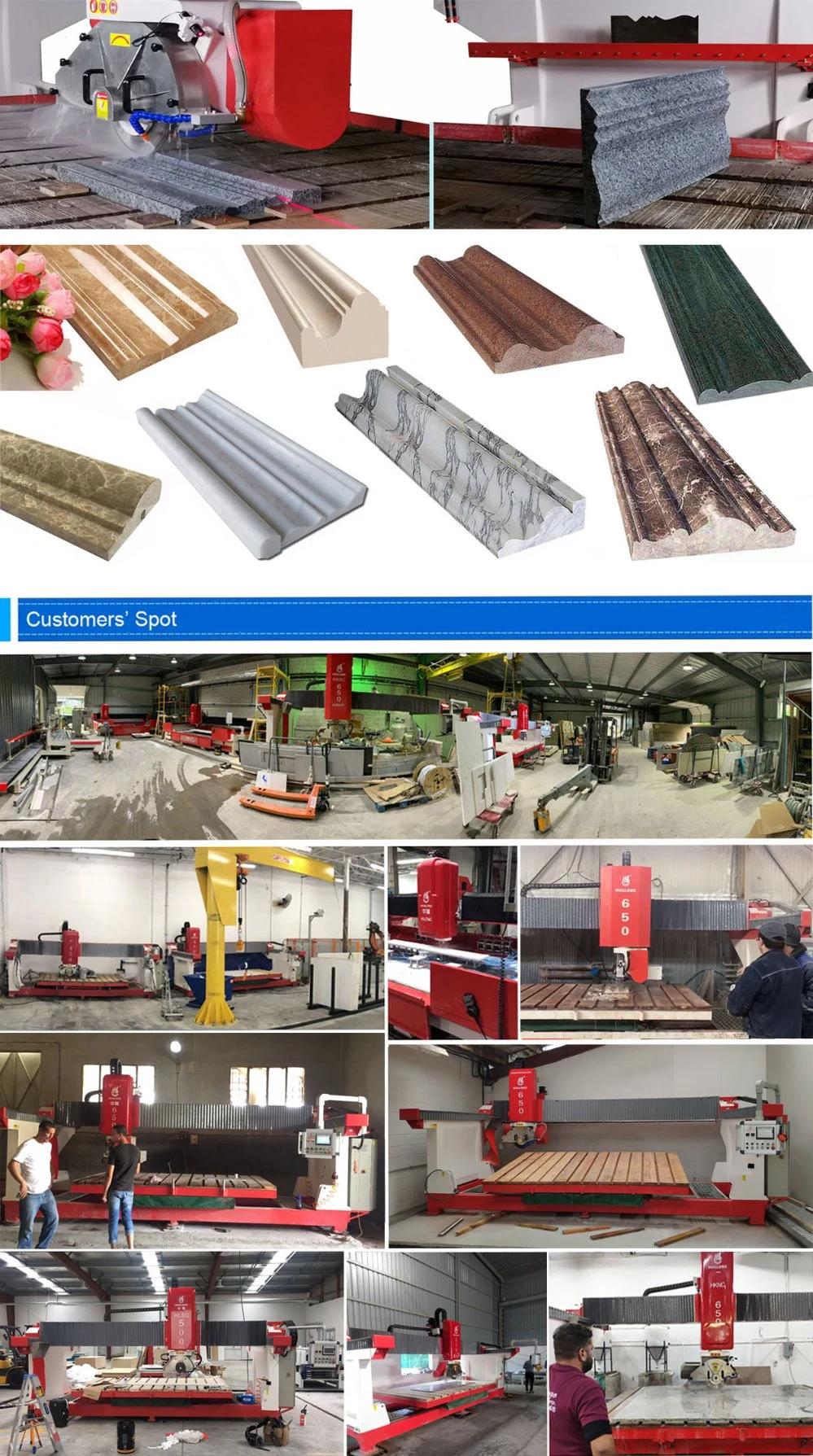

According to customer requirements, this machine can be equipped with profiling module to achieve profiling cutting function, used for processing special-shaped stone lines, decorating door frames, windows, columns and walls, etc.
