• Model NO.：1325
• Certification：CE, ISO, API
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Service：Offering Oversea Service
• Voltage：220,380V
• Table：T-Slot Aluminum +PVC or Vacuum
• Spindle Power：3kw(Without Spindle)
• Driver：Leadshine M860
• Motor：Stepper Motor 450b
• X,Y,Z Traveling：X, Y, Z Traveling
• Inverter：Fuling or Delta
• X,Y Structure：Rack Gear
• Z Structure：Tbi Ball Screw
• Transport Package：Woodencase
• Specification：1300x2500x300
• Trademark：ALLWIN
• Origin：Jinan, Shandong
• HS Code：8465990000
• Production Capacity：500,Month

Model

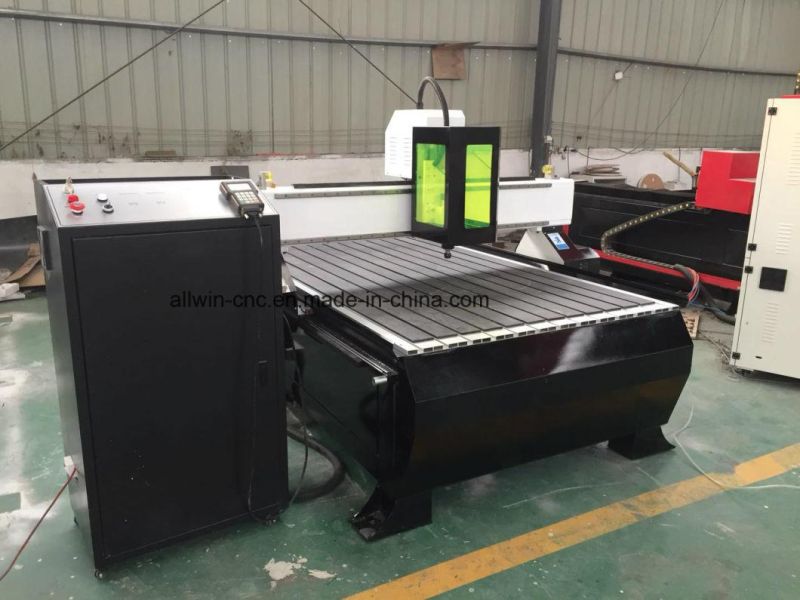

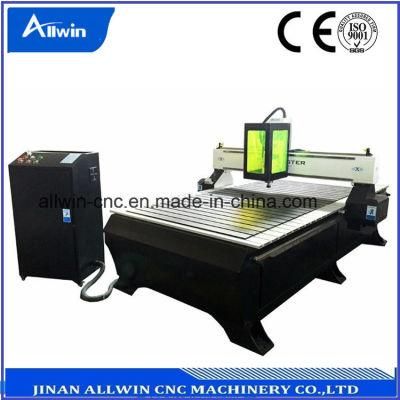

ALLWIN-1325 CNC Router

  ER Clamp Holder

ER 25

  Frame

5mm steel pipe welding

X,Y,Z Working Area

1300*2500*200mm

Table Surface

T-slot Aluminum +PVC or Vaccum absorption table

X, Y Structure

Oblique rack gear transmission

Z Structure

HIWIN Rail Linear Guide and TBI Ball Screw

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Max. Power Consumption(Without Spindle)

2.5kw-3kw

Max. Rapid Travel Rate

25000mm/min

Max. Working Speed

18000mm/min

Spindle Power

3kw water cooling spindle

Spindle Speed

0-24000 RPM

Drive Motors

Stepper Motor

Working Voltage r

AC 220V/380V, 50/60 Hz

Operating System

Ncstudio or Mach3 PC Software

Computer Interface

USB

Flash Memory

128M(U Disk)

Software Compatibility

Type 3/Artcam/Ucancame V9 for option

Command Language

G code

Running Environment  Temperature

0-45°C

Relative Humidity

30%-75%

X,Y Resolution

<0.01

Inverter

Fuling or Delta

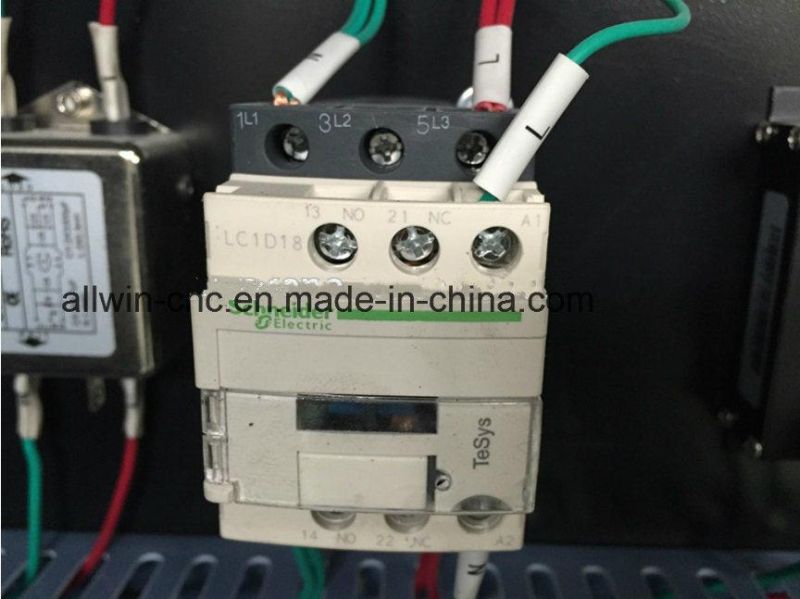

Electrical components

Schneider

Limit switch

Omron

Driver

Leadshine or Yako

.

Sample:

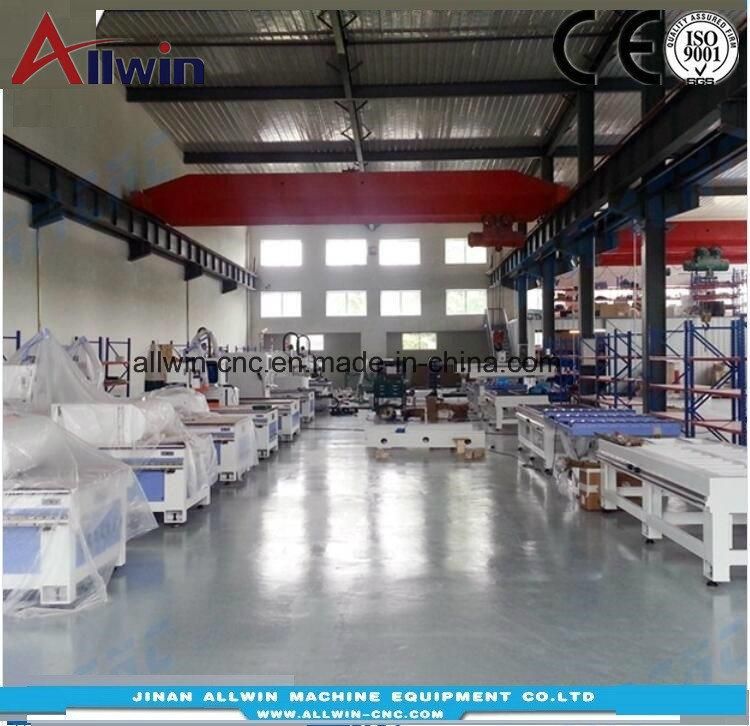

Factory:

Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube


FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
