• Model NO.：HW-580
• Grinding Machine Type：Vibration Polishing Machine
• Certification：CE
• Condition：New
• Voltage& Frequency：380V-50Hz
• Power：2.5HP
• Motor Revolution：150 R,Min
• Net Weight：5kg
• Base Plate Diameter：18
• Keywords：Epoxy Floor Surface Grinding Machine
• Transport Package：Wooden Package
• Specification：CE
• Trademark：Hwawin
• Origin：China
• HS Code：87059090
• Production Capacity：1000 Units Per Month

Basic Info.

Model NO. HW-580 Grinding Machine Type Vibration Polishing Machine Certification CE Condition New Voltage& Frequency 380V-50Hz Power 2.5HP Motor Revolution 150 R/Min Net Weight 5kg Base Plate Diameter 18 Keywords Epoxy Floor Surface Grinding Machine Transport Package Wooden Package Specification CE Trademark Hwawin Origin China HS Code 87059090 Production Capacity 1000 Units Per Month

Product Description

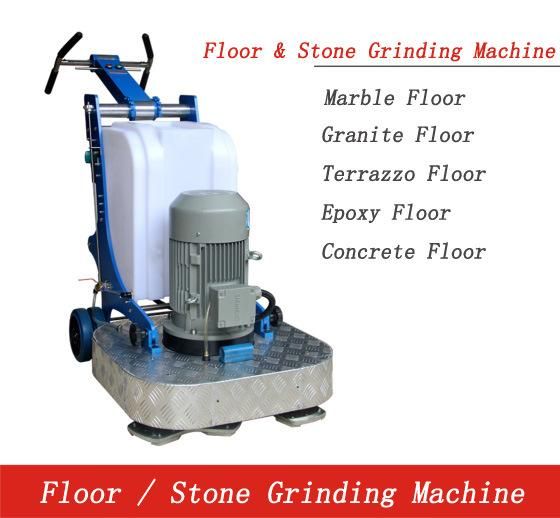

Epoxy Floor Surface Grinding Machine

HW-580 large floor grinding machine is suitable for concrete floor, carborundum floor, cement floor, terrazzo floors, marble, granite and other large ground leveling, grinding, grinding, renovation and polishing.

Machine features of Epoxy Floor Surface Grinding Machine

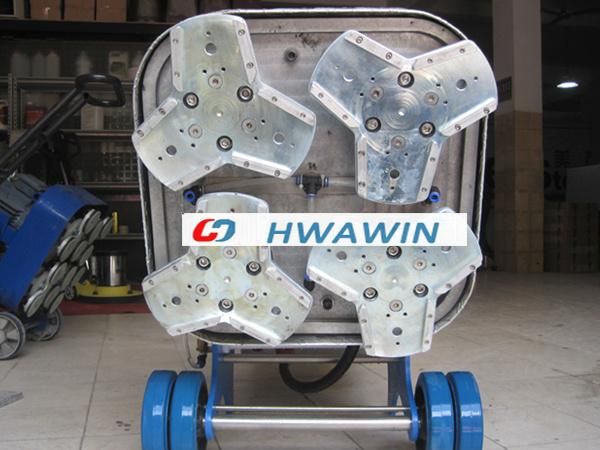

1, four disc (a total of 12 head design and configuration of large power motor. The horsepower is strong: before and after the two grinding discs can be opposite or the opposite rotation. Can be offset by the disc rotates the unidirectional torque, so that the operation of the machine is particularly easy.
2, the disc working area wide, high efficiency grinding grinding: four grinding work area width is 580mm*580mm.

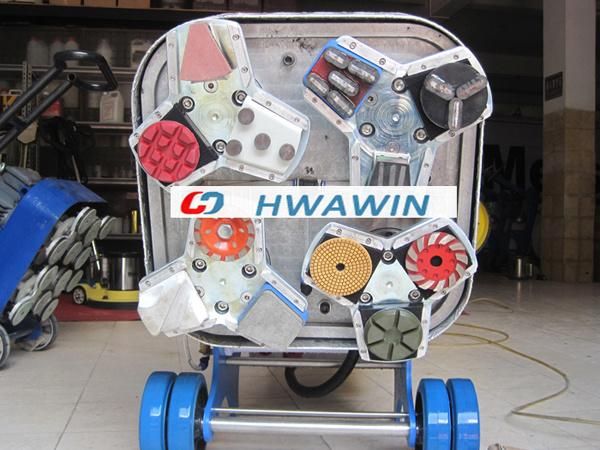

3, disc grinding the use of abrasive types of Trinidad and Tobago: post, cocker spaniels, screw fastening various abrasive, grinding head, grinding wheel, grinding, renovation, tablets and other 10 kinds of abrasives can meet different floor, floor grinding, grinding, renovation, polishing needs.
4. The appearance of special design novel, beautiful, generous: machine implementation support with steel laser cutting forming and light aluminum alloy sleeve, 304 stainless steel rod gong wire fastening. Without any welding mouth position.
5, the noise of the machine is low, durable: machine gear box by special aluminum alloy box computer gongs engraving production, consistent data accurate. High frequency heat treatment gear agreement, each gear has strong, professional fixed way. There is no grinding (abrasive resistance increase (increased torque), the gear to produce bias phenomenon.
6, the weight of the foot, disc under pressure: body net weigh 286kg, motor power, high work efficiency, very suitable for large area renovation grinding and polishing.
7, large tank capacity: water tank capacity of 70 liters, can avoid the trouble of frequent water, while increasing the weight of the machine and grinding pressure.

Main Parameter of Epoxy Floor Surface Grinding Machine

Model	HW-580
Voltage	380v
Motor	5.5kw
Disc Rotation Speed	460r/min
Net Weight	460r/min
Working Width	580*580mm
Water Tank	70L
Millstone	4 pcs (12 grinding head)
