1625 2 Heads 2 Spindles Heavy Duty Stone CNC Router

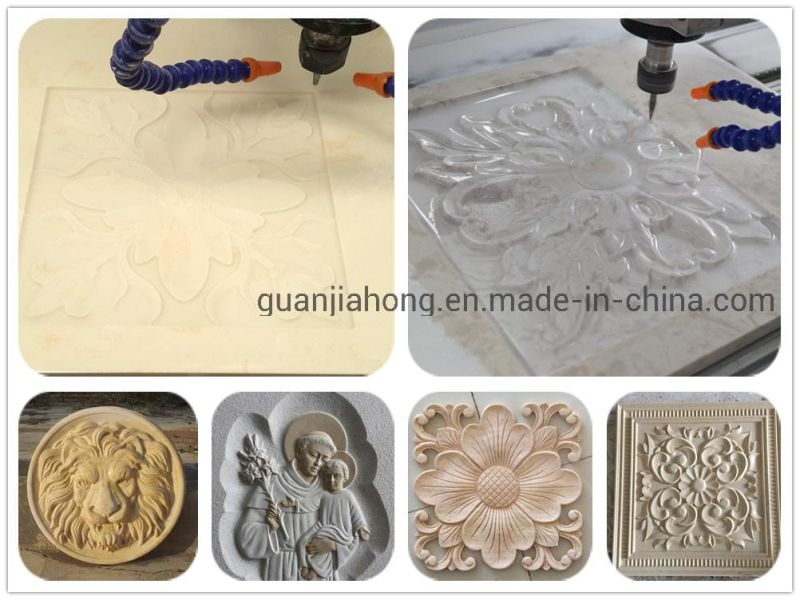

Jinan Guanjiahong CNC Machinery Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Granite
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Certification：CE, SGS
Base Info
- Model NO.：GJH 1625-2
- Current：AC
- Application：Stone Industry, Marble & Granite
- Customized：Customized
- Control System：Nc Studio, Shanghai
- Guild Rail：PMI , Hiwin Square Rail
- Ball Screw：PMI, Taiwan
- Derive Motor：Yaskawa Servo

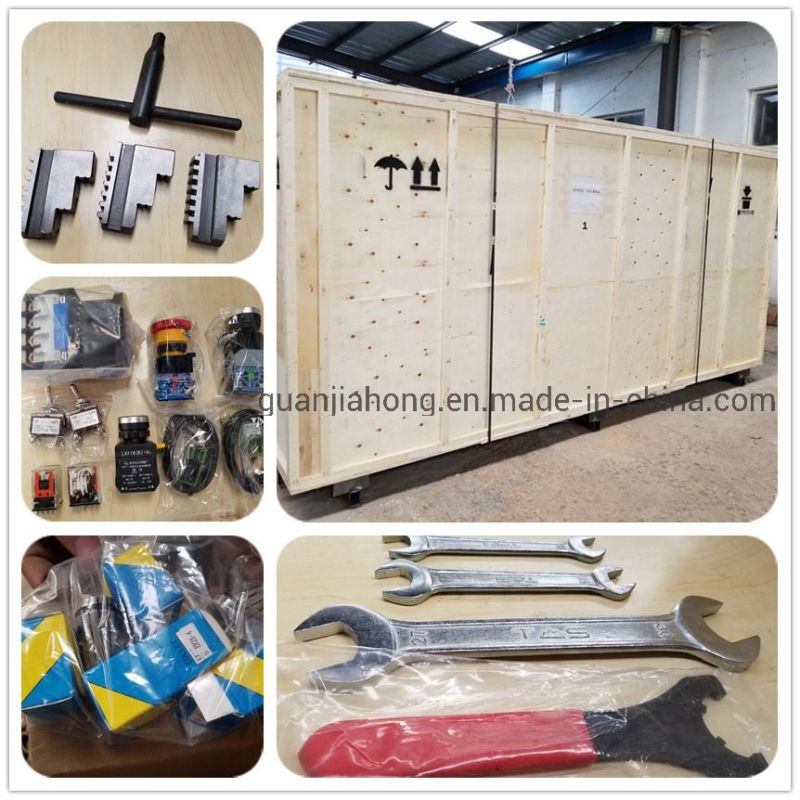

- Transport Package：Plywood Case
- Specification：GJH 1625-2
- Trademark：GJH
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. GJH 1625-2 Current AC Application Stone Industry, Marble & Granite Customized Customized Control System Nc Studio, Shanghai Guild Rail PMI / Hiwin Square Rail Ball Screw PMI, Taiwan Derive Motor Yaskawa Servo Transport Package Plywood Case Specification GJH 1625-2 Trademark GJH Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description

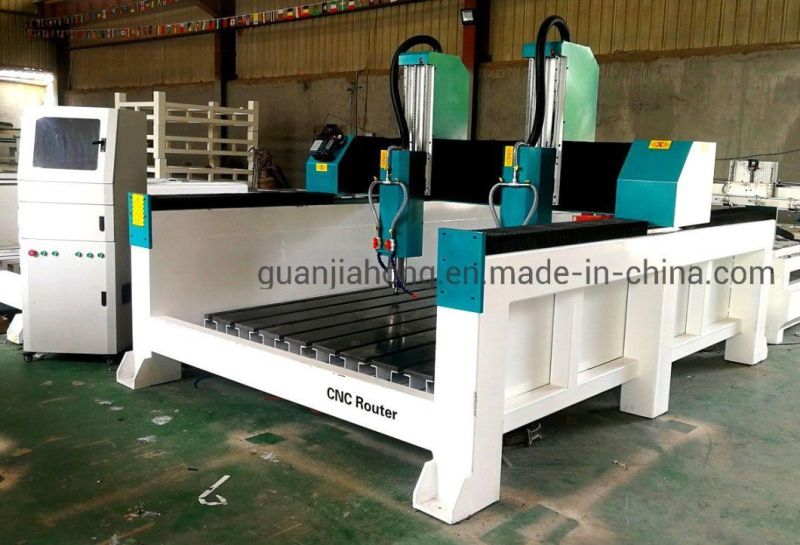

GJH-1625-2 Heavy duty stone / marble Cnc Router machine from professional cnc router machine manufacturer.
1. Model: GJH-1625-2
2. Internationally advanced NC studio system which have memory of breakpoint can guarantee
resumpti on of processing in case of incident (breaking) or of work of the previous day.

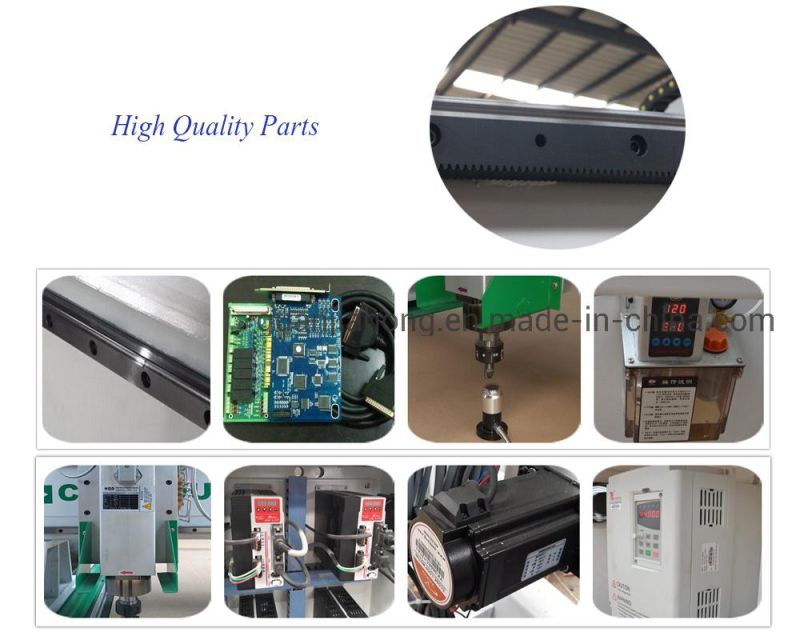

3. Imported linear square rails, double big slider, loading capacity, smooth operation, high precision,
long life, accurate operation.
4. Constant power spindle motor, strong and accurate cutting, high efficiency.
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X area | 1600mm |
| Y area | 2500mm | ||
| Z area | 400mm | ||
| 2 | Table size | 1600mm*2500mm | |
| 3 | Accuracy | Working precision | 0.05mm |
| Repositioning precision | 0.05mm | ||
| 4 | Drive mode | X axis | Helical rack and pinion gear |
| Y axis | Helical rack and pinion gear | ||
| Z axis | Ball screw | ||
| 5 | Speed | Max traverse speed | 30000mm/min |
| Max engraving speed | 8000mm/min | ||
| 6 | Spindle (water-cooling) | Spindle power | 5.5KW |
| Spindle speed | 0_24000r/min | ||
| 7 | Working mode | Hybrid Servo | |
| 8 | Operating voltage | AC220V/50HZ | |
| 9 | Command code | G code | |
| 10 | Operating system | NC Studio | |
| 11 | Net weight | 2520KG |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in ourfactory.
4. Free suggestion and consulting, technical support and service by email/fax/tel and
tel and lifetime technical support.
If you have specific requirement for heavy duty stone cnc router, customization is available.
