• Model NO.：HKNC-650X
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Head Rotation：0-360°
• Guide Rail：Hiwin Linear Guide
• Lubrication：Automatic
• Worktable Tilting Degree：85°
• Transport Package：with Steel Ropes to Fix in Container
• Trademark：Hualong
• Origin：Fujian, China
• HS Code：8464101000
• Production Capacity：50 Sets,Month
• Package size per unit product：630.00cm * 360.00cm * 310.00cm
• Gross weight per unit product：5800.000kg

Basic Info.

Model NO. HKNC-650X Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Head Rotation 0-360° Guide Rail Hiwin Linear Guide Lubrication Automatic Worktable Tilting Degree 85° Transport Package with Steel Ropes to Fix in Container Trademark Hualong Origin Fujian, China HS Code 8464101000 Production Capacity 50 Sets/Month

Packaging & Delivery

Package size per unit product 630.00cm * 360.00cm * 310.00cm Gross weight per unit product 5800.000kg

Product Description

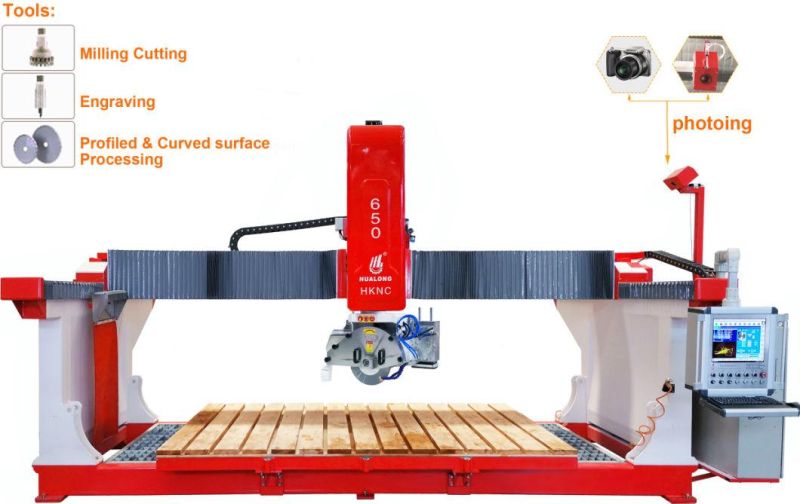

HUALONG HKNC-650X is a 5 axis CNC stone cutting & milling machine with photo slab and built-in vacuum lifting, which combining simplicity with maximum versatility. It's ideal for the production of different types of products such as kitchen countertops, vanity tops, shower trays, bas-reliefs, funerary arts and cladding for the building industry in marble, granite and artificial stone.

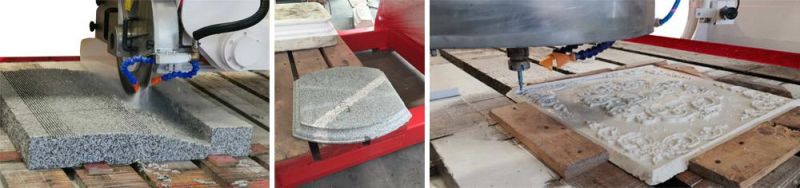

It allows a wide range of processing such as slab cutting (straight, oblique,arcs, squares, ellipse, circle, chamfer), block profiling, recess machining, engraving, drilling, etc., using a diamond disc or milling tools.
Thanks to the top of the line CNC system ESA from Italy and skillful production with 30+ years experience of our's, it can make a complicated machining job easy, perfect adn high efficient.


 Features:
1) Full 5 axis interpolation

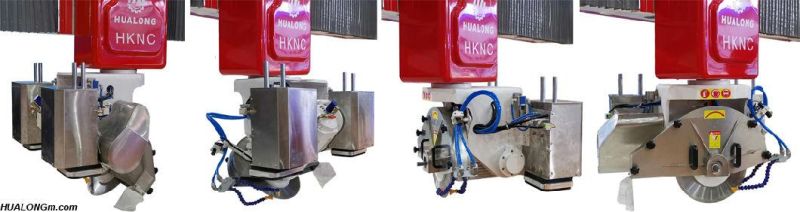

2) Automatic rotationg head from 0°-360° possible for any angel's cutting.
3) Automatic blade tilting from 0°-90°; for the 0° inclination, additional drills/tools available for core holes and cut-outs

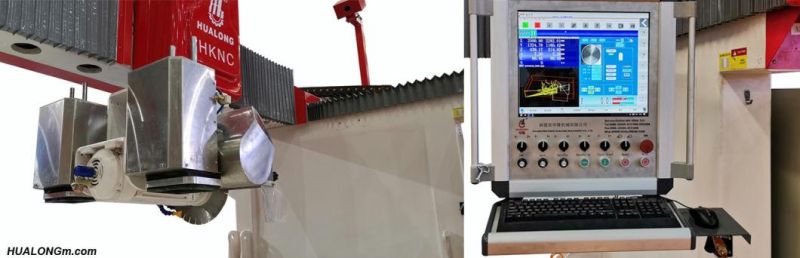

4) Easy to use interface with 19" colour touch screen
5) Hydraulic 85° tilting table
6) Fast and precise movements on X, Y, Z axises due to digital brushless motors, precision gearboxes and linear guides with recirculating ball bearing
7) Automatic grease-lubrication of sliding guides and oil bath on X, Y axises
8) RTCP tool point tracking function ensure high precision machining easy
9) Manual cuts available for simple machining
10) Vacuum manipulator for workpiece handling
11) Photo slab for nesting and avoiding defects
12) Nesting manual / automatic to optimize slab surface usage
13) USB port / EtherCAT port / CANopen connection for easy loading of programs
14) Possilbe developments for printer machine etc.
Optional functions:
* Vein match for easily matching up perfectly each vein, color at the seam of your project
* Automatic tool length detect
* Handwheel for closing the workpieces and handling the action of X, Y, Z axises
* Scan machine support

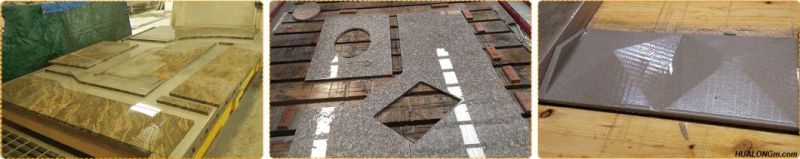

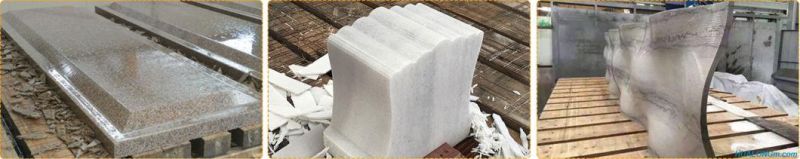

Appliction Fields:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades



Technical Data

Item	Unit	Data
Diameter of saw blade	mm	Φ350 -  Φ625
Max. length of horizontal cutting	mm	3500
Max. cutting thickness	mm	190
Dimension of working platform	mm	3500 x 2100
Max. lifting stroke	mm	500
Power of main motor	kw	15
Power of cutter frame reciprocating motor	kw	1.15
Power of crossbeam shifting motor	kw	1.15
Power of hydraulic station motor	kw	2.2
Power of lifting motor	kw	0.85
Gross Power	kw	20.35
Max. liftable weight by vacuum cups	kg	200
Water consumption	m3/h	2

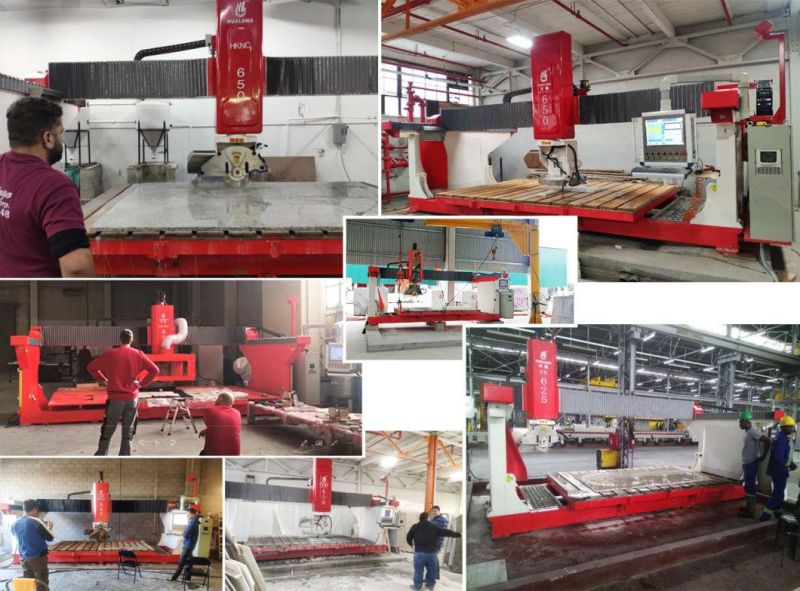

Customers' Spot

Pre-sale Service:
* Inquiry and consulting support
* Configure best machine line according to customer's condition
* Technical cooperation
* Tailor made
* View our factory
After-sale Service:
* Training how to instal and how to use the machine
* Engineers available to serve overseas
* Lifetime technology maintenance in free and spare parts supply

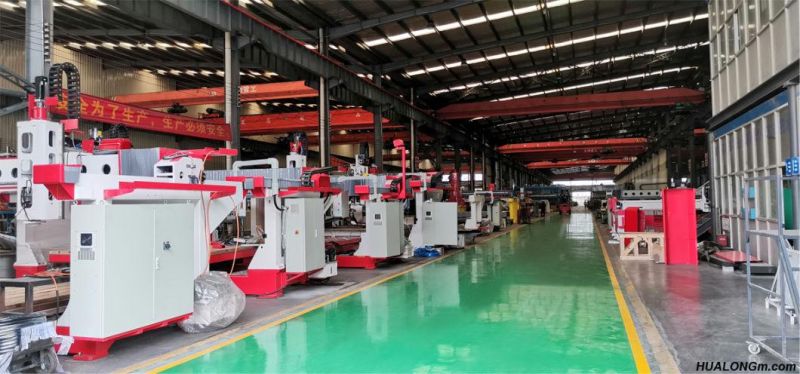

Factory Workshop

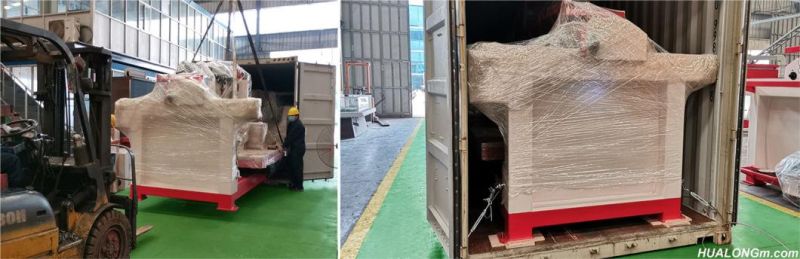

Packaging & Shipment:
1) All parts wrapped by waterproof PE film and/or air bubbles.
2) Spare and accessary parts of small size packed in plywood cartons.
3) With steel ropes to fix in container, anti-skid suitable for long distance shipment.

FAQ
Q: Are you a manufacturer or a trading company?
A: We are manufacturer, one of the leading stone machinery manufacturer in China. And we provide one-stop shopping service.
Q: How about customization?
A: ODM/ OEM business partner will be welcome.
Q: What about the leading time?
A: In general, the leading time is about 20-35 days. But please confirm the exact delivery time with us as different products and different quantity will have differerent leading time.
Q: What's the warranty time?
A: one year.
Q: How to get the most suitable model with competitive prices?
A: Please let me know: 1) what material you want to process? what's the max size?
                                      2) the mainly functions or processed effect you need?
                                      3) If possible, show us your sample picture for reference.
     With your idea, we will recommend you the proper model with right functions and capability.
