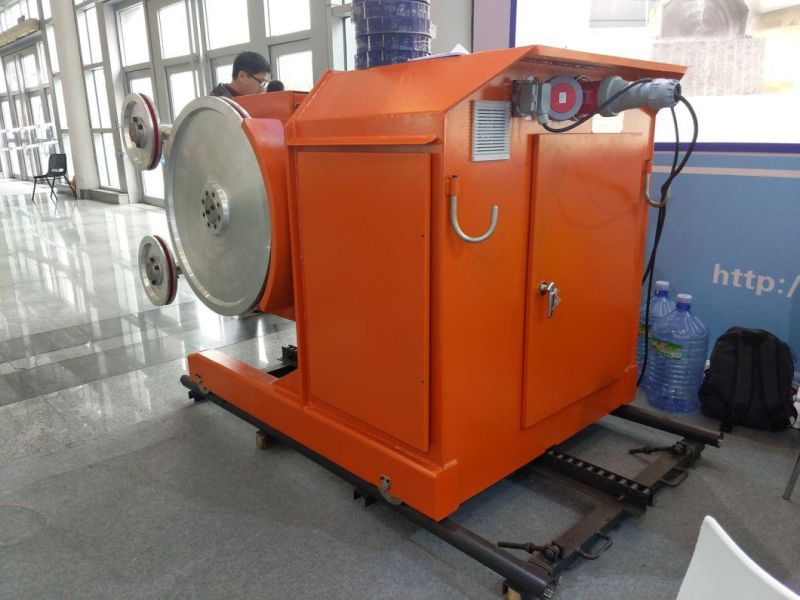

• Model NO.：XGM-001
• Trademark：Singoon
• Origin：China
• HS Code：8464102000
• Production Capacity：10-50 Square Meters Per Meter

Mode

XG-37/45

XG-55

XG-75

Main motor(kW)

37/45kW

55kW

75kW

Flywheel's diameter(mm)

MarbleΦ800mm, GraniteΦ800mm

Guide pulley's diameter(mm)

2×Φ380mm

Wire speed(m/s)

0-40 m/s

Walking motor(kW)

1.5kW

Walking speed(m/h)

0-30 m/h

Adjustment distance(mm)

450mm

Rotation angle

360°Electric

Max length of wire saw(m)

50m

60m

80m

Net weight(t)

~2300 kg

~2500 kg

~3400 kg

The operator station adopts the centralized control of Delta PLC, which realizes the four-line control from the operating table to the rope saw machine, the structure is simple, the function is powerful, the failure rate is few, all cutting parameters are clear at a glance, and it has the function of automatically identifying the use of electrical parts.

     Introduction to the function of control system

1. The working state is displayed in real time and accurately. The main motor given current, actual current, bead rope speed and other parameters at a glance.

2.  Can choose different given current operation program according to different stone, in order to ensure the best cutting effect.

3. Accurate PID control + frequency conversion vector control to ensure the smooth and efficient operation of the equipment.

4. It has the function of acoustic and light alarm, which improves the equipment and personal safety.

5. Fault self-diagnosis function, even if the failure, can be quickly eliminated, immediately return to normal operation.

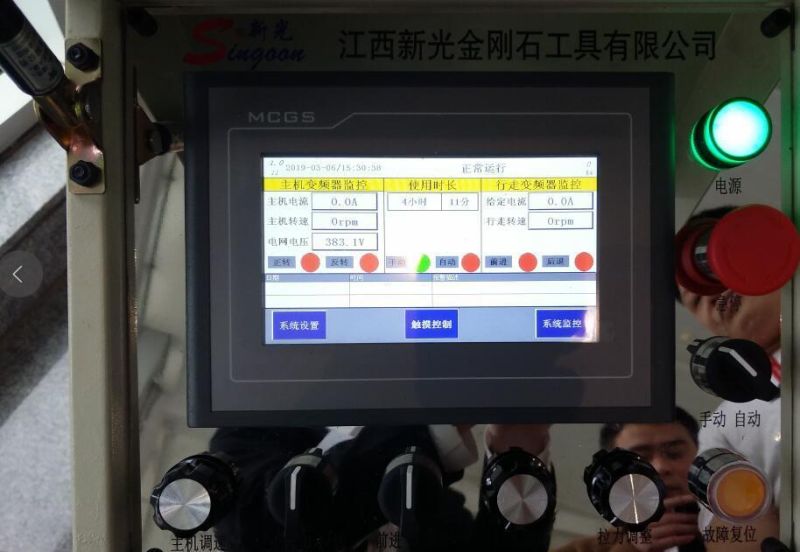

Introduction to the Operation interface

1. The arrangement of the buttons on the operator panel is shown in the following figure:

     Parameter setting and adjustment

1.When working properly after booting, the display meter will display: the main motor given current, actual current, cutting speed, walking speed

2. When cutting different materials or different sections of stone, according to the actual situation, adjust the "current given" knob, in order to achieve the best cutting effect.

The method of setting the tension: in the normal cutting, press the "F" key to enter the set current interface, output the number of electricity values, and then press "ENTER" to confirm.
