• Source Voltage：220V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：Siemens PLC
• Certification：ISO, CE
• Color：Red and Ivory
• Guide Rail：Linear Guide
• Dimensions of Working Table：3300*2000
• Touch Screen：Siemens
• Gearing：Rack Gear
• Head Rotation：0,90,180,270 Degree
• Head Tilting：0,45 Degree
• Table Rotation：0-360 Degree
• Table Tilting：0-85 Degree
• Max. Cutting Thickness and Length：100mm,3300mm
• PLC：Siemens
• Crossbeam：Cast Iron
• Linear Guide：Hiwin
• Main Electrical Parts：Siemens and Schneider
• Structure：Mono Bridge Type
• Transport Package：Polypropylene Plastics Packing
• Specification：5700(L)*3260(W)*2765(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month

Basic Info.

Source Voltage 220V Automation Automatic Cutting Ability High Speed Control Siemens PLC Certification ISO, CE Color Red and Ivory Guide Rail Linear Guide Dimensions of Working Table 3300*2000 Touch Screen Siemens Gearing Rack Gear Head Rotation 0/90/180/270 Degree Head Tilting 0/45 Degree Table Rotation 0-360 Degree Table Tilting 0-85 Degree Max. Cutting Thickness and Length 100mm/3300mm PLC Siemens Crossbeam Cast Iron Linear Guide Hiwin Main Electrical Parts Siemens and Schneider Structure Mono Bridge Type Transport Package Polypropylene Plastics Packing Specification 5700(L)*3260(W)*2765(H) Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/Month

Product Description

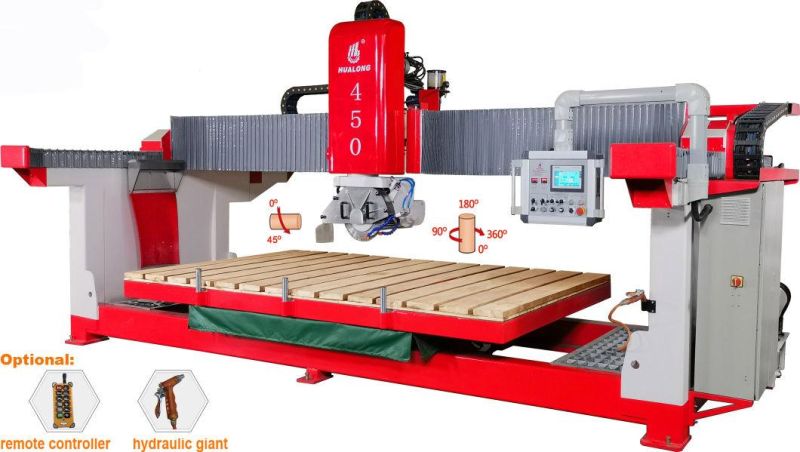

Full Automatic Bridge Stone Cutting Machine HLSQ-450 with function of 0°-90°-180°-270° full automatic positioning, chamfering and cutting,  is suitable for  processing stone slab cut to size, tombstone, skirtboard etc.

* Wireless remote control for convinient operation
* Hydraulic giant for cleaning




Main Features

1.  SIEMENS PLC control system in 4 Languages for automatic cutting and easy operation.

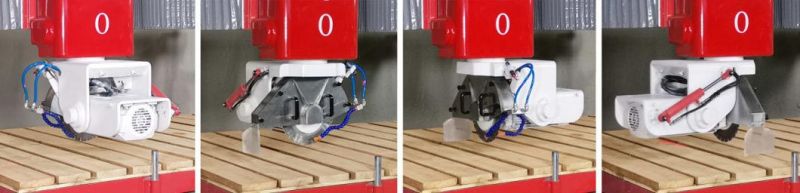

2.  0°, 90°, 180° and 270° head rotatation. Full automatic positioning and 45° chamfering cutting.

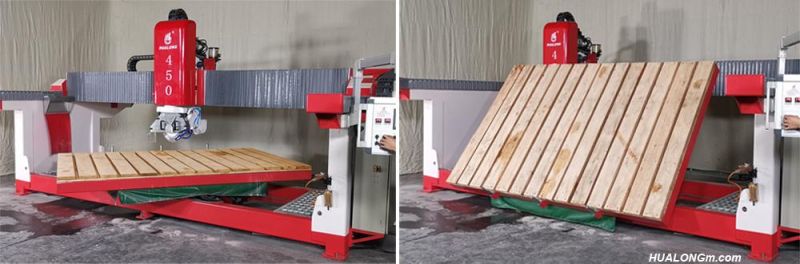

3.  Table available 360° rotating, and 0-85° tilting for easy slab loading.
4.  Laser alignment system for positionning.

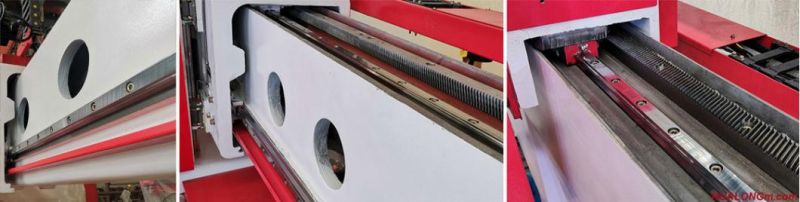

5.  Linear guideway in  "X, Y, Z" axis to guarantee accuracy and speed


6. Electric components in international standards, such as of Siemens, Schneider and Sanch,  to be easily sourced.
7. Full machine can be loaded in 20 GP container. Easy to load, transport and install due to its monobloc structural frame.
8. Spindle motor variable speed by means of inverter (Optional).

Head 45 degree tilting cut.

Technical Data

Item	Unit	Data
Diameter of saw blade	mm	Ø400-Ø450
Dimension of working table	mm	3300x2000
Max. Length of horidontal cutting	mm	3300
Max. Cutting thickness	mm	100
Max. Lifting stroke	mm	300
Power of main motor	kw	15
Power of cutter frame reciprocationg motor	kw	1.1
Power of crossbeam shifting motor	kw	1.5
Power of hydraulic station motor	kw	2.2
Power of lifting motor	kw	1.5
Gross power	kw	21.3
Water consumption	M3/h	2
Dimensions (L x W x H)	cm	575x326x276
Gross Weight	kg	5400

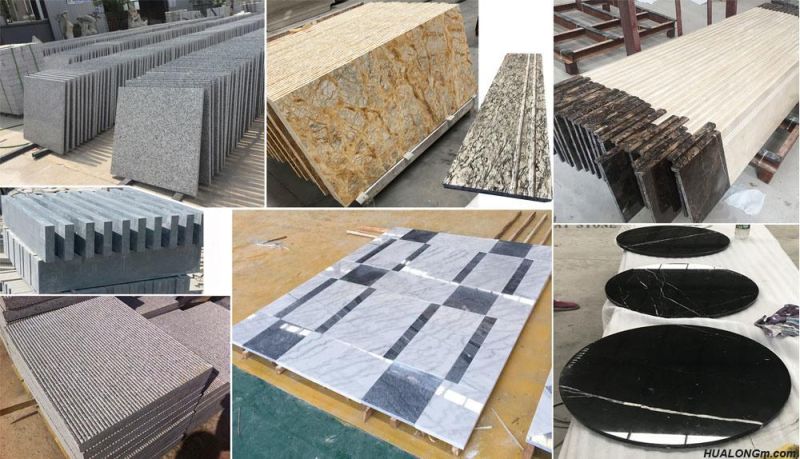

 Processed Products

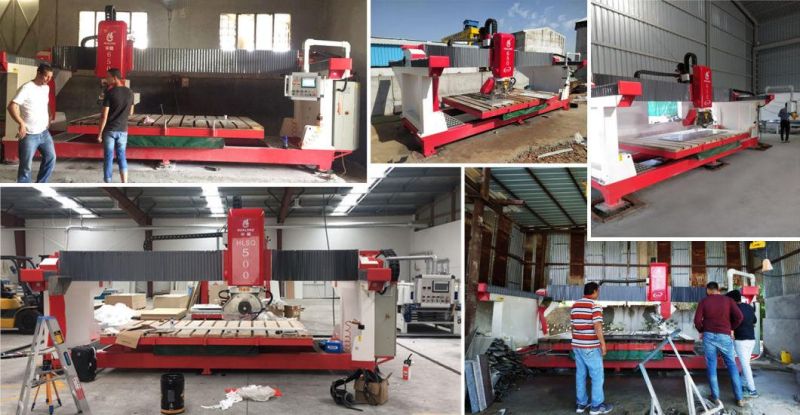

Customers' Spot


Pre-sale Service:
* Inquiry and consulting support
* Configure best machine line according to customer's condition
* Technical cooperation
* Tailor made
* View our factory
After-sale Service:
* Training how to instal and how to use the machine
* Engineers available to serve overseas
* Lifetime technology maintenance in free and spare parts supply

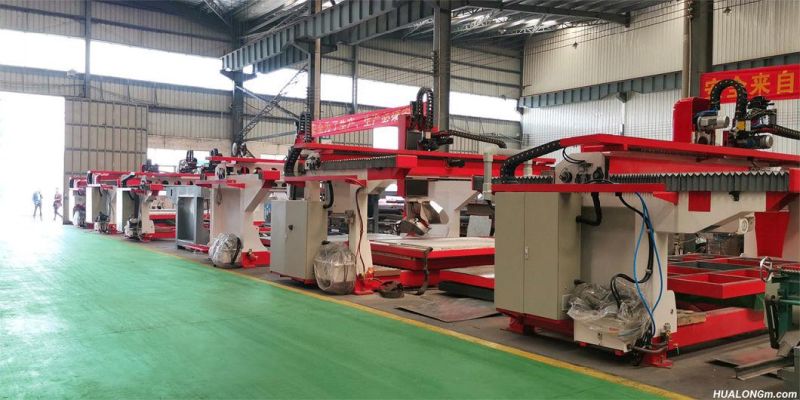

Factory Workshop



FAQ
Q: Are you a manufacturer or trading company?
A: We are manufacturer, one of the leading stone machinery manufacturer in China. And we can provide one-stop shopping service.
Q: What about the leading time?
A: In general, the leading time is about 25 to 35 days. But please confirm the exact delivery time
with us as different products and different quantity will have different leading time.
Q: What's the warranty time?
A: one year.
Q: How about customization?
A: ODM/OEM business partner will be warmly welcome.
Q: If we need technical support, can you offer us?
A: Yes, we have an experienced team to offer technical support. Well-trained salespersons and engineers are always ready to respond to your techincal doubts.
