• Model NO.：GTG280
• Type for Grinding Machine：Disc Grinding Machine
• Grinding Method：Dry and Wet Grind
• Certification：ISO, CE
• Condition：New
• Rated Voltage：220V
• Power：2.2kw,3HP
• Speed：1410rpm
• Weight：70kg
• Transport Package：Wooden Case, Pallet
• Specification：500x410x410mm
• Trademark：Corediam
• Origin：China
• HS Code：8479109000
• Production Capacity：5000 Pieces,Year

Basic Info.

Model NO. GTG280 Type for Grinding Machine Disc Grinding Machine Grinding Method Dry and Wet Grind Certification ISO, CE Condition New Rated Voltage 220V Power 2.2kw/3HP Speed 1410rpm Weight 70kg Transport Package Wooden Case, Pallet Specification 500x410x410mm Trademark Corediam Origin China HS Code 8479109000 Production Capacity 5000 Pieces/Year

Product Description

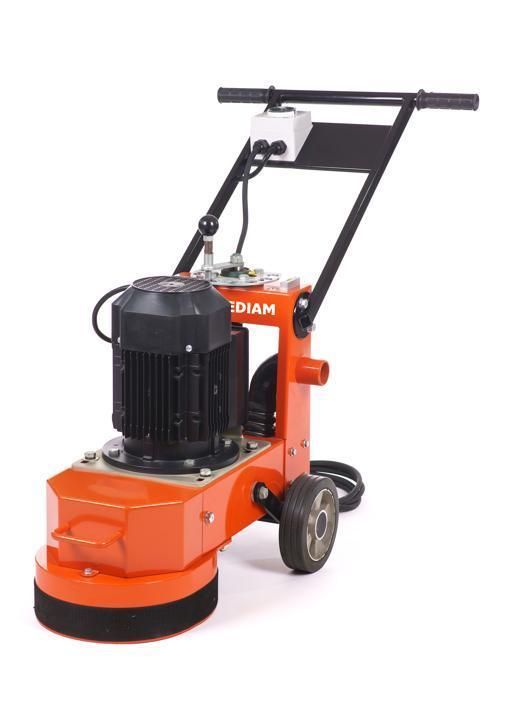

1. GTG280 Floor Grinder introduction

The Floor Grinder is a sturdy, reliable, and easy to use the machine.
The Floor Grinder is fitted 2.2kw single phase motor. This motor offers a direct drive to the grinding plate with the incorporation of a flexible coupling between the motor and the plate.
The Floor Grinder has a foldable handle which enables it to be easily transported in the trunk of most small vehicles, the below picture for your review:




2.Specification


Model Spec.	GTG280
Rated Voltage	220V
Power	2.2KW/3HP
Speed	710rpm
Plate Type	Standard 3pcs 175mm Grinding Disc or Grinding Plate
Plate Bolt Types	M12x25 Countersunk socket head
Packing Size	700mmx440mmx770mm
Weight	78kg
Quantity	145pcs./40 container                 70pcs./20container

3.Operation Instructions

The Floor Grinder is designed to be used either wet or dry. If the floor is being ground dry, ensure a suitable industrial vacuum is connected and that operator is wearing suitable breathing respiratory equipment.

Starting the Grinder
Check the grinding plate being used is suitable for the material being ground and that they are correctly balanced.
Check that the grinding plate being used are in good order and properly attached, with all countersunk bolts firmly in place. Check this occasionally during use, as they can work loose during operation.
Check that the grinding plate is adjusted so that it sits level on the ground.
Check that all nuts and bolts on the folding handle latch are tight and firm.
Raise the grinding plates from the floor.
Start the motor by pressing the black switch on the starter box.
Lower the grinding plate and commence grinding.

Stopping the GrinderDe-press the red stop button on the starter box.

4.Application

Rough surface grinding different kinds of concrete and masonry materials with superior efficiency.



5.Delivery time

2 week for sample order, and  2-3 weeks for batch orders.




6.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
