• Model NO.：JC1525-5 Axis
• Certification：CE, ISO, BV, TUV
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Name：CNC Router Italy for Large Marble Sculptures,Statu
• Usage：Large Scale Complicated 3D Model, Sculptures,
• X,Y,Z,a,C Axis Working Area：1.5m Width*2.5m Length*1.2m Height
• Table Surface：T-Slot Table with Clamps
• Tool Magazine：Disk Type Automatic Tool Changer, with 8PCS Tool M
• 5 Axis Head：2axis Head Double Column, Hsd Brand
• Spindle：Italy Origin Hsd 10kw
• Driving System：Japan Yaskawa Servo Motor and Driver
• Operating System：5axis Taiwan Syntec
• Software：Powermill
• Transport Package：Wooden Case Package
• Specification：working size 1.5m width, 2.5m length, 1.2m height
• Trademark：CHAODA
• Origin：China
• HS Code：8464909000
• Production Capacity：1200sets,Year

Basic Info.

Model NO. JC1525-5 Axis Certification CE, ISO, BV, TUV Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Name CNC Router Italy for Large Marble Sculptures,Statu Usage Large Scale Complicated 3D Model, Sculptures, X,Y,Z,a,C Axis Working Area 1.5m Width*2.5m Length*1.2m Height Table Surface T-Slot Table with Clamps Tool Magazine Disk Type Automatic Tool Changer, with 8PCS Tool M 5 Axis Head 2axis Head Double Column, Hsd Brand Spindle Italy Origin Hsd 10kw Driving System Japan Yaskawa Servo Motor and Driver Operating System 5axis Taiwan Syntec Software Powermill Transport Package Wooden Case Package Specification working size 1.5m width, 2.5m length, 1.2m height Trademark CHAODA Origin China HS Code 8464909000 Production Capacity 1200sets/Year

Product Description

We are factory professional produce 3 axis,4 axis,5 axis rotary cnc routers,cnc laser,3D scanner etc.
Can do all kinds of 2d,3d,4d flat decoration products and big rotary 3d sculptures,pillars,moulds etc.
Machining on wood,foam,stone,marble,granite,plastic,PVC,composite boards,acrylic,glass,aluminum and many other material
Welcome for your inquiry and visit our factory!

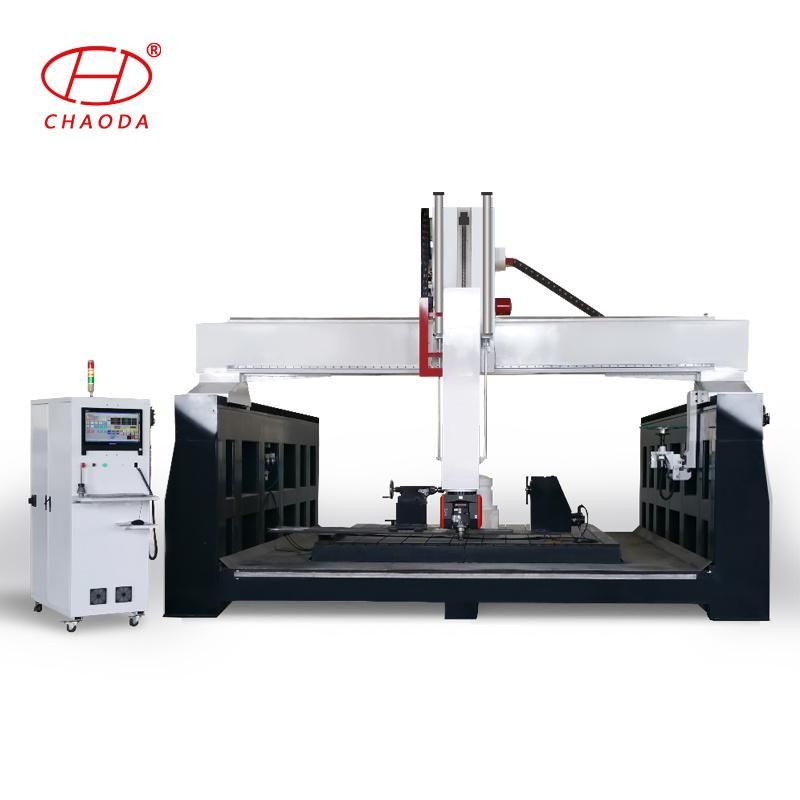

cnc router italy for large marble sculptures,statues,pillars

Application:
1).Stone Material: Artificial stone, Marble, Granite, Ceramic Tile,milestone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, grindstone,Jade etc.
2).Wood Material:Solid Wood,Particle board,MDF,Wood Panel,Glass, Furniture(Door lock holes and edges), wave board screen,Calligraphy tablet etc.
3).Acrylics material:Acrylics,Light guide plate and diffuser plate
4).Thermoplastic Elastomers:Rubber, Plastic, Resin and Foam Products
5).Engineering Plastics Material:PVC,ABS,PE,PF,PU
6).Compound material:FRP, Artificial Stone, Compact Grade Ceramic Chip and Laminates,Carbon Fiber Panel
7).Light Metal Materiall:Aluminum extruded, Copper and Aluminum Plates

Model No.: JC1525-5 Axis


Specification( specified production cnc machines as your requests)

Model No.	JC1525-5 Axis
X,Y,Z,A,C axis working area	1.5meter width×2.5meter length×1meter height × ±120° × ±245°
Table surface	T-slot table with clamps
X structure	Helical rack and pinion,Taiwan HIWIN linear square rail
Y structure	Helical rack and pinion,Taiwan HIWIN linear square rail                            Y double motor drive
Z structure	HIWIN ball screw,Taiwan HIWIN linear square rail
Tool magazine	Disk type automatic tool changer, with 8pcs tool magazine
5 axis head	2AXIS HEAD DOUBLE COLUMN,ITALY HSD
Spindle Power	2AXIS HEAD DOUBLE COLUMN,ITALY HSD
Spindle Rotating	0-24000rpm/min
Operating System	5axis Taiwan Syntec
Working Mode	Japan YASKAWA Servo motor and Drivers
Inverter	Taiwan Delta Inverter
Programming Software	Powermill
Voltage	AC380±15%,50HZ
Oil System	Automatically Lubrication System
Command Code	G code(*uoo,*nc,*mmg, *plt)
Net Weight	7500KG
Spare Parts	1 Software CD,1 Education CD,1 Data cable,1 Power cable,24Tools,2 Wrenches
Training	2-3days free machine training and software training in our factory

Sample Pictures:




Other related machines,
1)high Z axis 4 axis cnc router
2).4 axis 3d sculptures cnc router,specially for produce big sculptures,animals,pillars etc

Welcome for your inquiry!
Will providing you most suitable cnc machine solutions!
