Dual Drive Block Cutting Machine Stone Cutting Machine Factory
Fujian Xianda Machinery Co., Ltd.- After-sales Service：One Year for Spare Part
- Warranty：One Year
- Type：Bridge Saw Cutting Machine
- Usage：Ceramics, Concrete Curb, Granite, Marble, Onyx Onyx Limestone Sandstone
- Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
- Source Voltage：380V
Base Info
- Model NO.：DQCM-26-75-A,B
- Automation：Automatic
- Cutting Ability：High Speed
- Control：Micropcomputer
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
- Blade Diameter Range：φ1650-2500mm
- Max Processing Length：3600-2700mm
- Max Processing Width：2200mm;3300mm
- Max Lifting Stroke：1150mm
- Power of Main Motor：90kw(Standard);110kw(Customized)
- Gross Power：105(125)Kw
- Outline Dimension：8000*5400*3800mm;8000*6500*3800mm
- Gross Weight：22500kg;23500kg
- Guide Pole Diameter：200mm
- Shaft Diameter：120mm
- Crossbeam Size：820*950*7500mm
- Sidebeam Length：4500;5600mm
- X Axis Moving Mode：Dual Reducer
- Y Axis Slicing Mode：Screw Lead+Dual Nut
- Water Consumption：25m³,H
- Transport Package：Plastic Package, Suitable for Sea Transportation
- Specification：8000*5400*3800mm; 8000*6500*3800mm
- Trademark：Xianda
- Origin：Fujian, China (Mainland)
- HS Code：84641080
- Production Capacity：1000set Per Year
Description
Overview

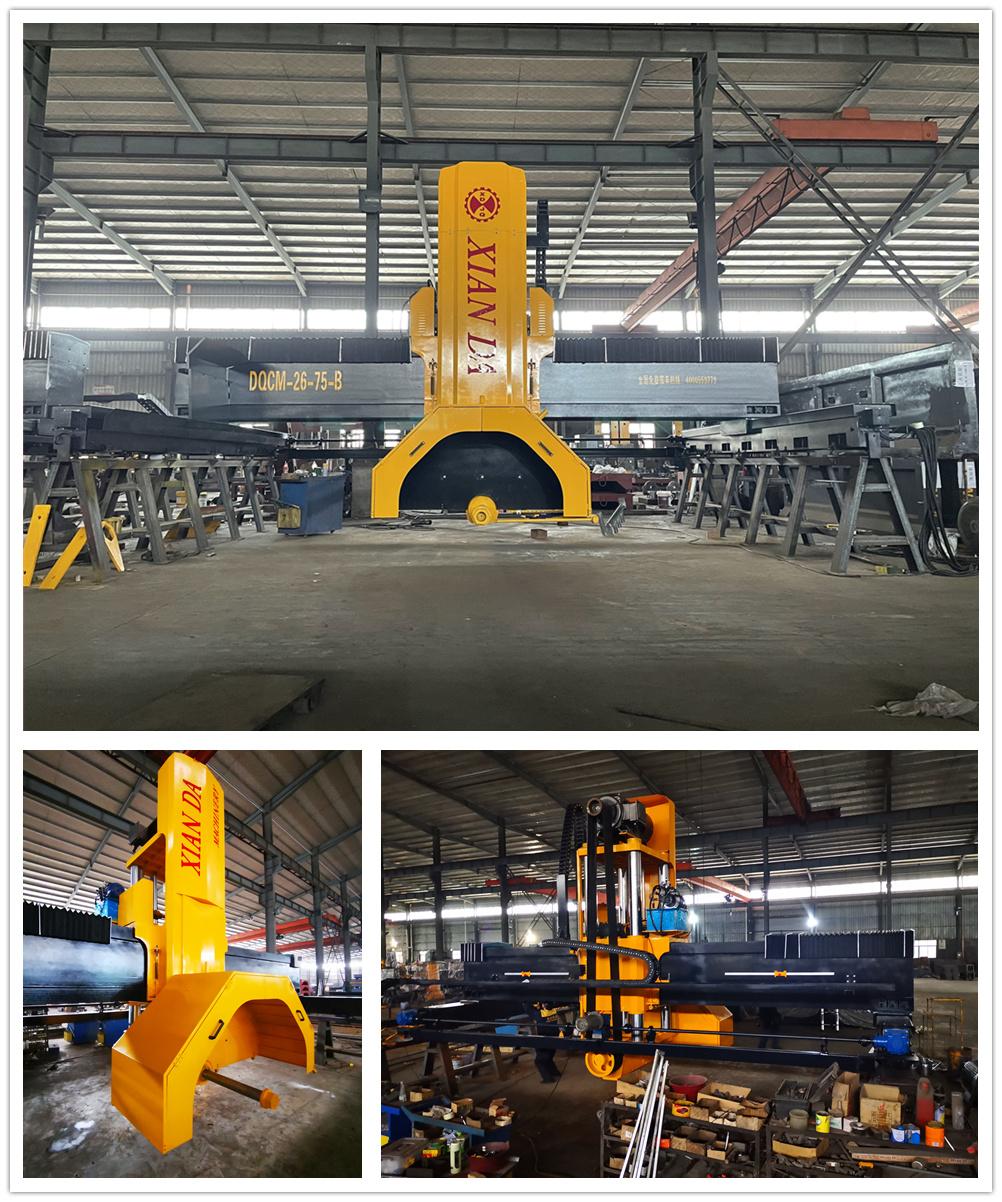

Detailed Photos
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacturer?
A: Yes,that we are the stone machinery factory for over 30 years.
Product ParametersMore ProductCompany Profile
Certifications
FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacturer?
A: Yes,that we are the stone machinery factory for over 30 years.
