• Production Capacity：500000pieces a Year
• Package size per unit product：1200.00cm * 1200.00cm * 1800.00cm
• Gross weight per unit product：1000.000kg

Basic Info.

Production Capacity 500000pieces a Year

Packaging & Delivery

Package size per unit product 1200.00cm * 1200.00cm * 1800.00cm Gross weight per unit product 1000.000kg

Product Description

Product Description

Description

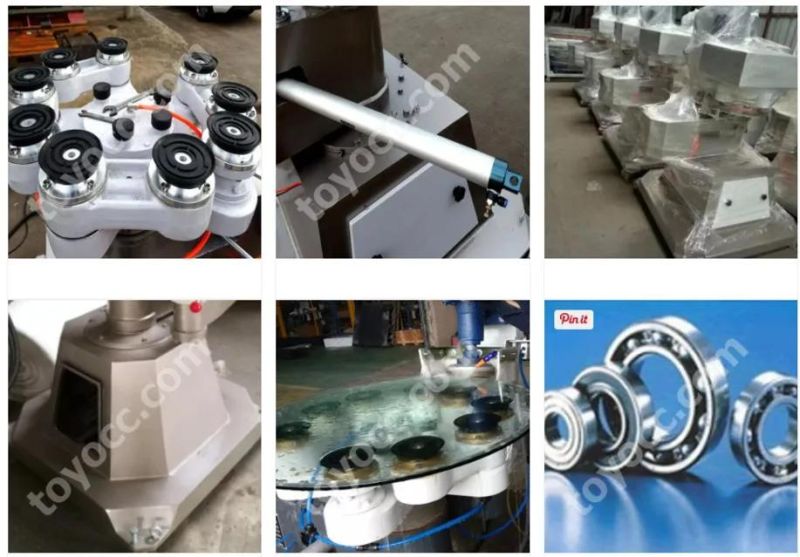

A Shaped glass edging machine is suitable for processing round, oval, and irregular-shaped glass. It could make out the round edge, duck edge, square edge, and bevel edge. The machine base is made of integral castings, and other structures are made of high-strength cast iron. The overall structure ensures the stability of the working. The working platform adopts a vacuum pump to absorb the glass, the motor drives the working platform and then makes the glass sheet rotate and be polished. What's more, the working speed could be adjusted according to the demand.



This machine can be equipped with cylinders, which can be used for rough grinding, fine grinding, and polishing of simple shapes of glass.



Features

• Easy to operate

• Waterproof

• Stable working platform

• Small body, space-saving

• Customized color

 Parameters

Technical Parameters	TYJT-G1
Space	1200*1200*1800mm
Net Weight	1000kg
Glass Processing   Thickness	3-25mm
Angle	0-15 degree
Max Bevel Surface Width	35mm
Rotary diameter of glass	100-2100mm
Speed	0.5-2.5r/min
Voltage	380V, 50HZ, 3 Phrase
Power	3kw

 Note: The type and quantity of equipment grinding heads can be adjusted according to customer needs, and the specific speed depends on the edging requirements and the thickness of the glass.
Packing List

No	Item	Unit	Quantity
1	Main Engine	pc	1
2	Water Tank	pc	1
3	Working Platform	pc	1
4	Motor	pc	2
5	Water Pump	pc	1
6	Operation Manual	pc	1

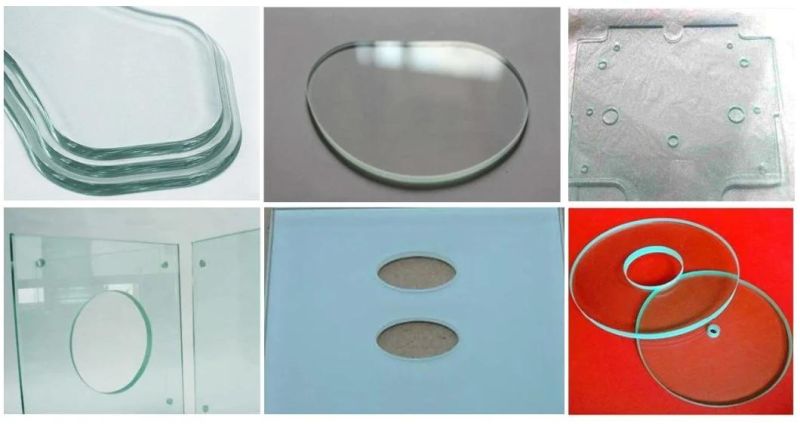

 Workpieces

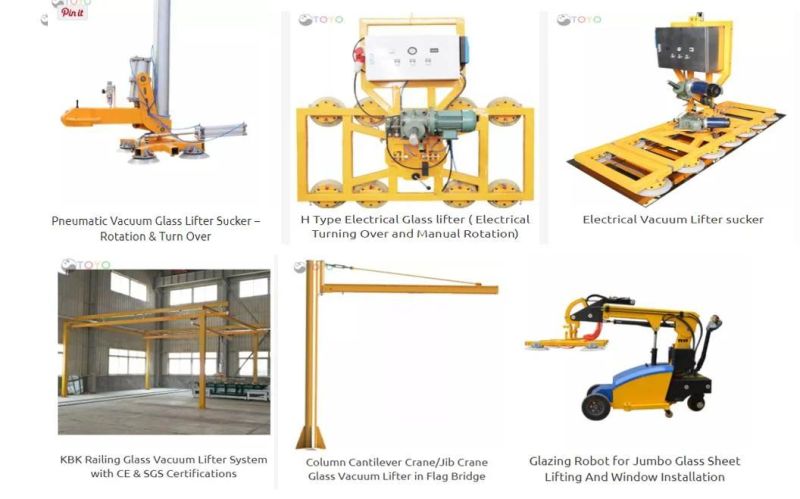

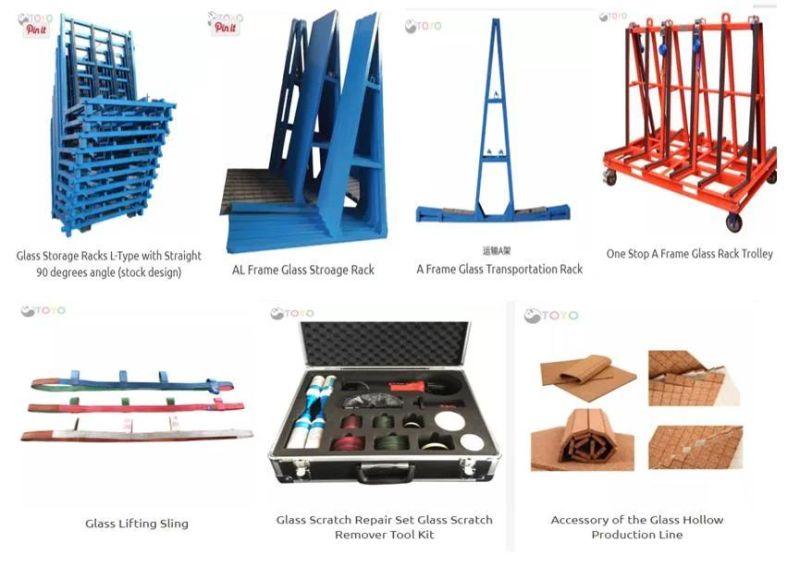

More Products
Company Profile
Founded by two metal equipment industry-leading companies in 2017, Qingdao TOYO Industry Co., Ltd is specialized in developing the glass machine supplying business.
