(QZQ-900/1200) Hydraulic Bridge Cutting Machine for Granite & Marble
Fujian Wanlong Diamond Tool Co., Ltd.- Type：Bridge Cutting Machinery
- Usage：Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Stone Cutting Machine
- Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Marble Cutting Machine
- Source Voltage：380V
- Automation：Semi-automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：QZQ-900,1200
- Control：Artificial
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, TUV
- Quality：High Performance
- Feature：High Performance
- Type1：Bridge Cutting Machine
- Cutting Life：Long Life and High Efficiency
- Price：Competitive and Best Price
- Use：Wet Cutting
- Max. Diameter of Blade：1200mm
- Cutting Tabletation Range N：0-360°
- Water Consumption：4
- Main Motor Power：18.5kw
- Transport Package：Carton Box or Wooden Case
- Specification：QZQ-600,1200 bridge cutting machinery
- Trademark：wanlong
- Origin：Quanzhou City China
- Production Capacity：10sets,Month
Description
Basic Info.
Model NO. QZQ-900/1200 Control Artificial Certification API, CCC, UL, SONCAP, GOST, ISO, CE, TUV Quality High Performance Feature High Performance Type1 Bridge Cutting Machine Cutting Life Long Life and High Efficiency Price Competitive and Best Price Use Wet Cutting Max. Diameter of Blade 1200mm Cutting Tabletation Range N 0-360° Water Consumption 4 Main Motor Power 18.5kw Transport Package Carton Box or Wooden Case Specification QZQ-600/1200 bridge cutting machinery Trademark wanlong Origin Quanzhou City China Production Capacity 10sets/MonthProduct Description

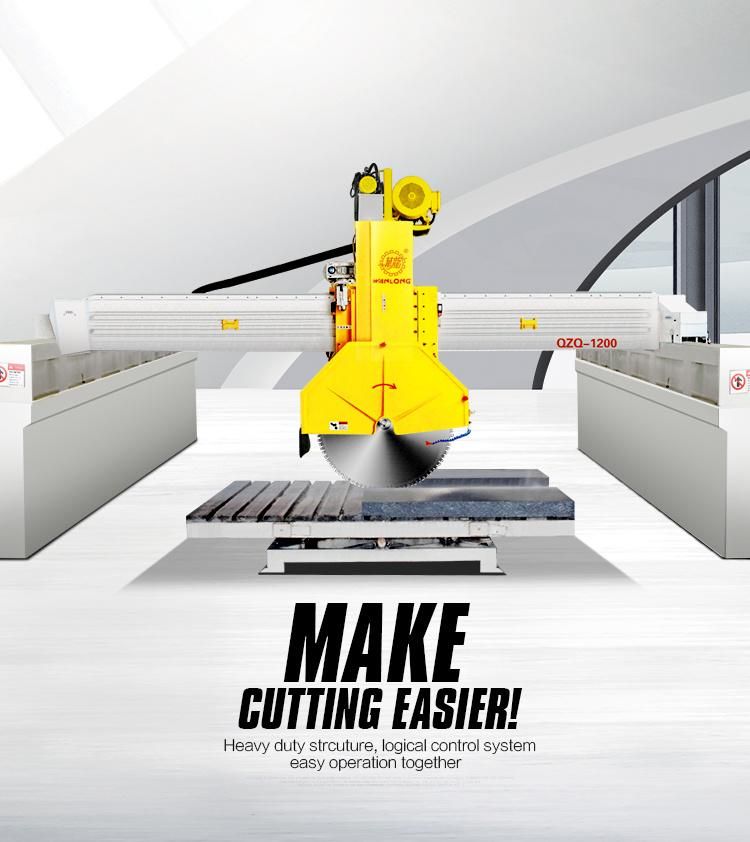

QZQ-600/1200 Bridge Type Edge Cutting machine(medium size)equipped with 360 degree rotary table adopts wide-span bridge type structure. Horizontal stone slicing can be achieved by moving the girder. The maximum blade vertical stroke can be up to 3.6M with flexibility in rotation, recise in positioning, and stability in operation. Themainframe of the machine adopts imported frequency transducer to achieve stepless adjustment of cutting speed. It is applicable for cutting valuable tombstones.Technical parameters QZQ-600/128
Max. Diameter of blade mm 600-1200
Blade vertical stroke 500
Cutting tabletation range n 0-360°
Water consumption 4
Main motor power kw 18.5
Table dimension (L*W) mm 3000*1600
Overall dimension (L*W*H) mm 6300*4500*3200
Max cutting dimensions (L*W*H) mm 3200*2000*450
Approximate weight. Kg. 6500

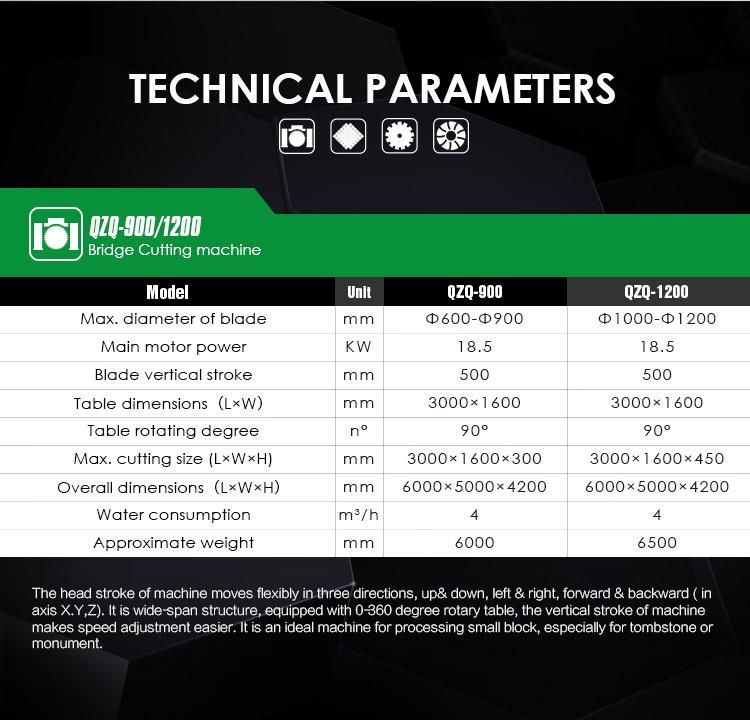

| QZQ-900 | QZQ-1200 | ||
|---|---|---|---|
| Max. diameter of blade | mm | 600-900 | 1000-1200 |
| Main motor power | KW | 18.5 | 18.5 |
| Blade vertical stroke | mm | 500 | 500 |
| Table dimensions(L x W) | mm | 3000*2000 | 3000*2000 |
| Cutting table rotation range | n° | 0-360° | 0-360° |
| Max. cutting size(L x W x H) | mm | 3000*1600*300 | 3000*1600*450 |
| Overall dimensions(L x W x H) | mm | 6000*5000*4200 | 6000*5000*4200 |
| Water consumption | m³/h | 4 | 4 |
| Approximate weight | Kg | 6000 | 6500 |
