Building Materials Series Vertical Complex Crusher (PFL-750)
ATAIRAC ENGINEERED PRODUCTS INC(CHINA)- Type：Vertifical Complex Crusher
- Drive：Electric
- Crushing Style：Grinding & Impact
- Compressive Strength (For Crushing)：100-250MPA
- Crushing Degree：Fine Grinding Machine
- Finished Surface：Outer Surface Process
Base Info
- Model NO.：PFL-750
- Certification：CE, ISO
- Condition：New
- Color：Optional
- Capacity：8-20t,H
- Motor Brand：Simens
- Overall Dimension：2370*1100*1300mm
- Max Feeding Size：100mm
- Discharge Size：<3mm
- Transport Package：The Crusher Should Be Processed to Be Rustproo
- Specification：3.6T
- Trademark：ATAIRAC
- Origin：China
- Production Capacity：500units,Year
Description
PFL Vertical Complex Crusher is designed on the basis of the domestic and foreign advanced crushing technology, combining the advantages of roller crusher, vertical impact crusher, impact crusher, cone crusher and other crushing equipment, adopting impacting, squeezing, and grinding theory. The machine features in high crushing ratio and high efficiency and is the leading fine crushing equipment, which performs best when crushing medium hard material with compressive strength no more than 150MPa and water content is no more than 8%. The machine is specially suitable for crushing cement raw material, cement clinker, limestone, gypsum, cement-coal gangue, slag and other fragile material in cement industry, when it cooperates with mill in pre-grinding, the productivity can be increased by 40%.
Product Features1. Cross type crushing ensures high throughput, high through speed, high capacity and low energy consumption.
2. High crushing ratio, large feeding size and tiny discharge size.
3. Stable performance, low noise, small vibration and reliable sealing.

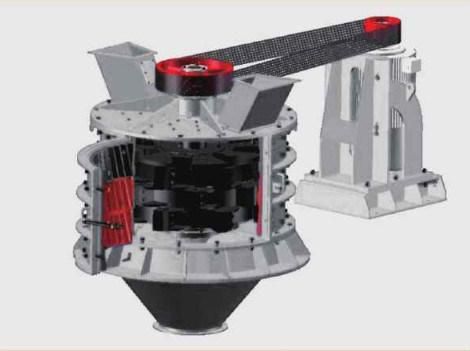

4. Optimized design of rotor forms multistage and successive crushing chamber, which can maximize the utilization of power and space, so as to improve the performance of the machine.
5. The hammer has good performance and long service life by using super abrasion-resistant alloy material.
6. The hammer is adjustable by 4 pieces of adjusting block, which can realize 6 level adjusting and 30mm adjusting space. By this way, the abrasion of hammer is largely reduced.
7. Easy operation, small occupation of space and the installation and maintenance is convenient. 8. Cooperating the utilization with mill can increase the capacity of the mill by about 40%, decrease the system's power consumption by about 30%.
Technical Parameters
Remarks: The above capacity of listed crusher is based on the limestone with bulk density 1.6t/m3. The capacity will be affected by many factors such as material shape and nature,grain composition, feeding method and working conditions, etc. So, the above capacity will be changed on the basis of site condition.
Company Overview
Service
FAQ1. How long is the delivery time of your hydraulic cone crusher?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
The payment terms are L/C or T/T.
3. What's the minimum order quantity of your hydraulic cone crusher?
1 set. Our service philosophy is to satisfy the needs of every client.
4. How long is the hydraulic cone crusher warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included.
5. What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
6. Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
7. Can you give me a solution and quotation?
Of course, to provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
