• Model NO.：BD4015R
• Certification：CE, ISO
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Spindle Motor Power：800W~2.2kw Water Cooling Spindle
• Spindle Speed：6000~24000rpm,Min
• Drive Motor：Servo Motor
• Control System：Nc Studio, DSP
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：4000*1500*300mm
• Trademark：Boiro,Mars
• Origin：China
• HS Code：8464909000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. BD4015R Certification CE, ISO Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Spindle Motor Power 800W~2.2kw Water Cooling Spindle Spindle Speed 6000~24000rpm/Min Drive Motor Servo Motor Control System Nc Studio/ DSP Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 4000*1500*300mm Trademark Boiro/Mars Origin China HS Code 8464909000 Production Capacity 3000 Sets/Year

Product Description

BD4015R Four Axis Rotary Stone CNC Router Machinery/3D Wood CNC Engraving Machines/3D MDF Plywood Acrylic Cutting Machinery/Wood Caving and Engraving Machine
 Keywords:15 years experience of production
                      ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                      Three Brand: Mars, Golden Eagle,Borio



Description:

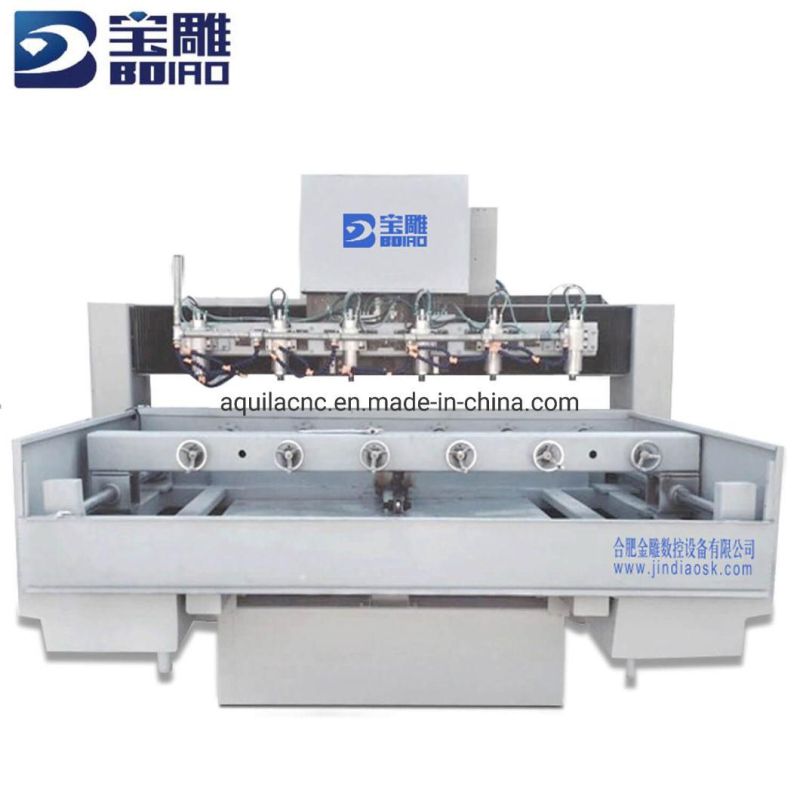

BD4015R Four Axis Rotary Stone CNC Router Machinery/3D Wood CNC Engraving Machines/3D MDF Plywood Acrylic Cutting Machinery/Wood Caving and Engraving Machine with large high speed multi-function multi-head CNC engraving machine can process three-dimensional technology and complex workpiece;It can be used for 360-degree carving of human body,Buddha and crafts,etc.It is suitable for the carving of stone work.And we have engraving machines for wood Mars featured.

Functions:
The function of this machine includes 360 degree carving.

Applicable Materials:
Artificial stone, wood, bamboo, marble, organic board, color plates and other materials.


Application Scope:
Can process three-dimensional technology and complex workpiece;It can be used for 360-degree carving of human body,Buddha and crafts,etc..
Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc

Parameters:

Model	BD4015R Four Axis Rotary Stone CNC Router
Max. Diameter of Workpiece	300mm
Max. Length of Workpiece	1500mm
Spindle Motor Power	800W~2.2KW water cooling spindle
Spindle Speed	6000~24000rpm/min
Max. Travel Speed	20 m/min
Max. Work Speed	15 m/mn
Tool Shank Diameter	Φ 3.175mm,Φ 4mm, Φ6mm, Φ12mm
Drive Motor	Servo motor
Control System	NC Studio/ DSP
Working Voltage	AC380 3PH 50HZ

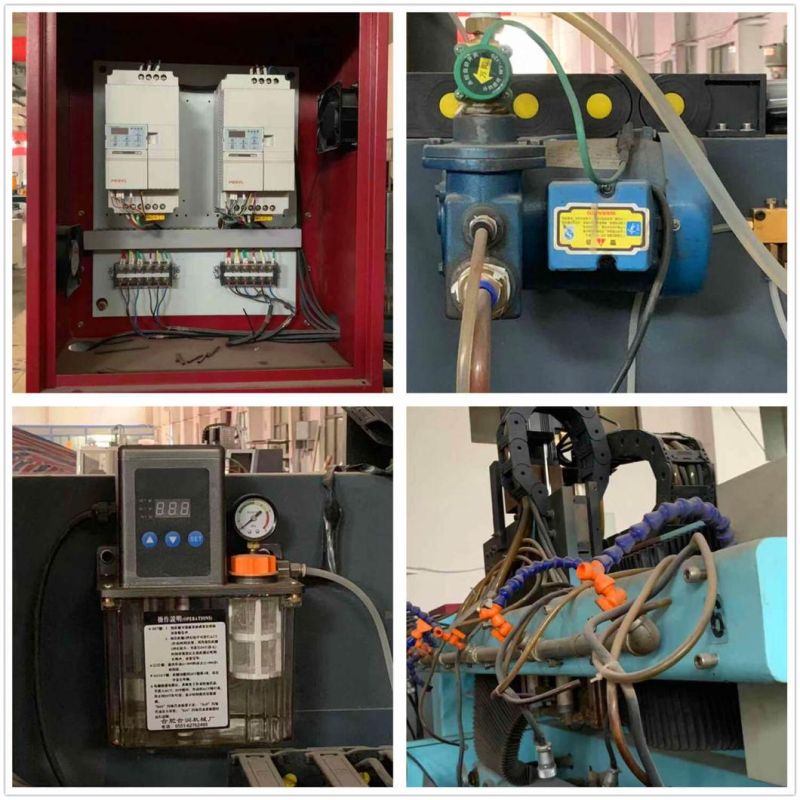

Accessories:


Performance Features:
1.Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
2.Famous brand big torque motor, low noise, large power, high efficiency.
3.Adopt imported square linear guide rail, high speed, high precision, long life.
4.Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength.
5.Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
6.Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..

Samples:

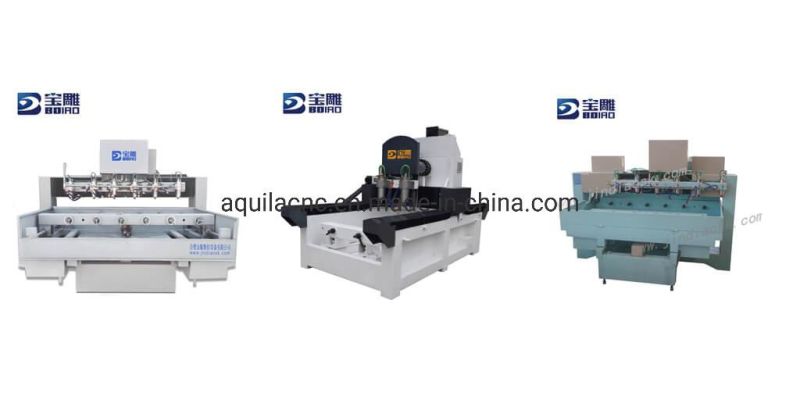

Similar products:
