• Model NO.：4040
• Certification：CE, ISO, API
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Machine Name：Mini CNC Router 4040
• Spindle with Water Cooled：3.0kw Electro-Spindle
• Software：DSP, March 3 or Nc Studio
• Driver：Leadshine Stepping Motor
• X,Y,Z Traveling：400X400X100mm
• Inverter：Fuling or Delta
• Working Table：Vacum Pump or Materails Holders
• Transmission：Z Axis : Ball Screw, Xy : Gear and Rack Rail
• Working Size：400mmx400mm or 600mmx600mm
• Working Area：Customized by Customer Requested
• Spindle：Water Cooled or Air Cooled
• Guild Rails：Taiwan Hiwin Square Rails
• H.S Code：8465990000
• Item：Metal Engraving Machine
• Stepper Motor and Driver：Yako2811 Stepper Driver
• Transport Package：Woodencase
• Specification：400x400x100MM
• Trademark：ALLWIN
• Origin：Jinan, Shandong
• HS Code：8465990000
• Production Capacity：50000

Basic Info.

Model NO. 4040 Certification CE, ISO, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Machine Name Mini CNC Router 4040 Spindle with Water Cooled 3.0kw Electro-Spindle Software DSP/ March 3 or Nc Studio Driver Leadshine Stepping Motor X,Y,Z Traveling 400X400X100mm Inverter Fuling or Delta Working Table Vacum Pump or Materails Holders Transmission Z Axis : Ball Screw, Xy : Gear and Rack Rail Working Size 400mmx400mm or 600mmx600mm Working Area Customized by Customer Requested Spindle Water Cooled or Air Cooled Guild Rails Taiwan Hiwin Square Rails H.S Code 8465990000 Item Metal Engraving Machine Stepper Motor and Driver Yako2811 Stepper Driver Transport Package Woodencase Specification 400x400x100MM Trademark ALLWIN Origin Jinan, Shandong HS Code 8465990000 Production Capacity 50000

Product Description

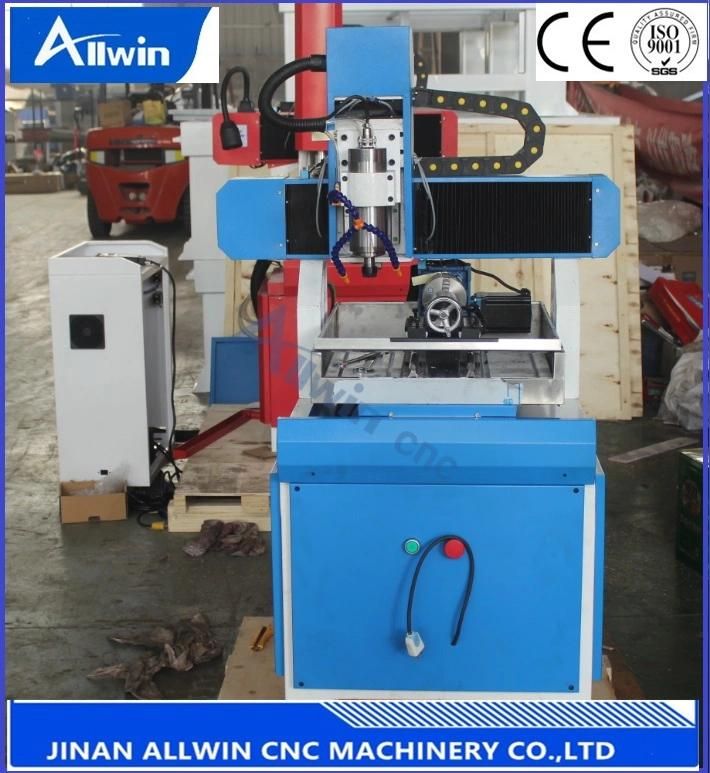

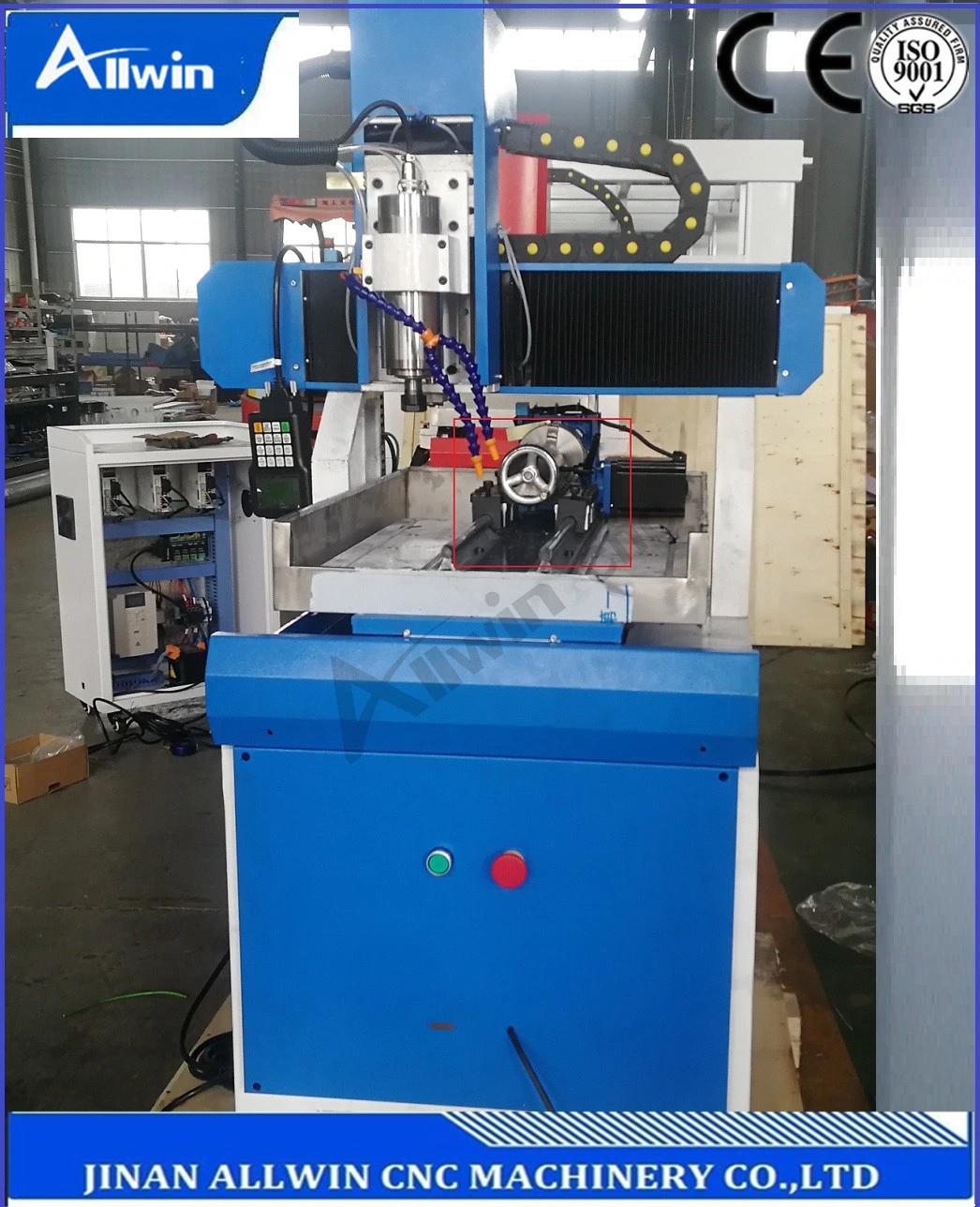

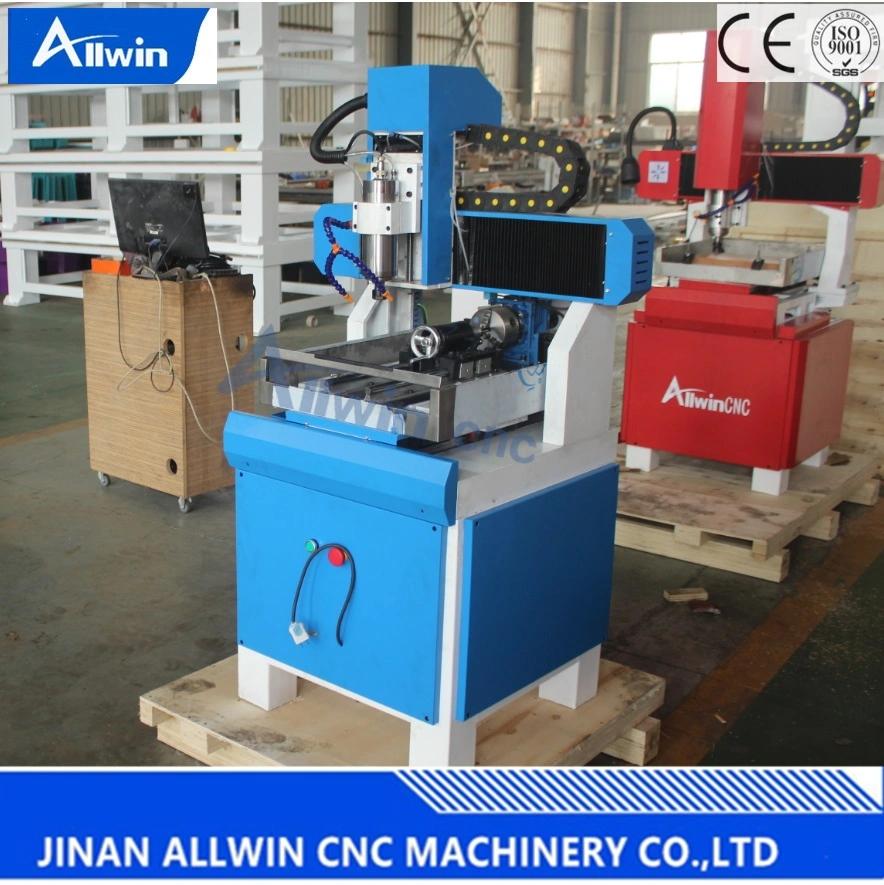

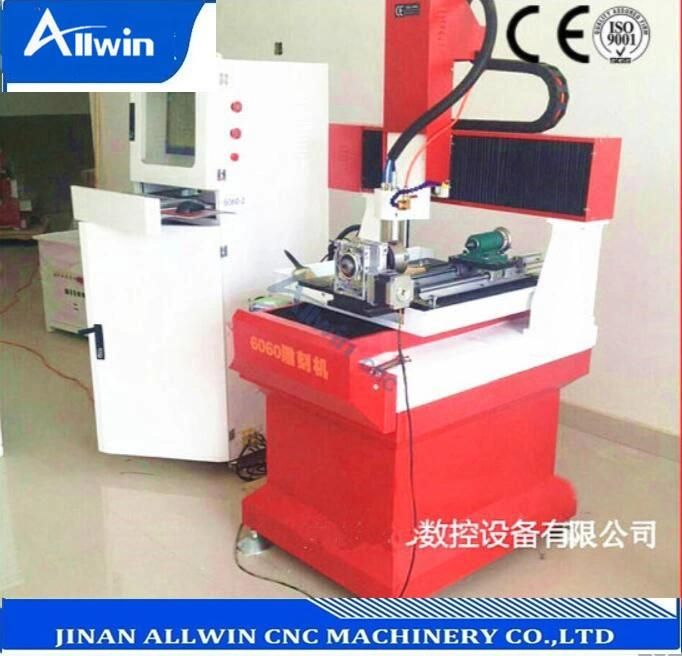

Hot Sale Mini CNC Router 4040 4 Axis CNC Milling Machine with Half surrounded

Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support

Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.

Artwork industry:
In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

Technic specification:
400x400mm Metal Cnc Milling Machine With Half surrounded.

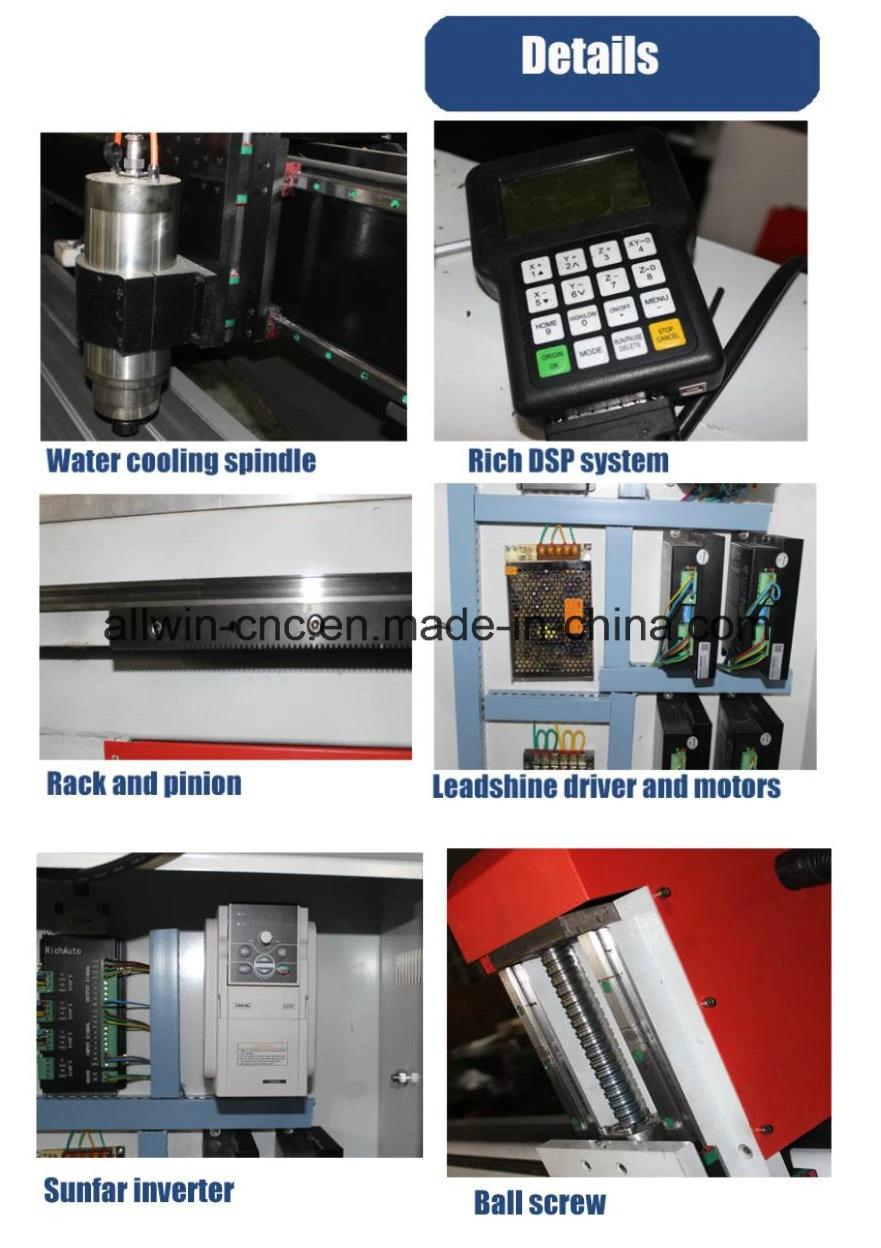

Features:
1. Aluminum grooved and moving table, ideal for machining metal or wooden molds
2. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the Ncstudio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements.

Parameter:

Model:	ALLWIN-4040 CNC ROUTER
Machine body:	Whole cast iron
Guideway:	XYZ-axis use square guideway
Driving mode :	XYZ-axis use ball screw
X,Y-axis working area :	400*400mm
Z-axis working area:	80-100mm
Max. Feeding height:	100mm or bigger
Cut thickness of material:	80mm
Max. Speed:	8000mm/min
Working speed :	0-4000mm/min
Mechanical precision:	0.04mm/300mm
Compatible Software:	Type 3 software , Artcut software , Artcam software
Max. Power consumption:	2.2KW
Power source:	AC220/50HZ
Driver type:	542 prime mover
Memory:	>256M
Spindle:	1.5KW(80mm)or3.0KW(100mm)variable speed , water-cooled motor
Spindle speed:	0-24000rpm
Blade diameter:	3.175mm,4mm,6mm
Control system:	DSP control system
Command:	G code
Running circumstance temperature:	0-45C
Relative humidity:	30%-75%
Optional:	Rotary axis , vacuum table and dust collector

Samples:


Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube

FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
