mono block bridge saw machine for stone cutting

Xiamen Great Base Imp & Exp Co., Ltd.
  • Type：Laser Cutting Machine
  • Usage：Jadestone, Granite, Marble, quartz
  • Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：GBHW-500H
  • Control：PLC
  • Certification：CE

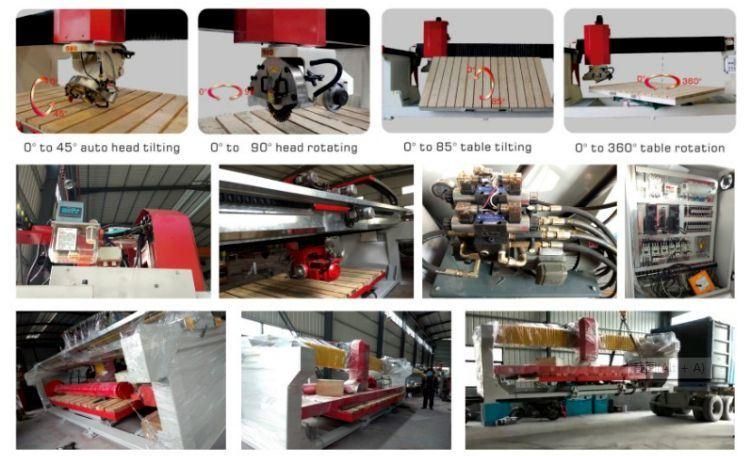

  • function：head can rotate 45 degree
  • PLC：Panasonic
  • Transport Package：Suitable Packing
  • Specification：5800*3250*2300mm
  • Trademark：GB
  • Origin：China
  • HS Code：84641090
  • Production Capacity：30sets,Month

Description

NameUnitGBHW-500HSaw Blade sizemmD.350 to D.500Max cross strokemm3300Max up-down strokemm230Blade Tilting degree°0-60°table max tilting degree°0-85°table rotating degreeº360° and stop at 0°,45°,90°,180°,360°Table sizemm3200*2000Guide rail type of side beam/2pcs Linear Guideway with high precision, one right and one leftGuide rails type of cutter head moving on the crossbeam/2pcs Linear Guideway with high precision, one in the top and one on the front sideGuide rails type of cutter head up/down/Ball screw + 1pc linear guidewayCutter head moving speedmm/min0-6500Main motorkw18.5 (two speed)Main axis speedr/min
High speed:2900; Low speed: 1460machine sizemm5800×3250×2300Total weightkg6100

mono block bridge saw machine for stone cutting
