Diamond Wire Saw for Granite and Diamond Wire Saw Machine
Henan Yugong Machinery Co., Ltd.- After-sales Service：Instuction and Videos, Spare Parts at The Low Cost
- Warranty：24 Months
- Type：Hydraulic Cutting Machine
- Usage：Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Concerete Block
- Application：Construction, Mineral Industry, Stone Industry, Cutting and Coring Company
- Source Voltage：380V
Base Info
- Model NO.：YG-600
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Co
- Product Name：Hydraulic Diamond Wire Saw Machine
- Model：Yg-300
- Min Output Power：33HP
- Shaft Output Speed：350,940,1300r,Min
- Max Wire Length：18m
- Unit Weight of Cutting Machine：64kg
- Main Motor Weight：14kg
- Weight：98kg
- Output Power：22,25kw
- Main Motor Flow：40-100L,Min
- Transport Package：Wooden Case.
- Specification：Hydraulic Diamond Wire Saw Machine
- Trademark：YUGONG
- Origin：China
- HS Code：8464102000
- Production Capacity：1000 Sets,Week
Description

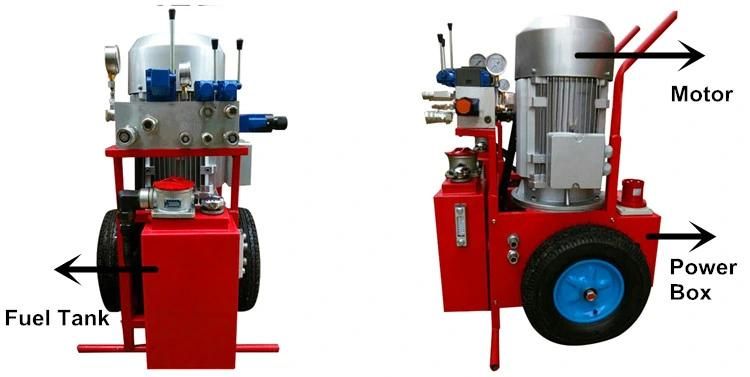

Hydraulic Pump
Wire Driving Type
Hydraulic
Output Power
25 KW
Motor
YG-600TM
Working Voltage
380V50 HZ
Min Output Power
33 HP
Hydraulic Pump Type
Gear pump
Shaft Output Speed
350/940/1300r/min
Main Motor Flow
40-100 L/MIN
Max Wire Length
18 m
Pressure
15-20 Mpa
Unit Weight of Cutting Machine
64 kg
Fuel Tank Capacity
17 L
Main Motor Weight
14 kg
Weight
98 kg
Total Weight
78 kg
Dimention
650*550*1150 mm

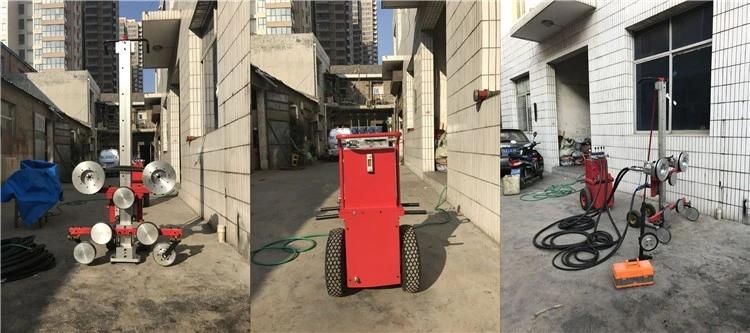

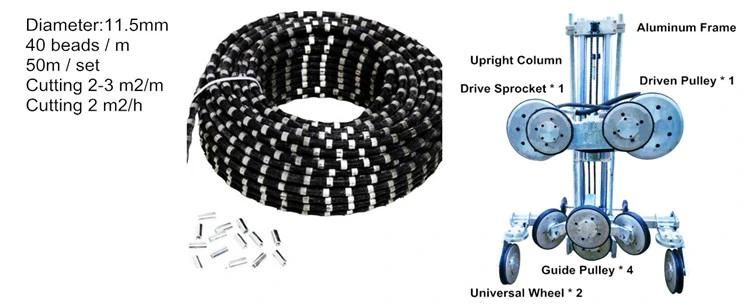

Product Display
Features
1. It can cut and dismantle large-scale reinforced concrete structures without being restricted by the size and shape of the volume to be cut;
2, Can achieve any direction of cutting, such as horizontal, vertical, diagonal direction;
3, Rapid cutting can shorten the duration. Cutting efficiency: about 2m2/h;
4. Solved the problems of vibration, noise, dust and other environmental pollution in the process of conventional demolition construction;
5, Long-distance operation control can achieve underwater, hazardous work areas and other specific circumstances, where general equipment / technology is difficult to complete the cutting.
YG-700TM for your reference. We also YG-800TM, high frequency wire saw, electric wire saw, hydraulic wall saw, hydraulic coring tool, hydraulic splitter for your option. For details, welcome to consult us

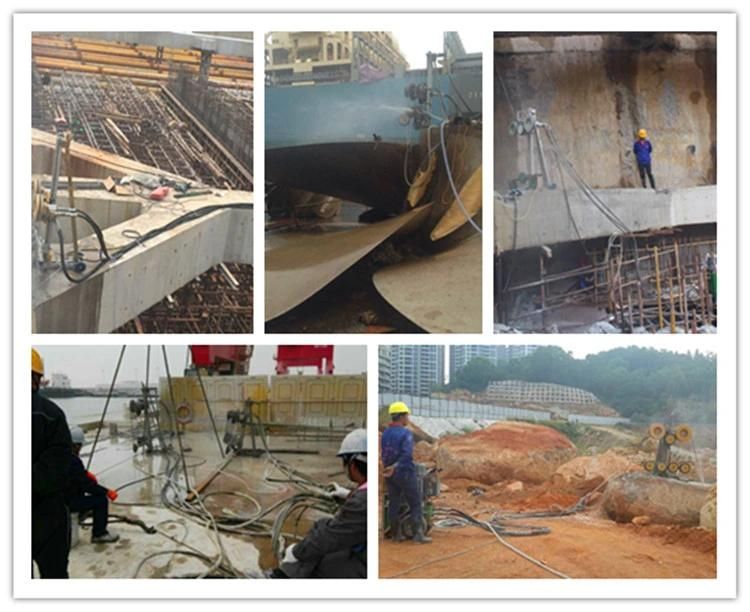

Working Sites
Wire saws are cutting and dismantling equipment for thick concrete and irregular concrete. For example: girders, supports, high-speed rail piers, equipment foundations, and other concrete structures.
If it needs to be partially dismantled, it can only be cut with a wire saw. The method of use is flexible, horizontal cutting and vertical cutting are all possible.
