• Model NO.：HQ400-600-700
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Blade Tilting：0-45 Degree for Miter Cut
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation (Hq400-600)：0-90 Degree (0-360 Degree Optional)
• Table Rotation (Hq7000)：0-360 Degree Stop at Any Position
• Max. Cut Size(L*W)：3200*2000mm
• Max. Cut Thick：110mm,180mm,230mm
• Transport Package：Plastic Packing
• Specification：HQ700Size (L*W*H): 6*5.7*3.5 m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. HQ400-600-700 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Blade Tilting 0-45 Degree for Miter Cut Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation (Hq400-600) 0-90 Degree (0-360 Degree Optional) Table Rotation (Hq7000) 0-360 Degree Stop at Any Position Max. Cut Size(L*W) 3200*2000mm Max. Cut Thick 110mm/180mm/230mm Transport Package Plastic Packing Specification HQ700Size (L*W*H): 6*5.7*3.5 m Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

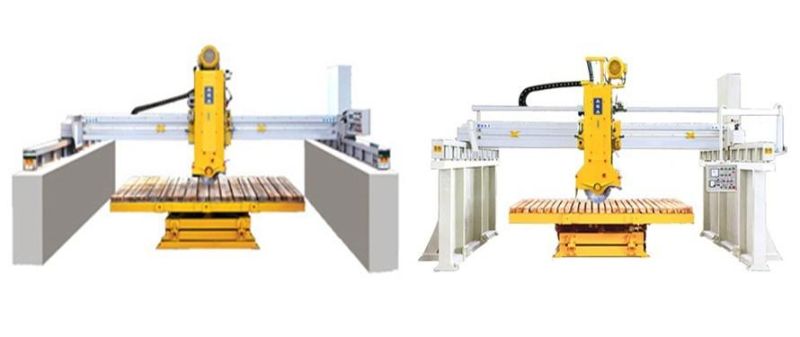

High Tech Good Price Laser Bridge Saw Tile Cutting Machine Stone Cutting Machine
Product No.HQ400-HQ600
The whole cutting machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz.
A good machine for cutting slabs, tiles, kitchen tops, bench tops, etc.

Laser bridge saw specification:

Model	HQ600	HQ400
Blade tilting 45° (Angle Cut Mitered)	N/A	N/A
Table Rotation 90°	Yes	Yes
Table Rotation 0-360°  (stopping at each 45°)	Optional	Optional
Table tilting 0 - 85°	Yes	Yes
Power Of Spindle Motor	18.5kw / 25 HP	15kw / 20 HP
Max Length of Cutting: (Table Size)	3200 x 2000mm / 126"x78"	3200 x 2000mm / 126"x78"
Max Thick of Cutting:	180 mm 7"	110 mm 4"
Steel Walls Included	Optional	Optional

Laser bridge saw features:
1) Table tilting and rotation:

Main structures of the laser bridge saw are made of very strong cast iron and stainless steel for protection. Powered table tilts 0-85 degree hydraulic for easy load of material. It can turn 0°-90°(optional: 0°-360° stopping automatically at 45°,90° and any angle) changing the cutting position easily.

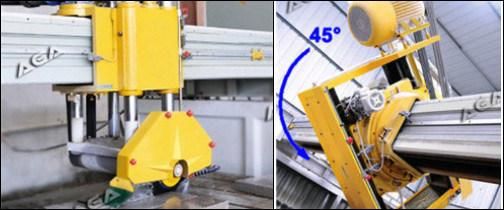

2) Blade tilting for miter cut:

The blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. Blade tilt 45 degree for mitered cuts available for model HQ700.

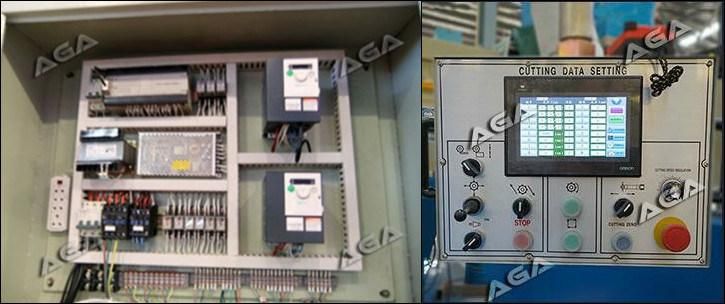

3) PLC system and control panel:
This stone cutting machine is made with PLC standard. Electric system is simple and easy to operate. All functions are operated on the control panel with color touch screen. Electric parts are all from good international brands ensuring stable performance.

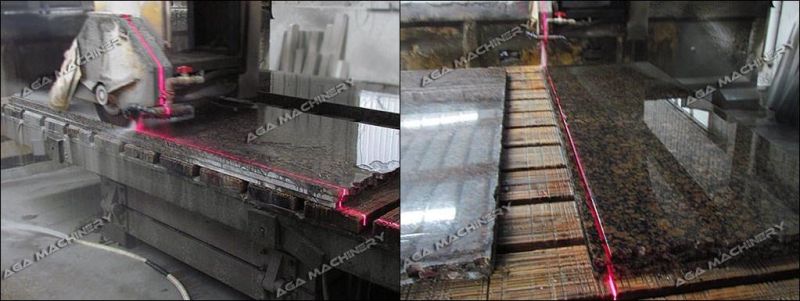

4) Laser guide machine:
This cutting machine is an full automatic laser cutting machine. Laser guide shows the cutting position that makes the cutting easier and make precise cut +/-0.2mm. Cutting slabs, tiles, counter tops highly and perfect.


Guarantee & After Sale Service:
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.



FAQ:
1) Payment:
T/T 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

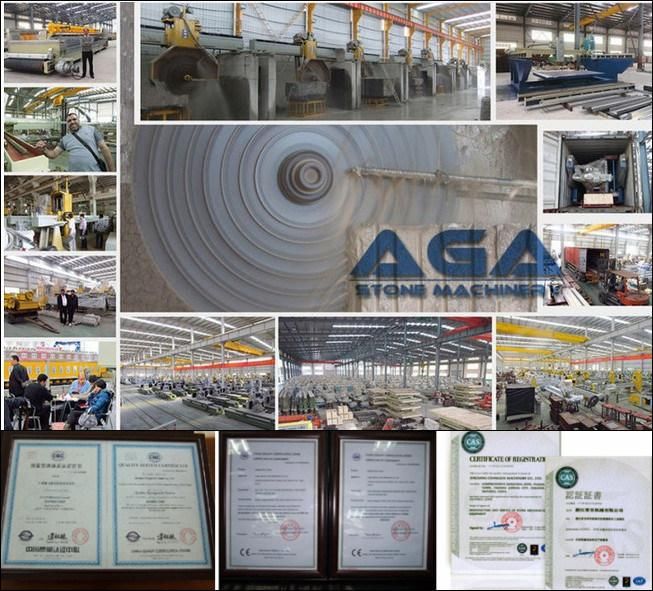

About AGA Machinery:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
