Automatic Stone Column/Baluster Lathe for Cutting/Railing Granite/Marble

Xiamen Aga Import and Export Co., Ltd.
  • Warranty：1 Year
  • Type：Flame Cutting Machine
  • Usage：Granite, Marble
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic

Base Info

  • Model NO.：DYF600
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO, CE
  • Max. Blade Size：600mm(Diameter)
  • Max.No. of Baluster：8 Pieces
  • Baluster Height：1000,1250mm
  • Total Power：31kw
  • Weight：6800kg
  • Longevity：at Least 15years
  • Body Texture：Strong Cast Iron
  • Transport Package：Bubble Wrap in Bulk
  • Specification：4*2*2.7m
  • Trademark：AGA
  • Origin：China
  • HS Code：84609090
  • Production Capacity：100 Pieces , Month

Description

Max. blade diameter600mmMax. cut height1000/1250mmTotal power23.7kwOverall size4100x2000x2700Approximate weight7500kgMax. cut diameter600mm*4pieces   300mm*8pieces


Fetures:

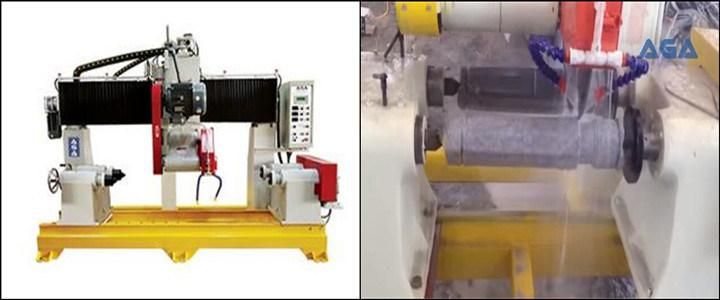

The automatic stone lathe cuts granite marble stones into baluster, ball, stylobate, cap, rail, column guide bar, pillar, banister, handrail etc. There are four cutter heads on the lathe and each head cuts two balusters at the same time, so it is able to 8 balusters efficientlty. Its max blade diameter is 600mm and the max. baluster height is about 1250mm. There are four spindle motors and each one is 7.5kw. The template is easy to be changed for any pattern. A laser sensor tracks the template and guides the cutter heads to make 100% copy cut. It is made of strong cast iron and comes with high quality parts working by computer automatically. The automatic stone lathe with favorable price, good quality and high efficiency has won trust and reputation from our customers.
More Pictures and Working Videos on Http://agastonemachine.en.made-in-china.com





Similar Stone Lathe (SYF1800) for Option
Automatic Stone Column/Baluster Lathe for Cutting/Railing Granite/Marble



Company Description
AGA has been devoting to making machinery for processing and fabricating marble and providing reliable service.The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A., Canada, Europe, Mid East, Egypt, India, etc.Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers obtain the best return on the investment.




Keywords: stone lathe/granite lathe/marble lathe
